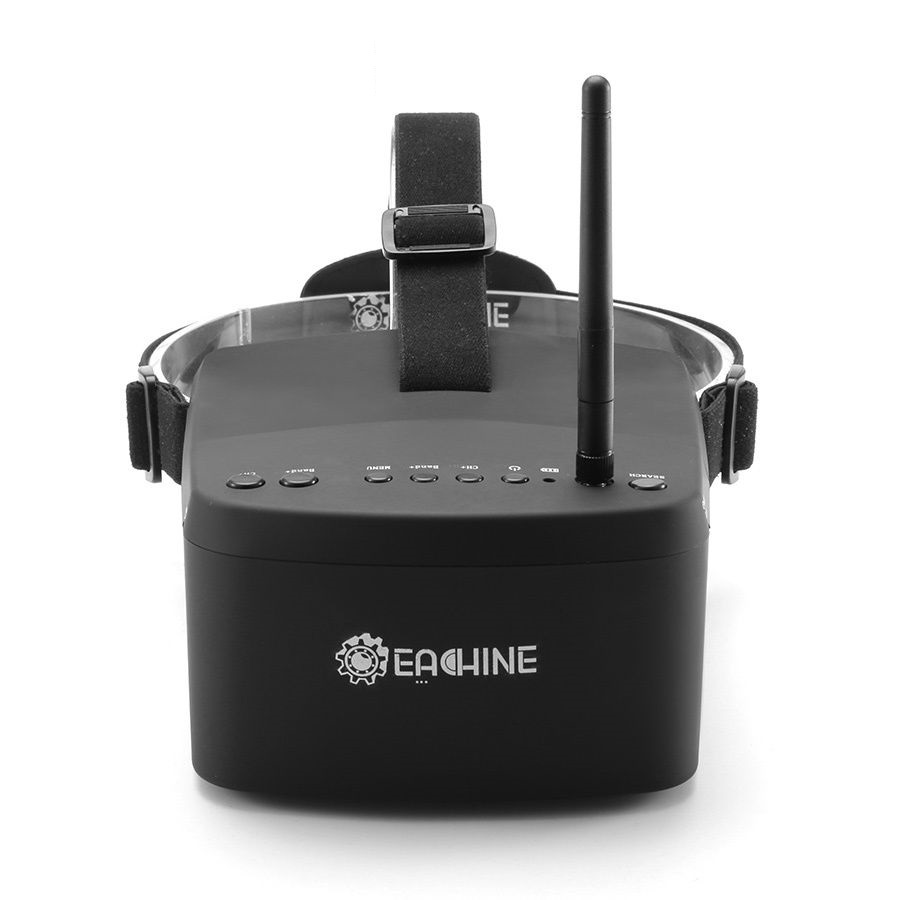

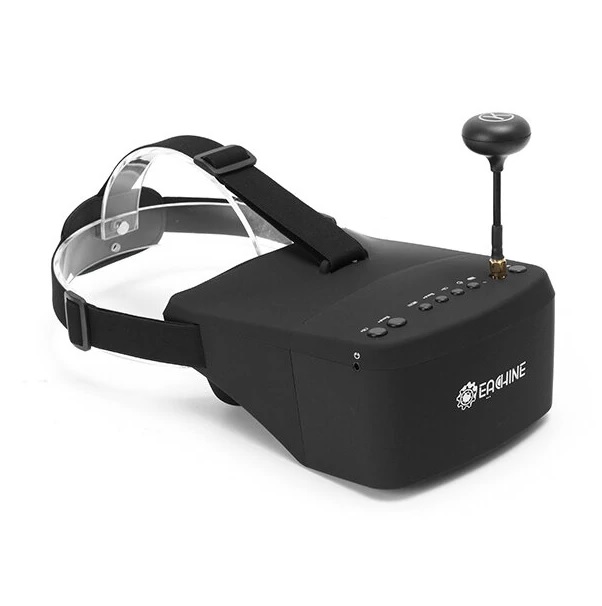

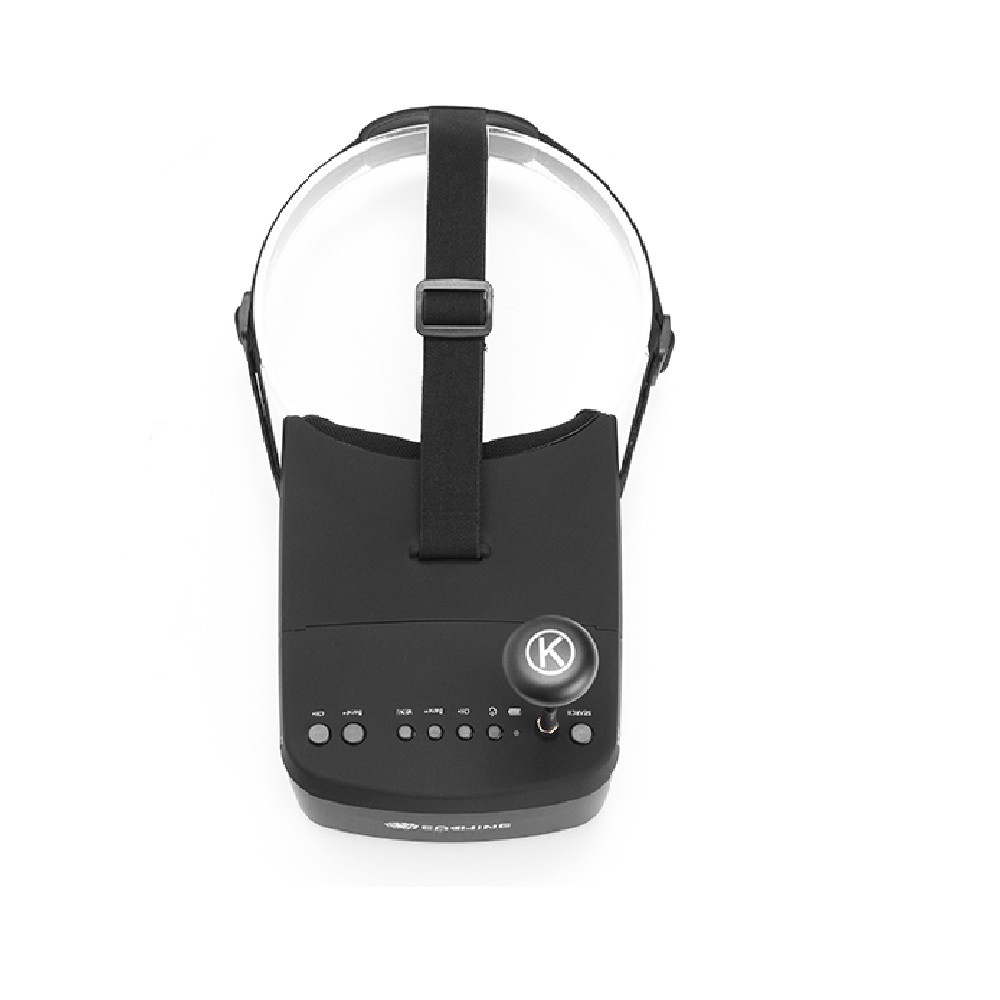

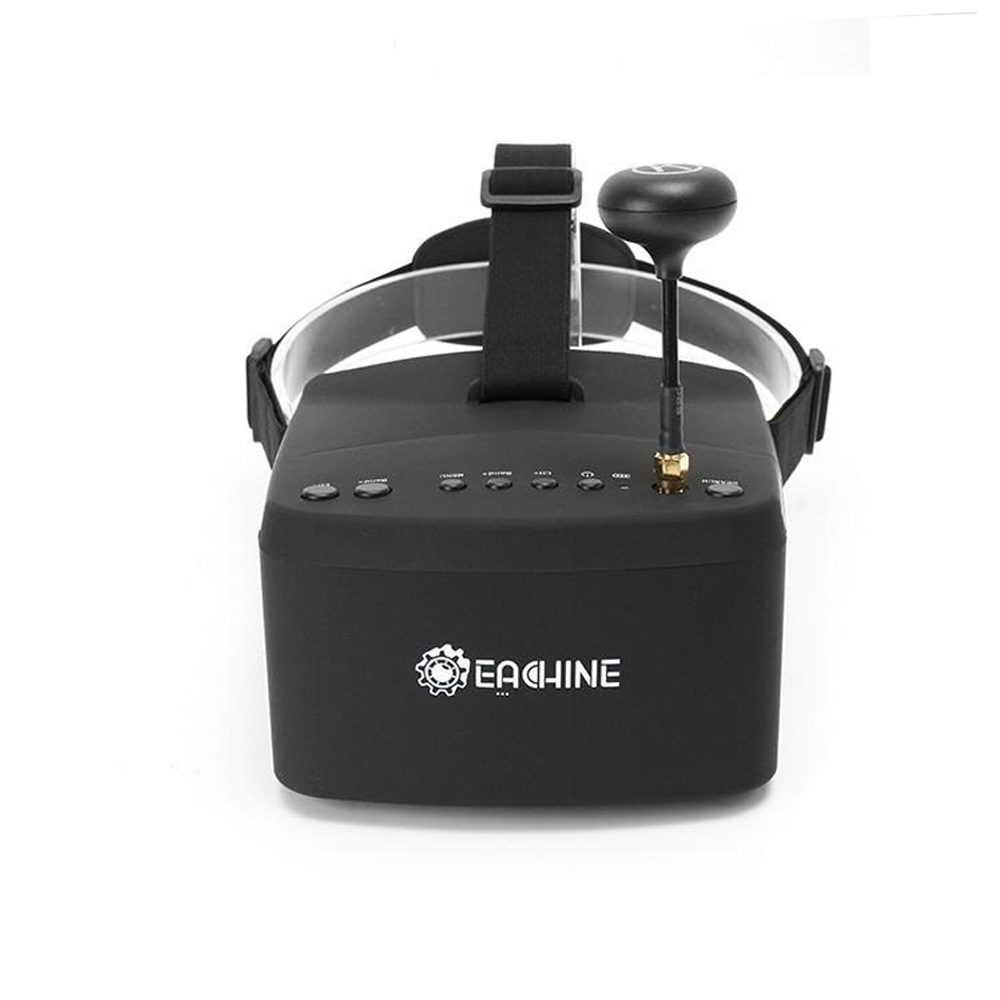

Eachine EV800 5 Inches 800x480 FPV Goggles
The Eachine EV800 is a versatile 5-inch FPV goggle featuring a separable 2-in-1 design, allowing use as a standalone monitor or traditional headset. It integrates a 40-channel 5.8GHz receiver with RaceBand support and is powered by a built-in 2000mAh LiPo battery.
Features
- 5-inch LCD screen with 800×480 resolution and 600cd/m² high brightness for outdoor visibility.
- 2-in-1 separable design functions as FPV goggles or a standalone monitor with tripod mount.
- Built-in 40-channel 5.8GHz receiver with RaceBand and auto-scanning functionality.
- Integrated 3.7V 2000mAh LiPo battery provides approximately 3.5 hours of operation.
- Wide input voltage range (5-12V) supports external power banks or 2S/3S LiPo batteries.
Out of stock
The Eachine EV800 FPV goggles represent a flexible entry-level solution for drone pilots, combining a traditional goggle form factor with a detachable monitor. Its core is a 5-inch LCD panel tuned for FPV racing, offering a 140°/120° viewing angle and high brightness to combat sun glare. The integrated 40-channel 5.8GHz receiver ensures broad compatibility with analog video transmitters, including the RaceBand frequency set.
Designed for extended field use, the EV800 features a built-in 2000mAh battery and accepts a wide 5-12V input for charging or external power backup. The ergonomic housing includes a comfortable face sponge and a 92% transparency lens system to minimize distortion. The separable screen module includes a standard 1/4-inch tripod thread, enabling flexible mounting on radio controllers or tripods for pit crew or spectator viewing.
Additional Information
| Weight | 0.695 kg |
|---|---|
| Dimensions | 16 × 17 × 10 cm |
