DYS X2810 900KV 6S Brushless Motor for Mark4 FPV Freestyle 7inch Long Range
The DYS X2810 is a 900KV brushless motor engineered for 6S LiPo power systems, delivering high torque and efficiency for 7-inch long-range FPV and freestyle quadcopters like the Mark4 frame.
Features
- 900KV rating optimized for 6S LiPo batteries and 7-8 inch propellers.
- High-torque 12N14P stator configuration with N52H magnets for powerful, efficient thrust.
- Rated for up to 50A continuous current and 1095W peak power output.
- Features a 5mm hardened steel shaft and durable construction for reliable long-range flight.

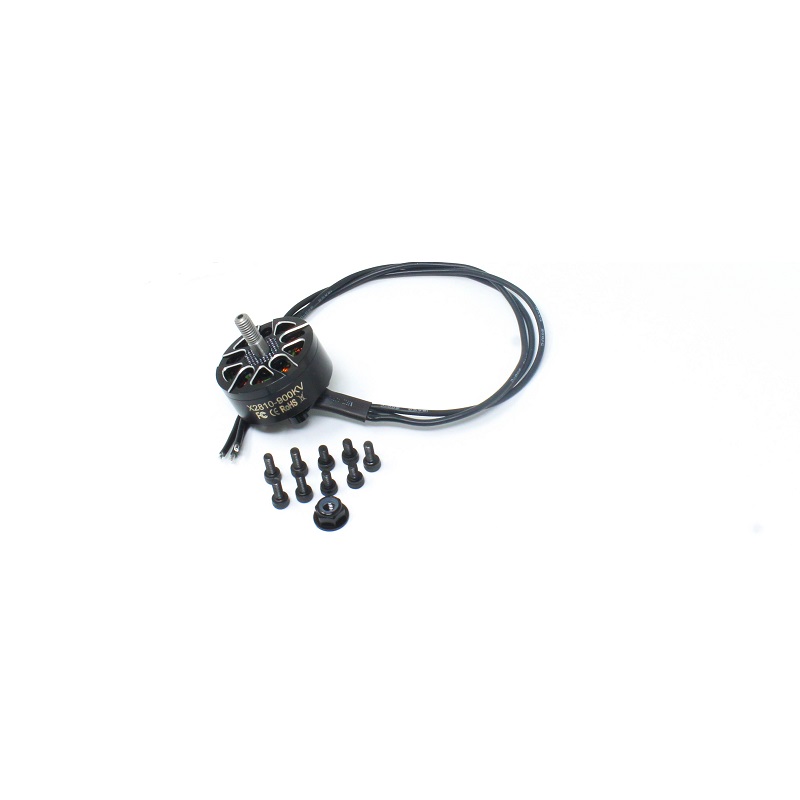

- Low idle current of 0.8A and includes 250mm of 18AWG silicone wire for easy integration.
Out of stock

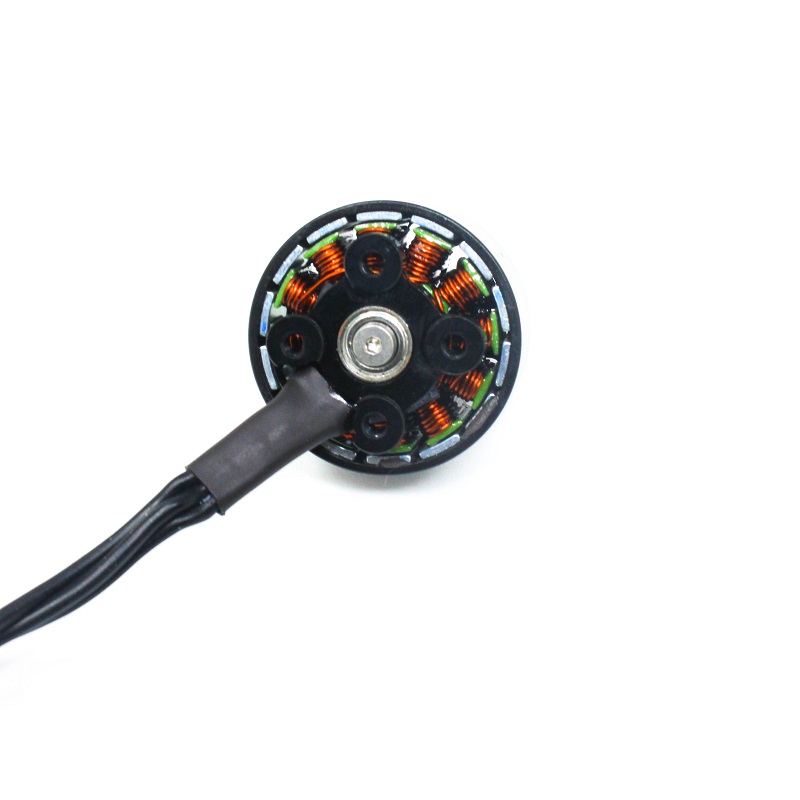

The DYS X2810 900KV brushless motor is engineered for demanding 7-inch long-range and freestyle FPV applications. Its 28mm stator diameter and 10mm stator height provide a robust magnetic circuit, delivering high torque and smooth power across the 6S voltage range. The motor’s 12N14P winding configuration and N52H neodymium magnets ensure efficient operation with minimal cogging, translating to extended flight times and responsive throttle control.
Built with a precision-balanced bell and a 5mm hardened steel shaft, the X2810 maintains structural integrity under high rotational loads. With a maximum continuous current rating of 50A and a peak power handling of 1095W, it is capable of driving large 7-inch and 8-inch propellers for sustained cruise and dynamic freestyle maneuvers. The motor’s 71.2mΩ internal resistance contributes to its cool-running performance, even during prolonged high-thrust scenarios.
Additional Information
| Weight | 0.081 kg |
|---|---|
| Dimensions | 6 × 5 × 4 cm |
