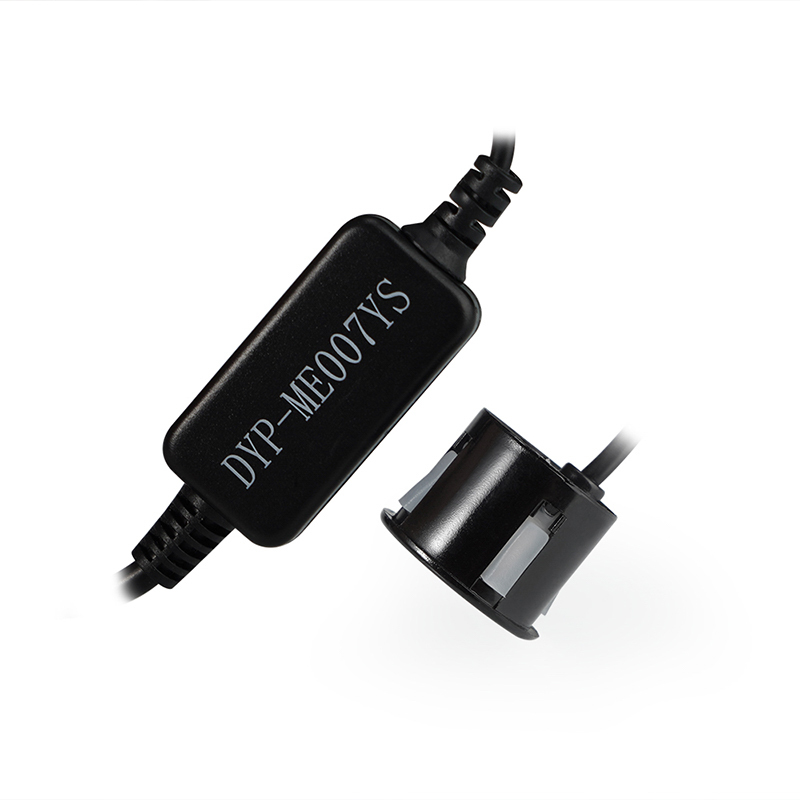

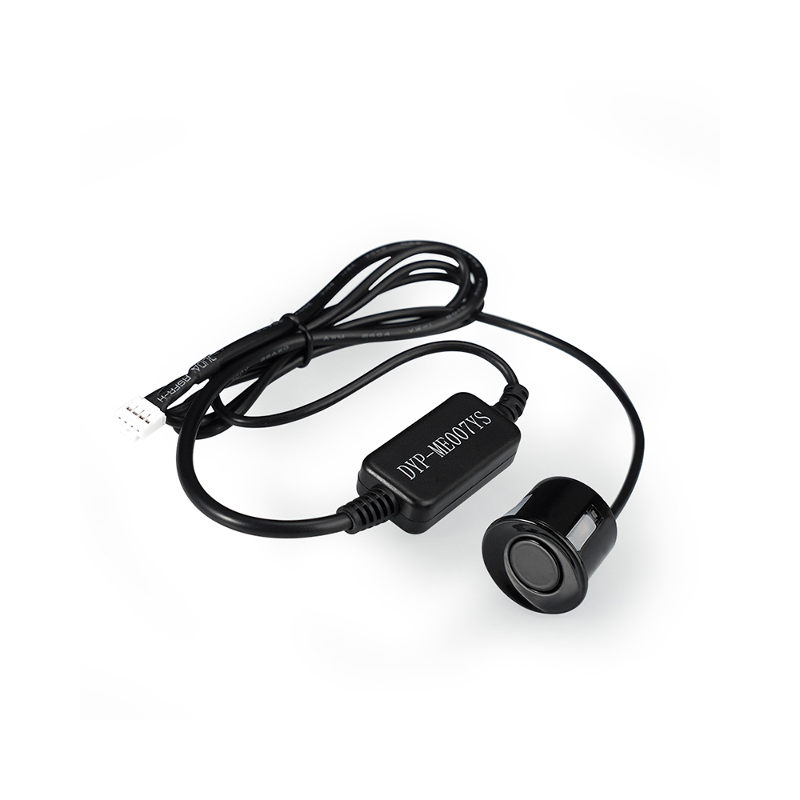

DYP-ME007YS-TX1 V2.0 UART Controlled Ultrasonic Sensor Module - 28–450cm Range
The DYP-ME007YS-TX1 V2.0 is a UART-controlled ultrasonic distance sensor module with a waterproof probe, designed for reliable ranging from 28 cm to 450 cm. It operates from 3.3V to 12V DC, making it compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs via serial communication.
Features
- UART (Serial) controlled interface for easy integration with microcontrollers and single-board computers.
- Waterproof and dust-resistant closed probe design for stable performance in harsh environments.
- Wide operating voltage range of 3.3V to 12V DC with low power consumption (≤8mA operating current).
- High-precision internal ranging algorithm with built-in temperature compensation for accuracy from -15°C to +60°C.
- Extended measuring range of 28 cm to 450 cm with a minimal blind zone.
Out of stock
The DYP-ME007YS-TX1 V2.0 ultrasonic sensor employs a time-of-flight (ToF) principle, emitting sound pulses and calculating distance based on the echo return time. Its closed, waterproof transceiver probe provides IP-rated protection against dust and moisture, ensuring strong environmental adaptability for outdoor or industrial settings. The module integrates a sophisticated signal processing circuit and power management program, delivering stable and accurate measurements.
Designed for system integration, the sensor outputs distance data via a simple UART serial protocol, allowing for straightforward connection to data loggers, control systems, and automation platforms. The internal temperature compensation function maintains measurement consistency across its full operating temperature range, making it suitable for applications subject to thermal variation.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 9 × 5 cm |
