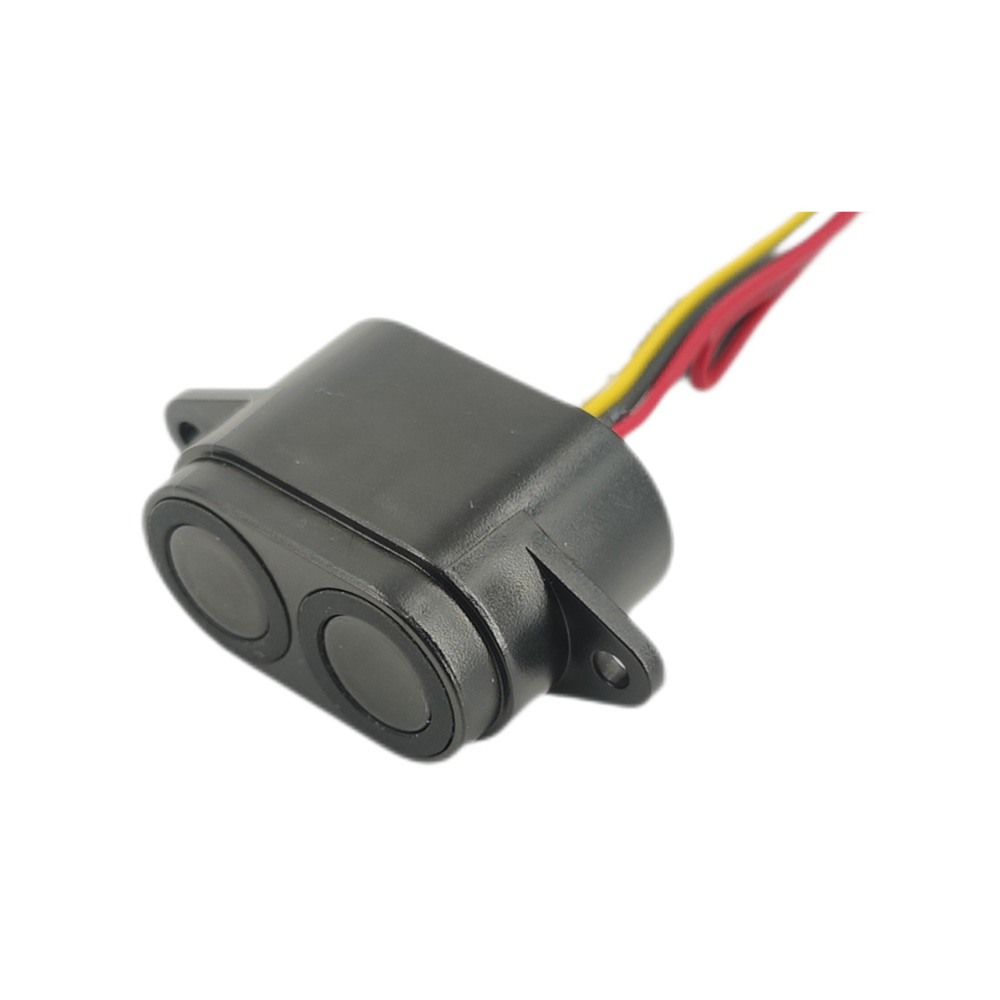

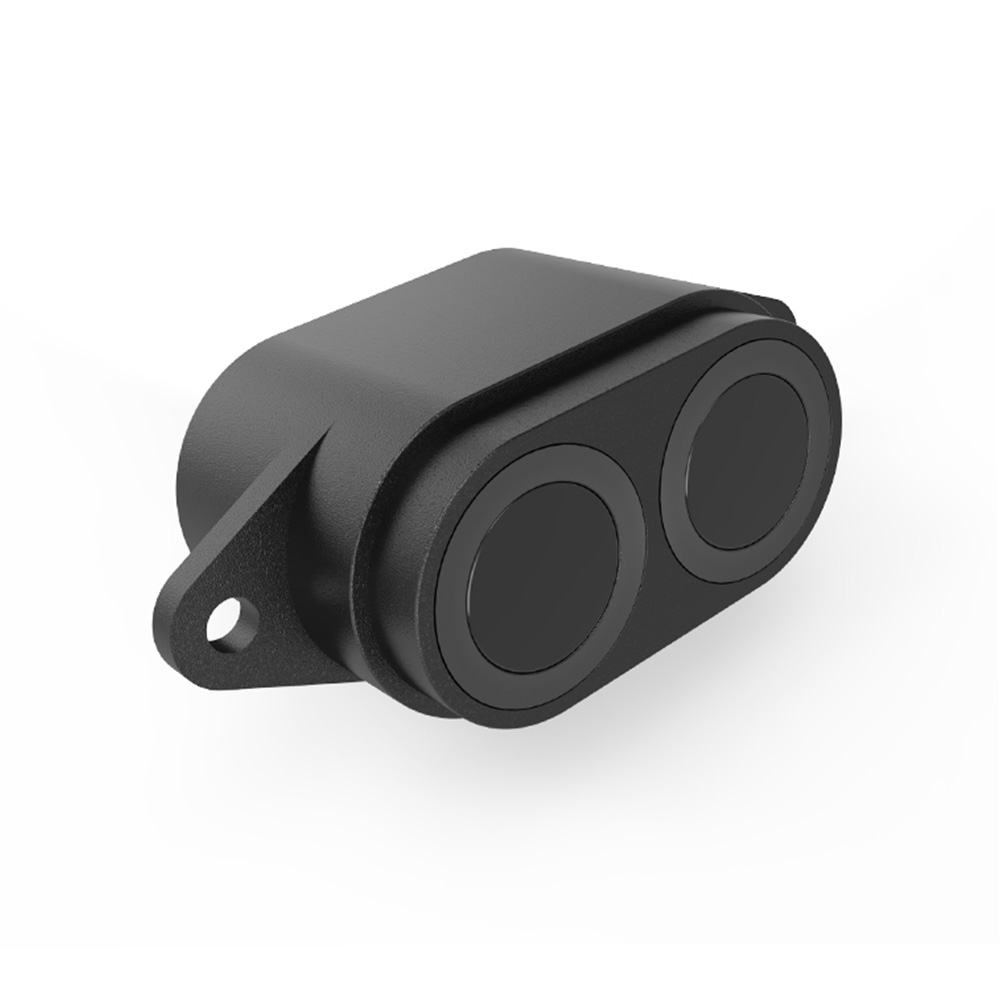

DYP-A22YYUW-V1.0 UART Auto Ultrasonic Obstacle Avoidance Sensor (Object Range 2-300cm)
The DYP-A22YYUW-V1.0 is a UART-interface ultrasonic ranging sensor designed for robotics and automation, offering a 2-300cm detection range with high accuracy. It operates on a wide 3.3-12V DC supply, making it compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for obstacle avoidance and proximity sensing applications.
Features
- Ultrasonic ranging from 2 cm to 300 cm with high accuracy (1% + 0.3%*S)
- UART serial communication interface for easy integration with Arduino, Raspberry Pi, and PLCs
- Wide operating voltage range of 3.3V to 12V DC with low average current (<=9mA)
- Designed with intelligent acoustic filtering to reduce co-frequency interference in noisy environments
- Compact, dust and waterproof design suitable for robotics and industrial automation
Out of stock
The DYP-A22 module employs advanced ultrasonic time-of-flight (ToF) technology for precise distance measurement. Its intelligent acoustic processing algorithm actively identifies and filters out environmental noise and co-frequency interference, ensuring stable and reliable data output even in acoustically complex settings common in robotics and automated control systems.
Engineered for durability, the sensor features a robust, sealed housing with a high waterproof rating, allowing operation across a wide temperature range from -20°C to 65°C. The module’s small blind spot (<=2cm) and configurable parameters—including baud rate, address, and detection angle—provide high installation adaptability and customization for specific application requirements.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 11 × 9 × 4 cm |
