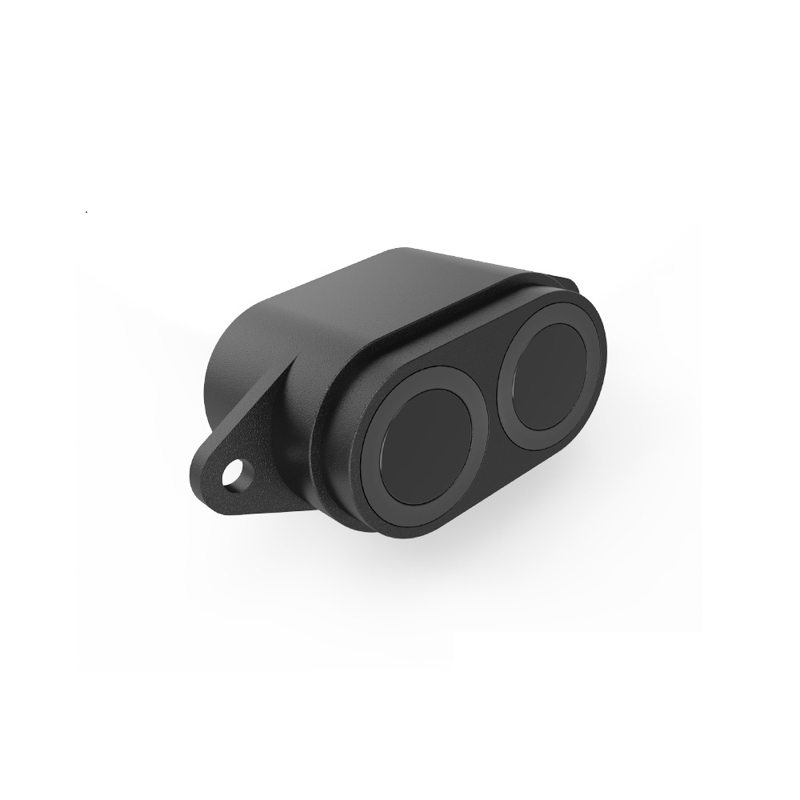

DYP-A22YYCW-V1.0 IIC Ultrasonic Obstacle Avoidance Sensor Object Range 2–300cm

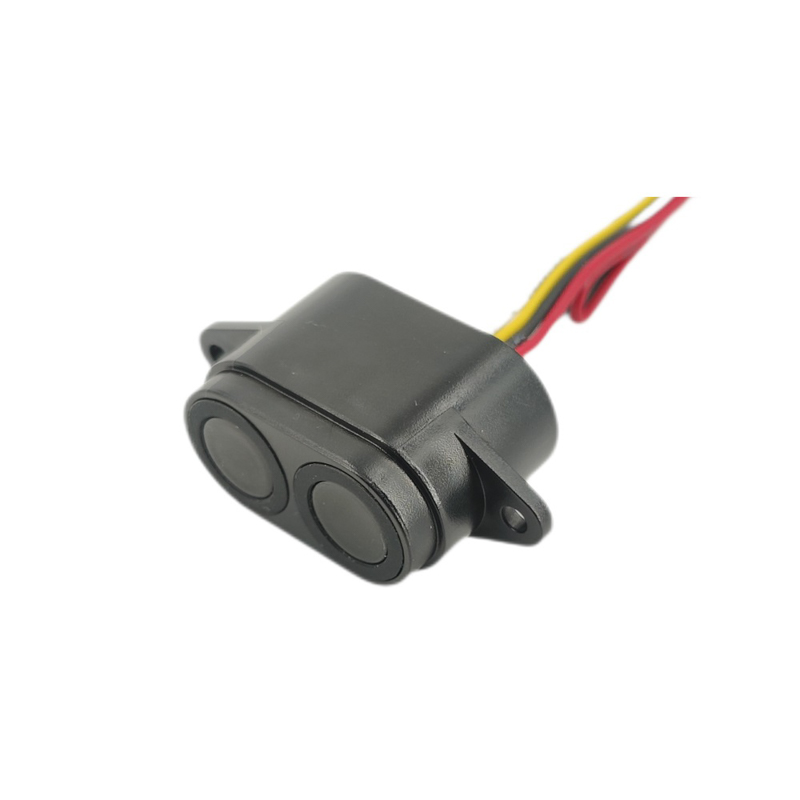

DYP-A22YYCW-V1.0 IIC Ultrasonic Obstacle Avoidance Sensor Object Range 2–300cm - Image 2
SKU: SENS-4051
📋 GST Invoice Available

DYP-A22YYCW-V1.0 IIC Ultrasonic Obstacle Avoidance Sensor Object Range 2–300cm

₹1,229.00 (Inclusive of all taxes)
Out of Stock

The DYP-A22YYCW-V1.0 is an I2C interface ultrasonic ranging sensor module offering a 2cm to 300cm detection range with a minimal blind spot. Designed for 3.3V to 12V systems, it integrates seamlessly with microcontrollers like Arduino, Raspberry Pi, and ESP32 for precise obstacle avoidance and distance measurement applications.

Features

  • I2C digital output for simplified interfacing with microcontrollers.
  • Extended 2cm to 300cm (2–3 meter) measurement range.
  • Minimized blind spot of less than 2cm for close-proximity detection.
  • Wide operating voltage range from 3.3V to 12V DC.
  • IP67-rated waterproof and dustproof construction for robust environmental performance.

Out of stock

Description

The DYP-A22YYCW-V1.0 ultrasonic sensor module employs advanced acoustic processing technology to deliver stable and reliable distance data. Its design specifically addresses common issues like large blind spots and co-frequency interference, making it suitable for complex, automated environments. The module features a narrow measurement beam angle for precise targeting and includes electrostatic protection on its I2C interface.

Built for durability, the sensor operates across a wide temperature range from -25°C to +65°C and is housed in an IP67-rated enclosure, ensuring reliable performance in damp or dusty conditions. Its compact form factor and versatile mounting options provide high installation adaptability for robotics and industrial control systems.

Key Features

  • Intelligent acoustic processing filters co-frequency ultrasonic interference for stable data output.
  • IP67 waterproof and dustproof rating ensures reliable operation in harsh environments.
  • Extended operating temperature range from -25°C to +65°C.
  • Integrated electrostatic protection (ESD) on I/O pins per IEC61000-4-2 standard.
  • Compact design with a narrow beam angle for precise spatial awareness.
  • High-reliability construction with a long operational lifespan.
  • Simple integration via standard I2C communication protocol.

Applications

  • Robotic obstacle avoidance and navigation systems.
  • Industrial automation for object presence detection and positioning.
  • Parking management systems for vehicle detection and space monitoring.
  • Level monitoring and horizontal ranging in material handling.
  • Proximity sensing for interactive installations and safety systems.

Technical Specifications

Model NumberDYP-A22YYCW-V1.0
Operating Voltage3.3V to 12V DC
Output InterfaceI2C (IIC)
Measuring Range2 cm to 300 cm
Blind Spot< 2 cm
Operating Temperature-25°C to +65°C
Ingress ProtectionIP67
ESD ProtectionIEC61000-4-2 Standard

Frequently Asked Questions

What is the operating voltage range for the DYP-A22YYCW-V1.0 sensor?

The sensor operates from 3.3V to 12V DC, making it compatible with common 3.3V and 5V microcontroller logic levels like Arduino, ESP32, and Raspberry Pi. It is designed to be tolerant and can handle the specified range without external regulation in most cases.

How do I interface with this ultrasonic sensor?

The module communicates via the I2C (Inter-Integrated Circuit) protocol. You will need to connect the SDA (data) and SCL (clock) pins to your microcontroller's corresponding I2C pins, along with power (VCC) and ground (GND). The I2C address is typically configurable or specified in the product datasheet.

What is the minimum detection distance (blind spot)?

The sensor has a minimal blind spot of less than 2 centimeters. Objects closer than this distance may not be detected reliably. For applications requiring very close-range detection, consider this minimum operating range in your system design.

Is this sensor suitable for outdoor use?

Yes, the IP67 waterproof and dustproof rating allows the sensor to be used in damp, dusty, or outdoor environments. It is protected against temporary immersion and dust ingress, making it suitable for applications like outdoor robotics, agricultural monitoring, or parking systems.

What is the beam angle of this ultrasonic sensor?

The DYP-A22YYCW-V1.0 is designed with a small measurement angle, which provides a more focused and precise detection cone compared to standard modules. This narrow beam angle helps reduce false echoes and improves accuracy in cluttered environments, though the exact degree should be verified from the official datasheet.

Package Includes

  • 1 x DYP-A22YYCW-V1.0 Ultrasonic Obstacle Avoidance Sensor Module

Additional Information

Weight 0.05 kg
Dimensions 14 × 9 × 5 cm
