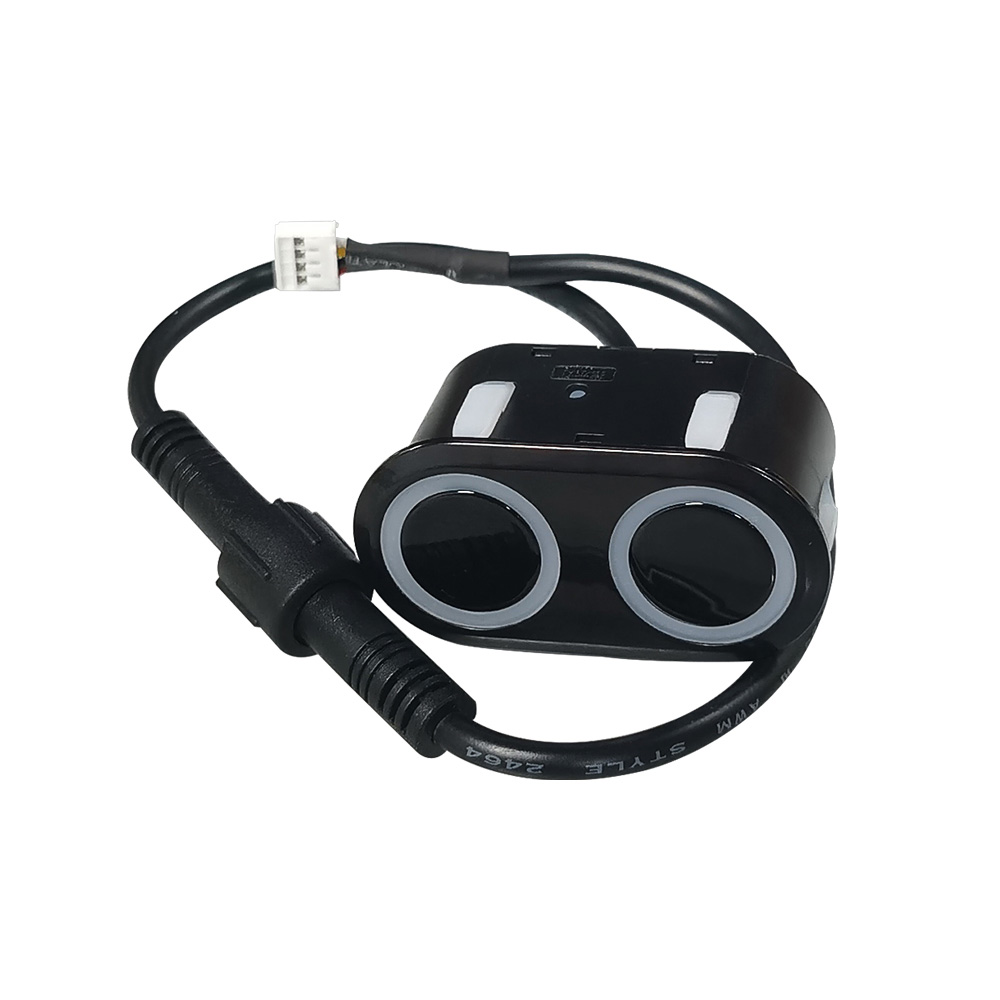

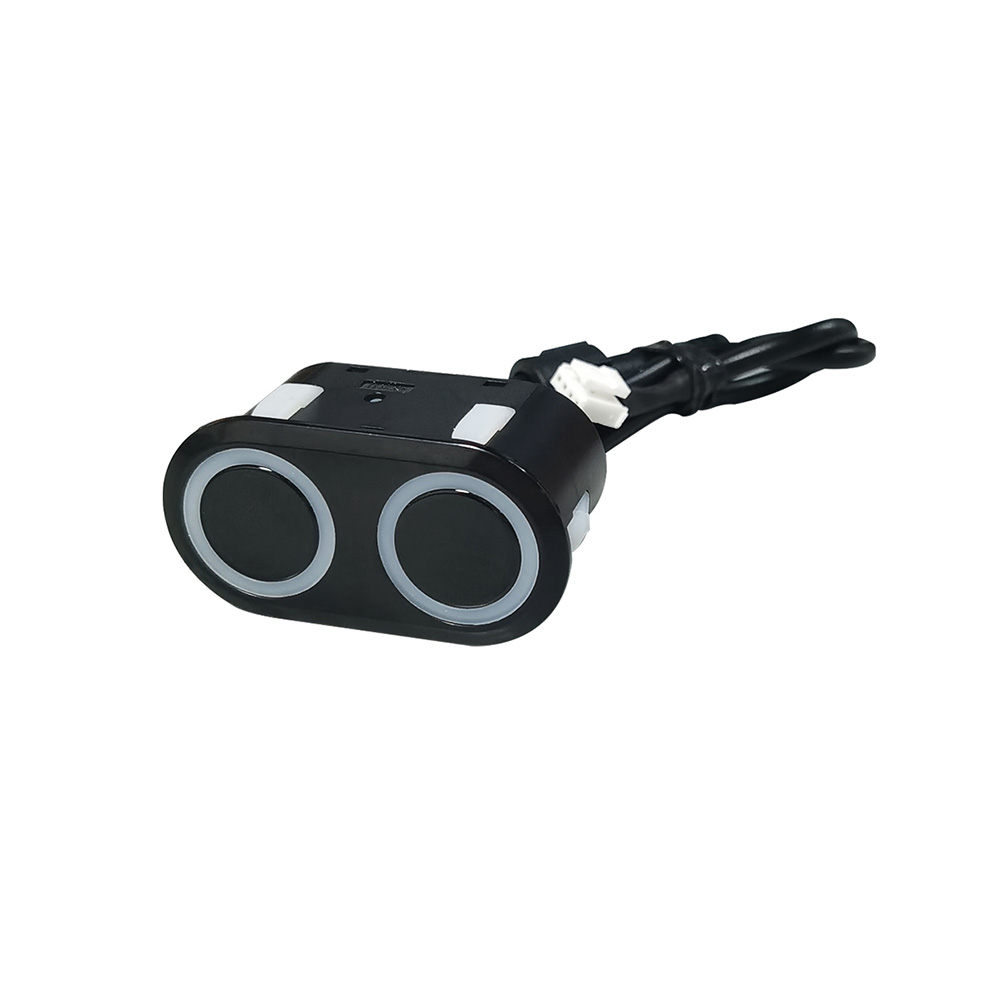

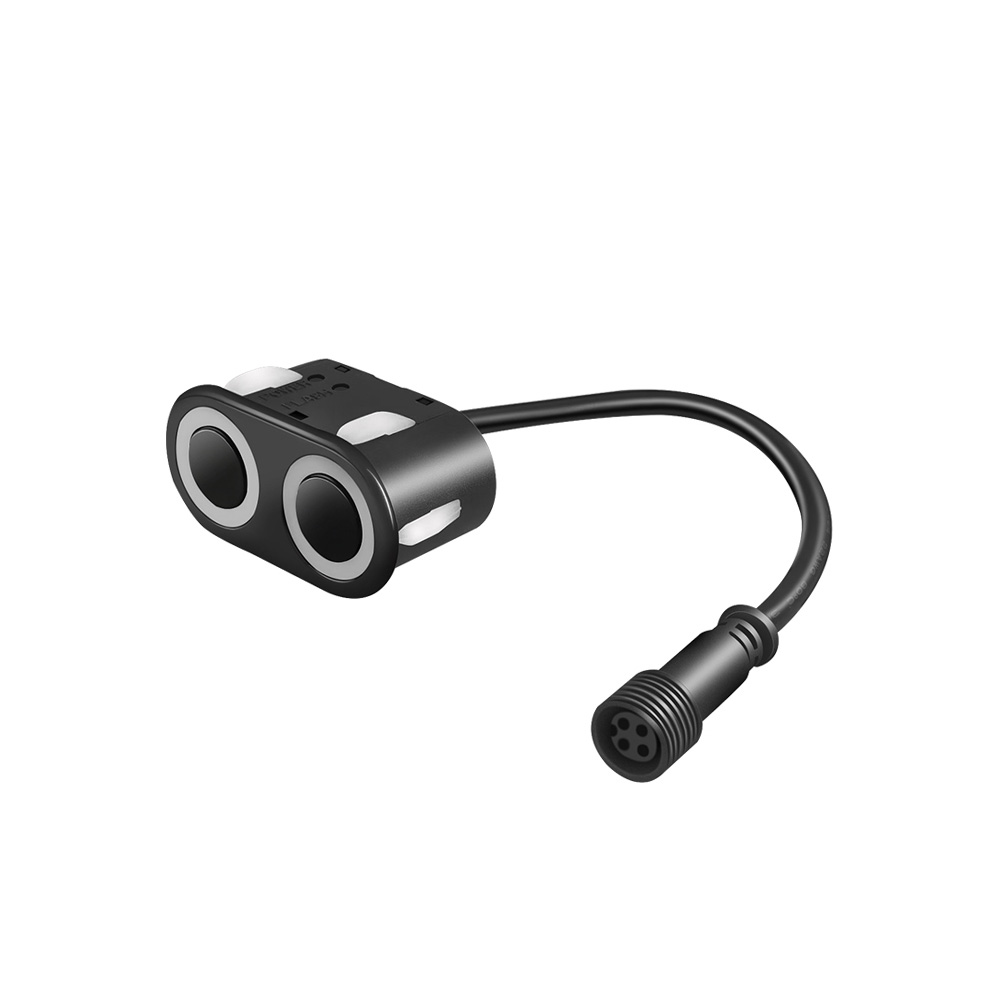

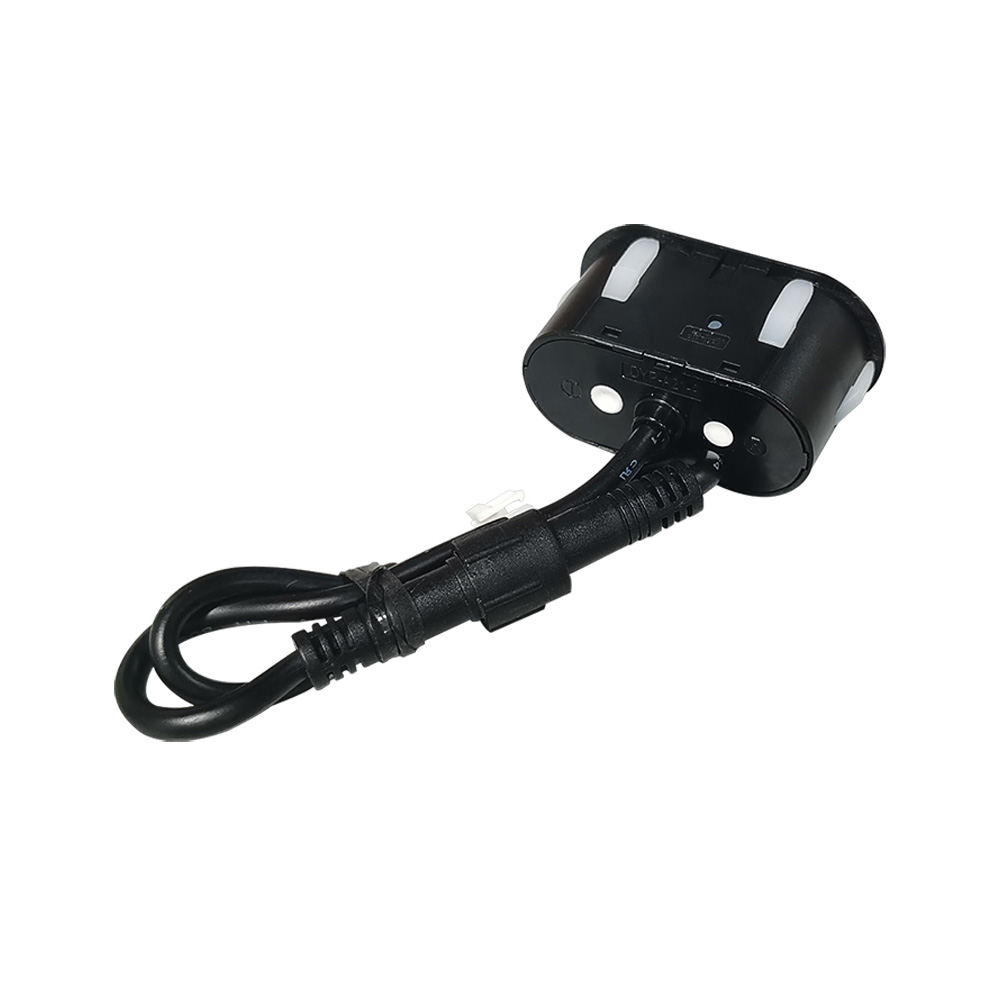

DYP-A21AYYTW-V1.0 UART Ultrasonic Obstacle Avoidance Sensor (3-500cm Range)
The DYP-A21AYYTW-V1.0 is a UART-controlled ultrasonic ranging sensor designed for robotic and industrial automation applications. It offers a wide 3-500cm detection range with a 40-65° signal angle, operates from 3.3V to 24V DC, and features robust dust and waterproof construction for reliable performance in complex environments.
Features
- UART serial interface for direct communication with microcontrollers (Arduino, Raspberry Pi, ESP32) and industrial PLCs.
- Wide 3.3V to 24V DC operating voltage range for flexible system integration.
- Intelligent acoustic processing filters same-frequency interference for stable, reliable data output.
- High waterproof grade and durable construction for reliable use in dusty or damp industrial settings.
- Configurable parameters including baud rate, sensor address, detection angle, and measurement range via commands.
Out of stock
The DYP-A21AYYTW-V1.0 ultrasonic sensor module employs advanced acoustic processing technology to deliver precise distance measurements for obstacle avoidance and object detection. Its design specifically addresses common limitations of ultrasonic sensors by minimizing the blind spot to ≤3cm, providing a wide detection angle, and ensuring a fast response time with a power cycle of ≤1000ms.
Engineered for robustness, the module features a sealed housing rated for dust and water ingress protection, ensuring long-term reliability in challenging environments such as automated guided vehicles (AGVs), robotic arms, and outdoor parking management systems. The configurable UART interface allows for daisy-chaining multiple sensors and fine-tuning performance parameters to suit specific application requirements.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 14 × 10 × 5 cm |
