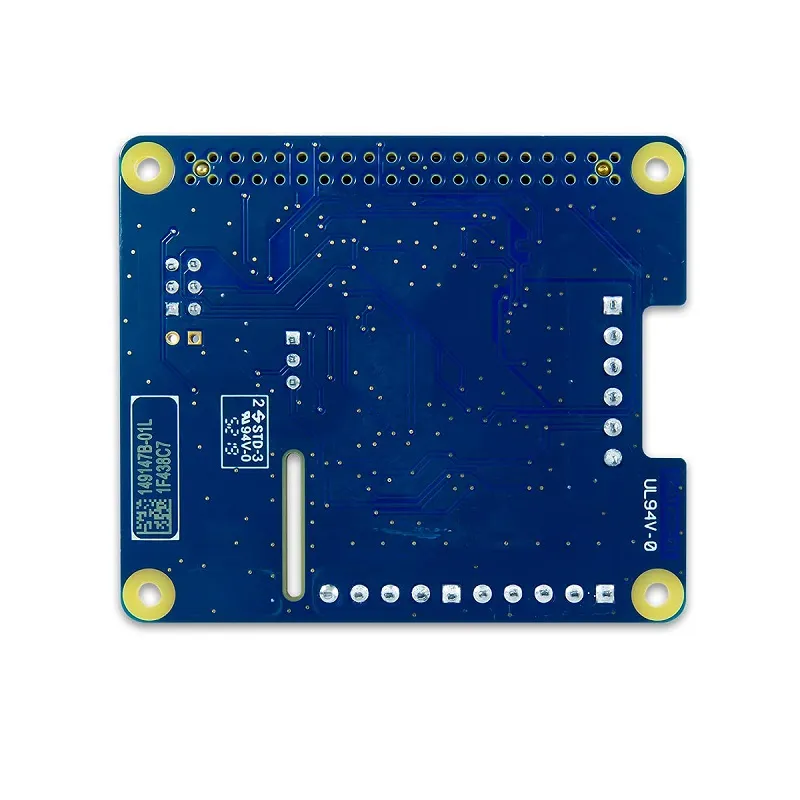

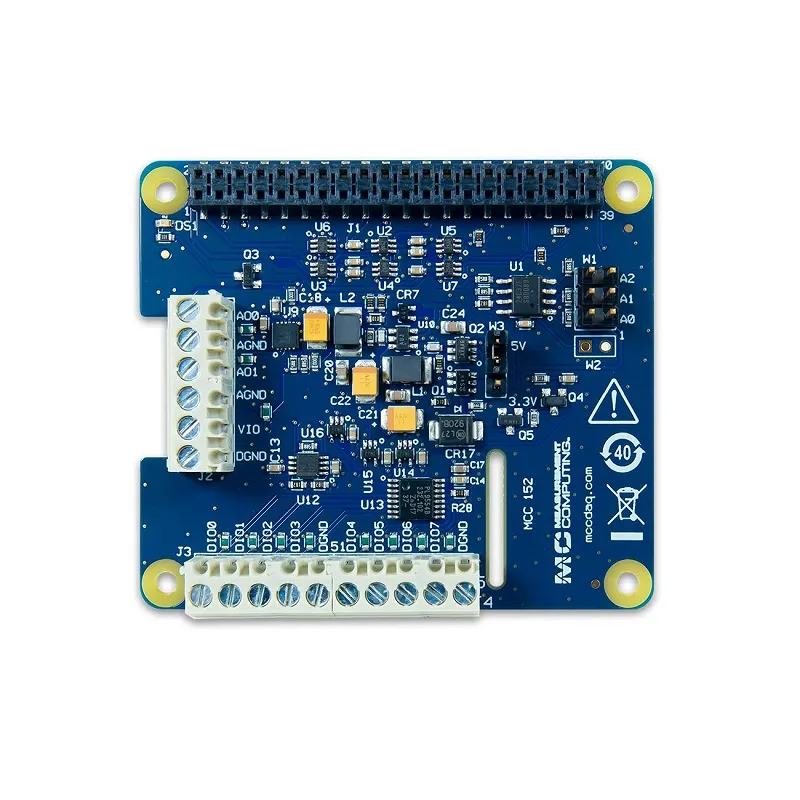

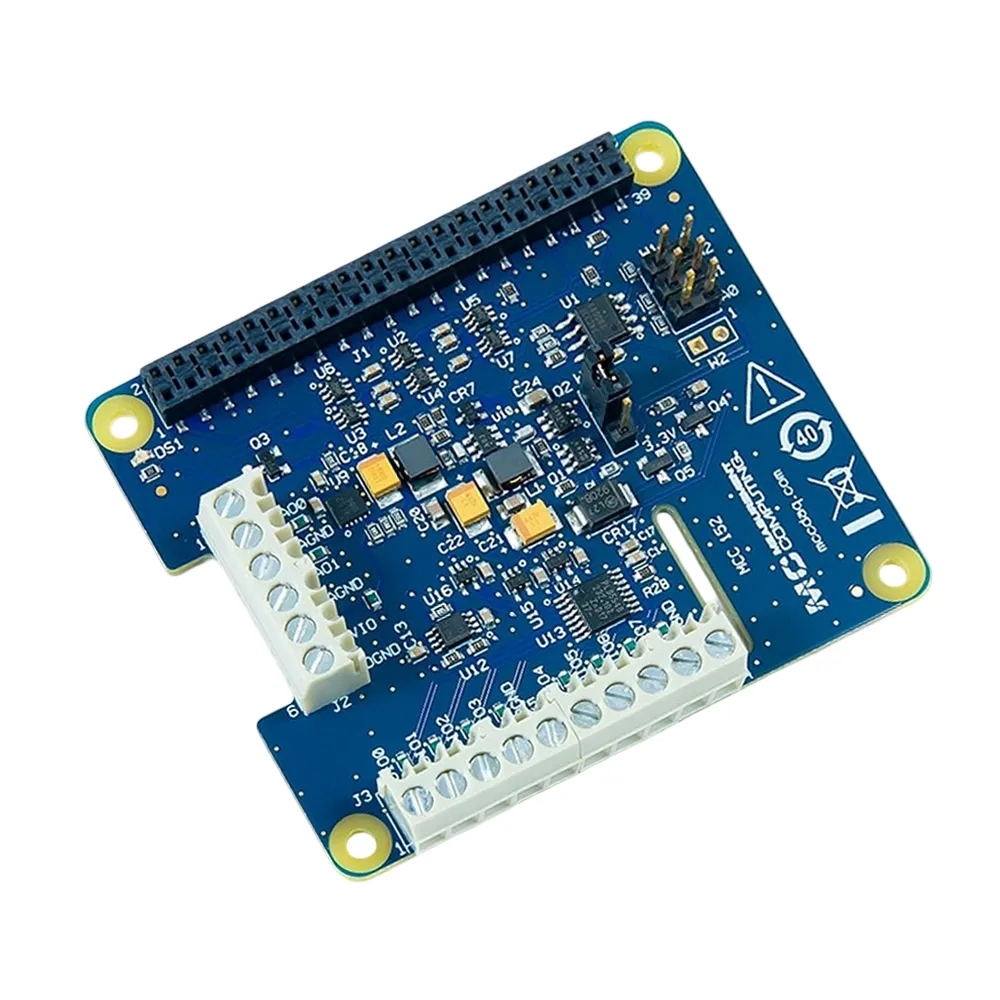

Digilent MCC 152 Voltage Output & DIO HAT for Raspberry Pi
The Digilent MCC 152 is a Data Acquisition (DAQ) HAT for Raspberry Pi systems, providing two 12-bit simultaneous voltage outputs and eight bidirectional digital I/O channels. It extends Raspberry Pi’s capabilities for precise analog control and digital interfacing in various embedded applications.
Features
- Two 12-bit simultaneous voltage outputs
- 5 mA output drive, sourcing
- 0.8 V/µs slew rate
- Eight bidirectional digital I/O bits
Out of stock
The Digilent MCC 152 DAQ HAT integrates seamlessly into Raspberry Pi-based systems, offering robust data acquisition capabilities. Building on the heritage of Measurement Computing Corporation (MCC) and Data Translation (DT) products, this HAT provides reliable and easy-to-integrate test and measurement solutions for a wide range of applications.
Featuring two channels of 12-bit analog voltage output with a 0-5 V range, the MCC 152 can update outputs at up to 5 kS/s, making it suitable for precise analog control. Additionally, it includes eight bidirectional digital I/O lines with 5V/3.3V operation and CMOS input thresholds, enabling versatile digital interfacing. Up to eight MCC HATs can be stacked onto a single Raspberry Pi, allowing for scalable, multifunction data logger and control solutions.
The MCC 152 is supported with comprehensive C/C++® and Python™ examples and an open-source library, alongside full API and hardware documentation. It is part of a series of MCC DAQ HATs, offering options for various input and output types to build custom Raspberry Pi-based data acquisition systems. Please note, the Raspberry Pi board itself is not included with the MCC 152.
Additional Information
| Weight | 0.175 kg |
|---|---|
| Dimensions | 27 × 21.5 × 4 cm |
