DFRobot Fermion 2.0" 320×240 IPS TFT LCD Display with MicroSD Slot - SPI & GDI Interface
The DFRobot Fermion 2.0″ IPS TFT LCD module features a 320×240 RGB565 display driven by an ST7789V chip, offering wide 80° viewing angles. It interfaces via 4-wire SPI or plug-and-play GDI port, is powered from 3.3V to 5V, and includes an onboard MicroSD slot for image storage, making it compatible with Arduino, ESP32, and other microcontrollers.
Features
- 2.0″ IPS TFT LCD with 320×240 resolution and 80° viewing angles.
- ST7789V driver supports 4-wire SPI and plug-and-play GDI interface.
- Wide 3.3V to 5.5V power input compatible with Arduino, ESP32, ESP8266.

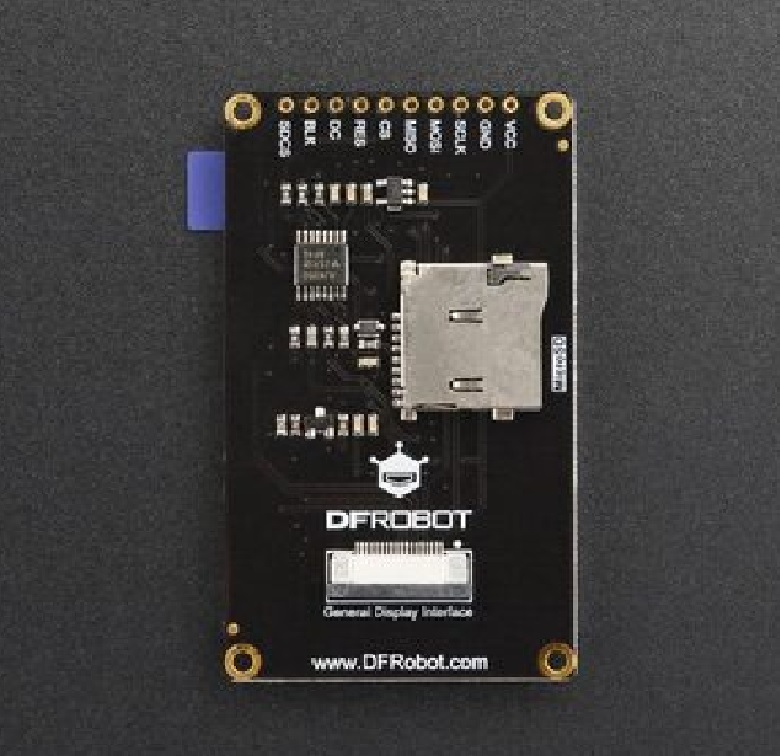

- Onboard MicroSD card slot for storing and displaying images.

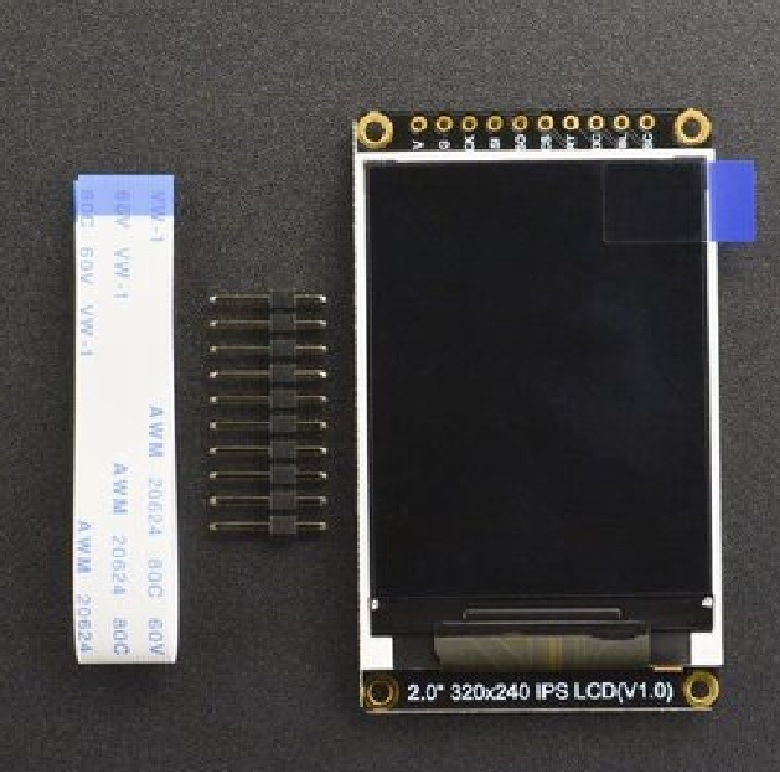

- Compact module with pre-soldered headers and FPC cable for easy integration.
Out of stock
This high-resolution IPS TFT display module utilizes the ST7789V driver IC to deliver vibrant color reproduction and consistent performance across a wide 80/80/80/80 viewing angle. The SPI communication protocol ensures fast data transfer for dynamic graphics, while the dedicated GDI port allows for direct connection to compatible main controllers like the FireBeetle M0, significantly simplifying wiring and reducing development time.
Engineered for robustness, the module operates across an industrial temperature range of -30°C to 75°C, suitable for both indoor and protected outdoor applications. The inclusion of a MicroSD card reader provides expanded storage for bitmap images, enabling standalone display projects without constant data streaming from the host microcontroller.
Additional Information
| Weight | 0.026 kg |
|---|---|

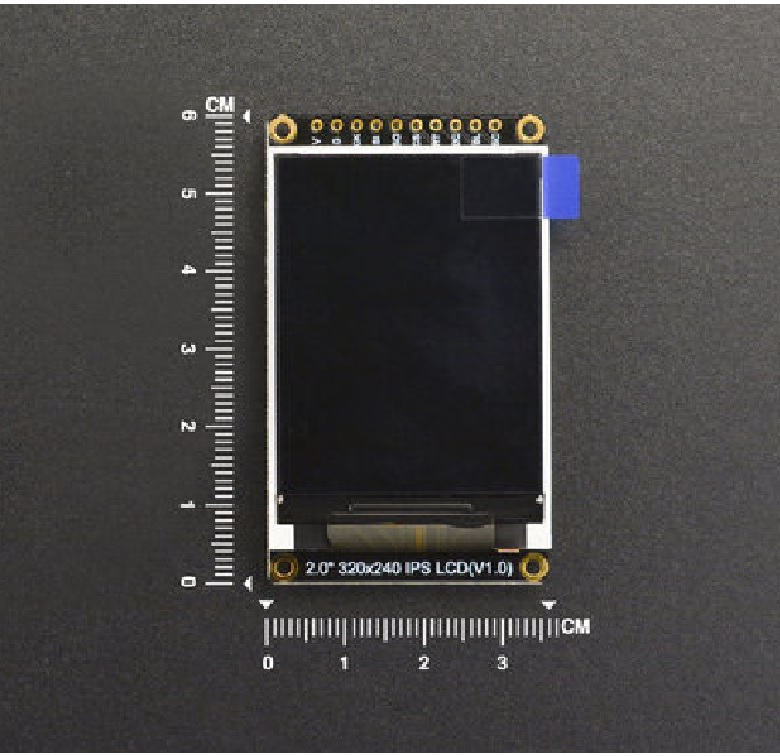

| Dimensions | 6 × 3.57 cm |
