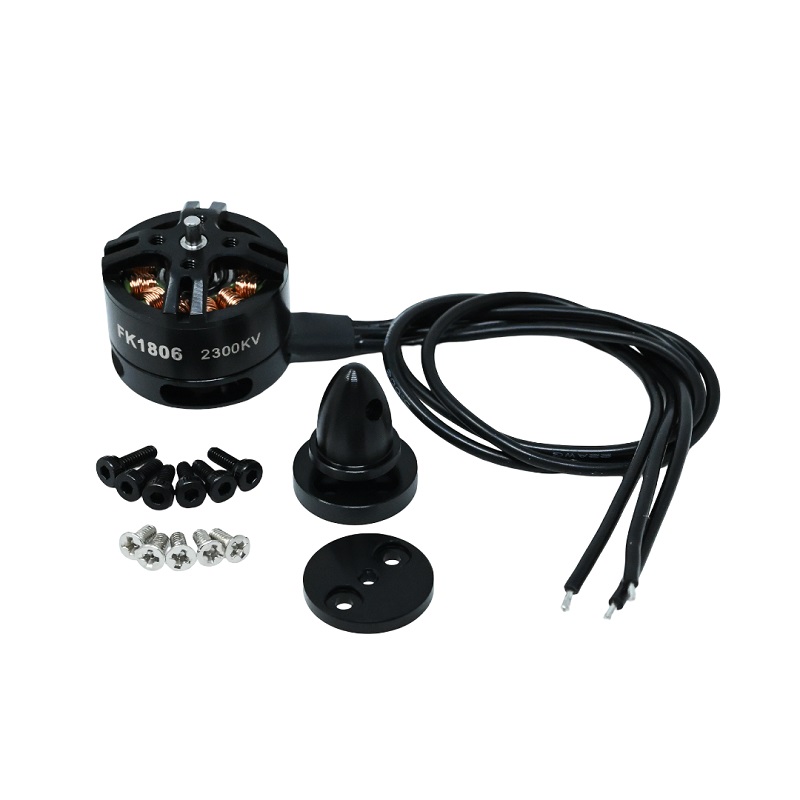

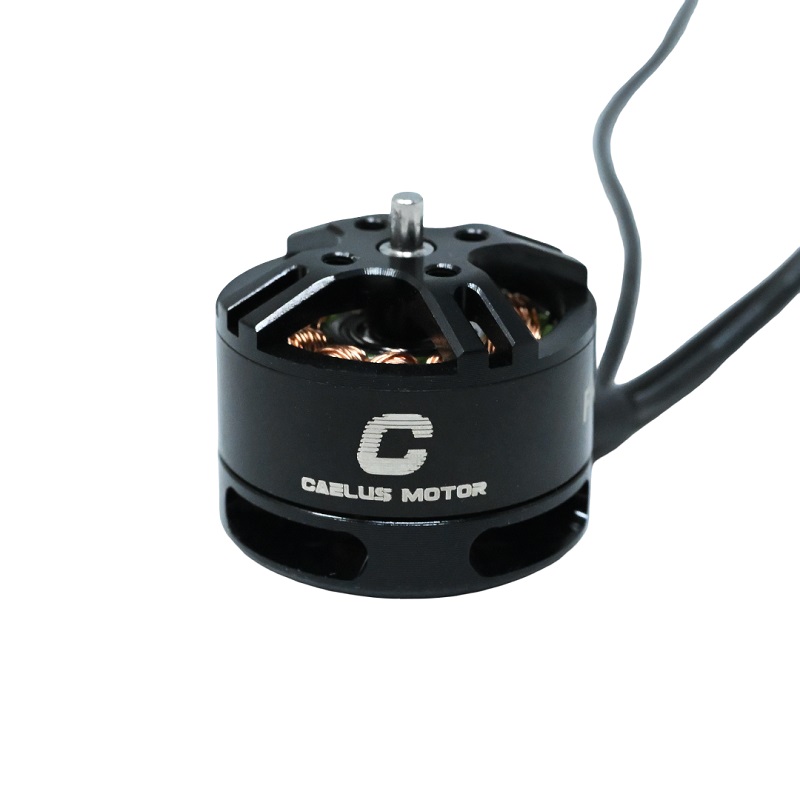

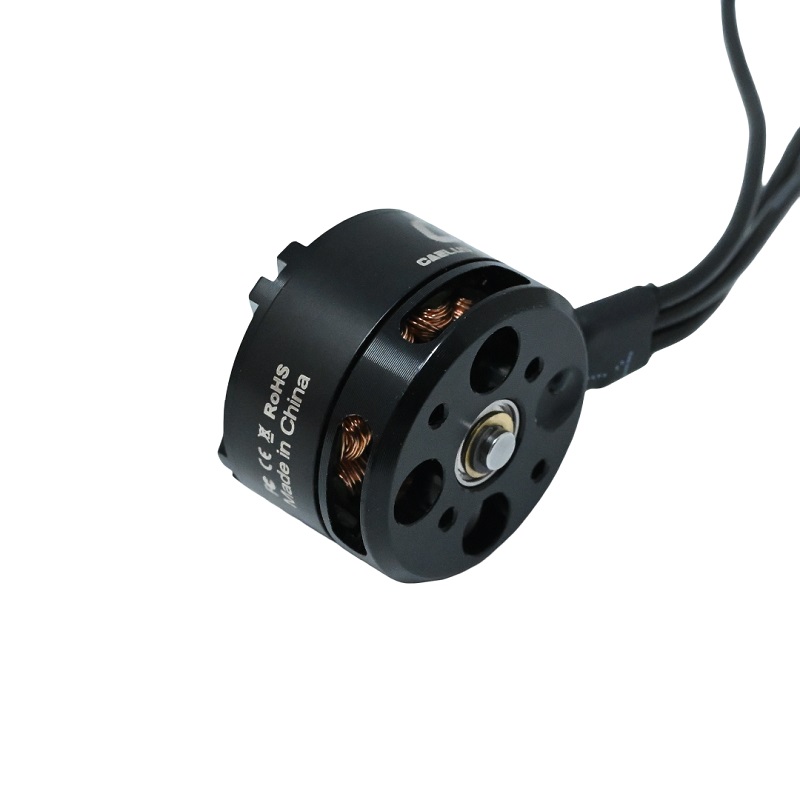

CAELUS FK1806-13 2300KV Brushless Motor
The CAELUS FK1806-13 is a 2300KV brushless motor engineered for high-speed 4-6 inch FPV racing and freestyle drones. Designed for 2-4S LiPo input, its 18x6mm stator and 23g weight deliver a responsive power-to-weight ratio ideal for lightweight, agile builds.
Features
- High-performance 2300KV rating optimized for 4-6 inch propellers.
- Compact 18x6mm (1806) stator design with a total motor weight of 23 grams.
- Wide 2-4S LiPo input voltage range (7.4V-15.0V).
- Generates up to 521g of thrust on 4S with a GF6020 propeller.
- Features a 2mm shaft diameter and dual mounting patterns (16mm & 9mm PCD).
Out of stock
The CAELUS FK1806-13 brushless motor combines a high 2300KV rating with a compact 1806 stator footprint, delivering rapid acceleration and precise throttle control for FPV racing and freestyle applications. Its lightweight 23g construction minimizes overall drone mass, enhancing agility and flight time efficiency.
Engineered for durability, the motor features a robust internal structure capable of handling peak power draws up to 84.4W. The design ensures smooth, cogging-free operation across its full 2-4S voltage range, making it a versatile choice for pilots building high-performance quads from 4 to 6 inches in size.
Additional Information
| Weight | 0.037 kg |
|---|---|
| Dimensions | 5 × 6 × 4 cm |
