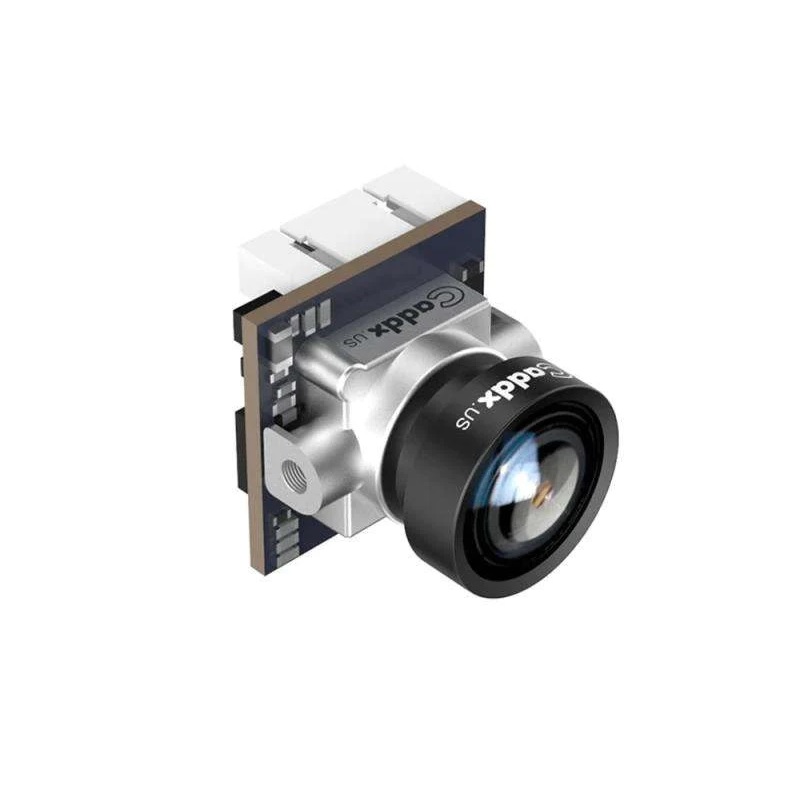

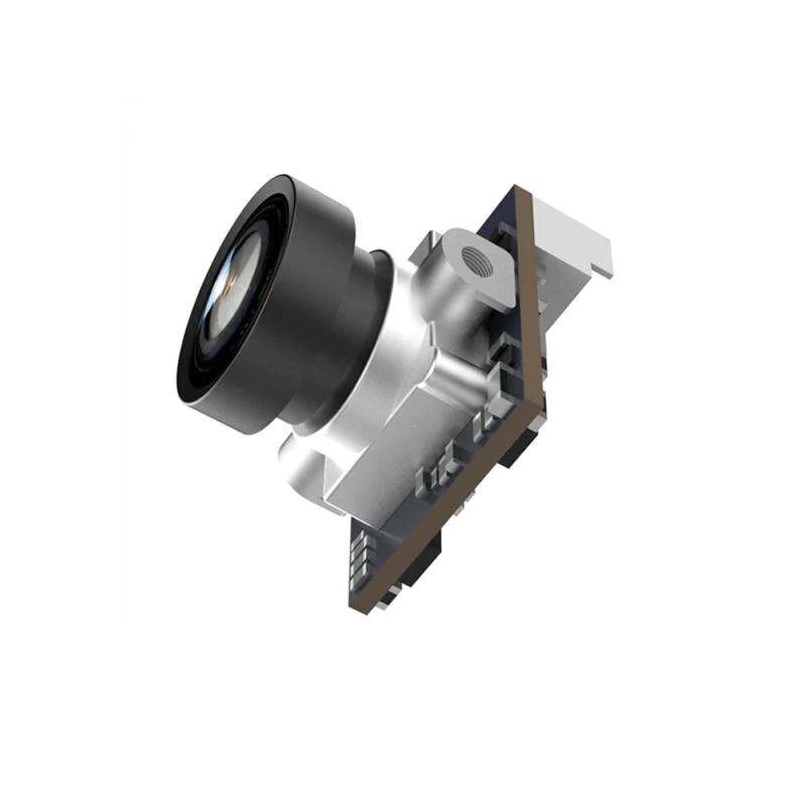

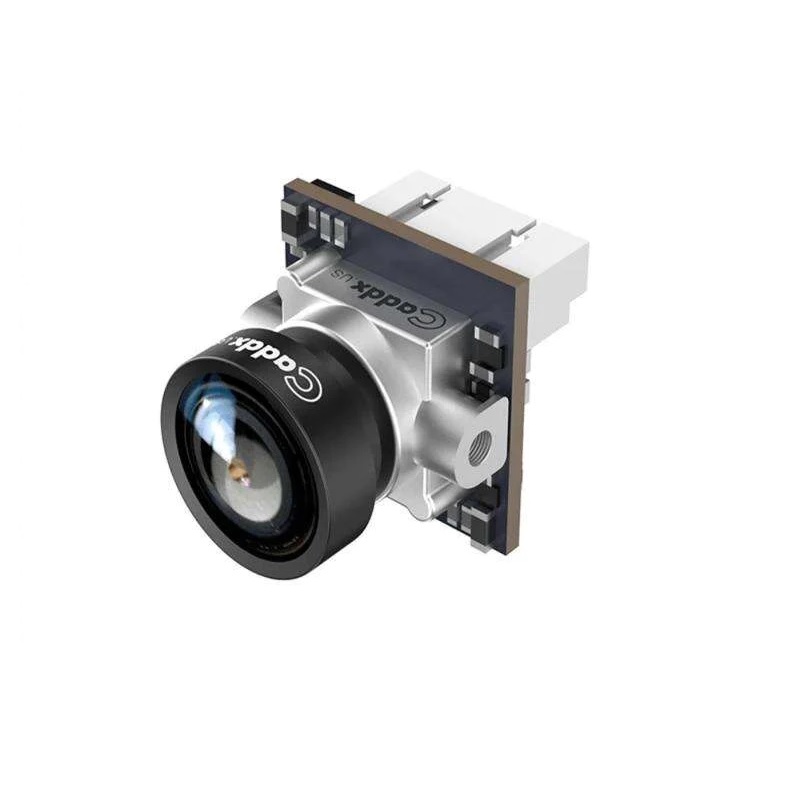

CaddxFPV Ant 16:9 Silver Nano FPV Camera
The CaddxFPV Ant Silver Nano is a compact 16:9 FPV camera featuring a 1/3″ CMOS sensor, 1200TVL resolution, and a 1.8mm wide-angle lens for immersive, low-latency video feed. It operates on a 3.3-9V input, making it compatible with a wide range of FPV drone power systems.
Features
- 16:9 aspect ratio CMOS sensor delivers a wide, cinematic field of view ideal for FPV racing and freestyle.
- Compact 14x14x16mm nano form factor and 3.6g weight for integration into tight micro and whoop builds.
- Ultra-low 4ms latency ensures real-time video feedback critical for high-speed maneuvering.
- Wide 3.3-9V input voltage range provides flexible compatibility with 1S to 2S LiPo setups and regulated 5V/9V BECs.
- Durable construction withstands the vibrations and impacts typical of aggressive FPV flight.
Out of stock
The CaddxFPV Ant Silver Nano FPV Camera is engineered for pilots seeking a high-performance, lightweight video solution. Its 1/3″ CMOS sensor and advanced DSP produce a sharp 1200TVL image with excellent dynamic range, handling challenging light transitions from shadow to direct sunlight. The 1.8mm lens provides a 160° field of view, offering ample situational awareness without excessive distortion.
Built for reliability, the camera features a robust housing and stable voltage regulation across its full input range. The combination of minimal latency, selectable NTSC/PAL video standards, and a standard 14x14mm mounting pattern makes it a direct upgrade or replacement for many micro and nano-sized drone frames. Its operational temperature tolerance ensures consistent performance from cold winter flights to summer heat.
Additional Information
| Weight | 0.0036 kg |
|---|---|
| Dimensions | 1.4 × 1.4 × 1.6 cm |
