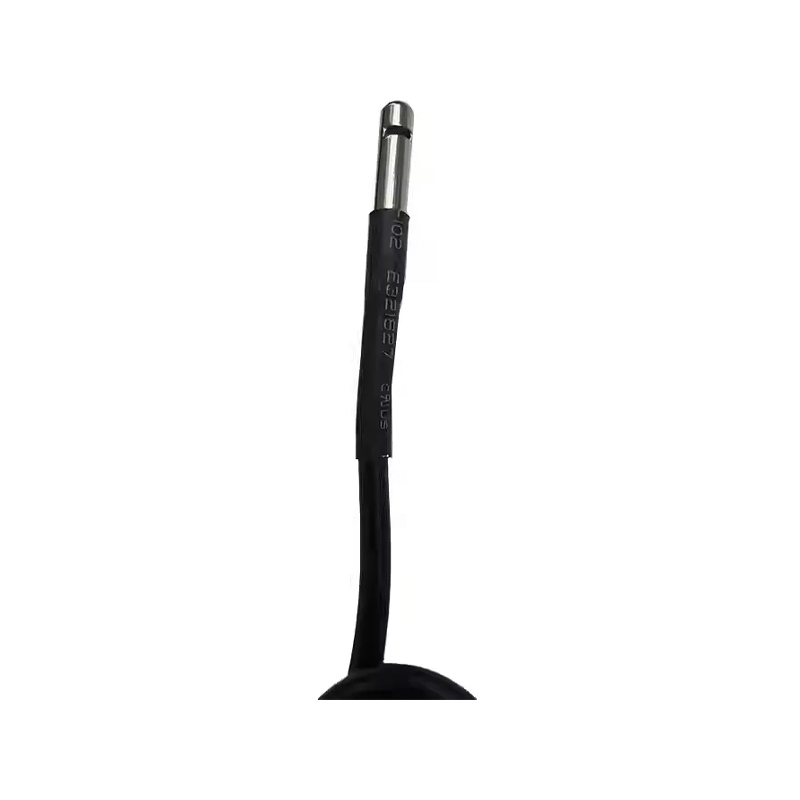

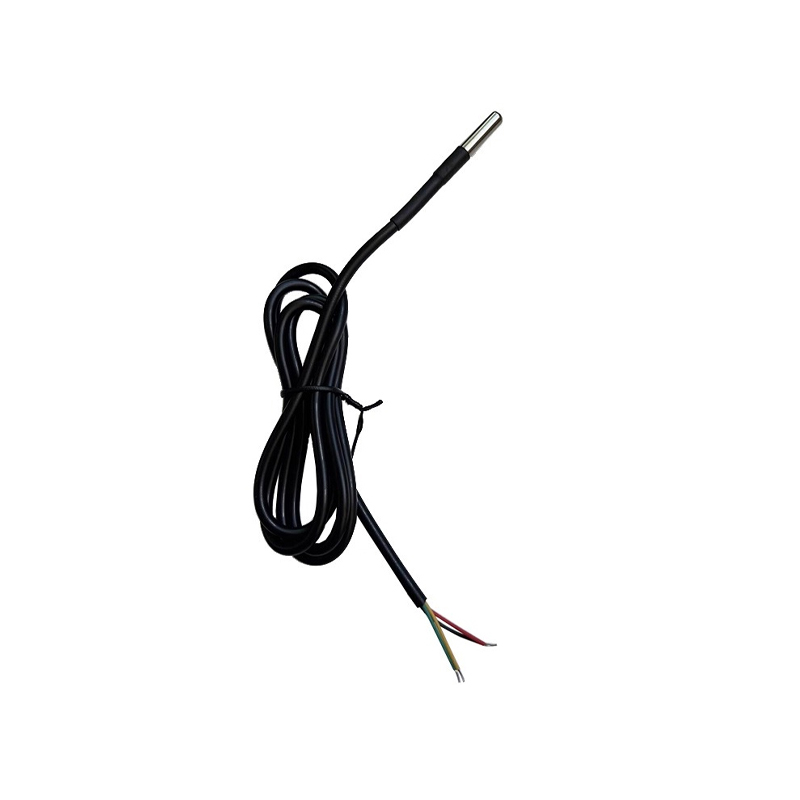

BMP180 Stainless Steel Probe w/ 1m Cable - I2C Digital Barometric Pressure & Temperature Sensor
BMP180 Stainless Steel Probe w/ 1m Cable - I2C Digital Barometric Pressure & Temperature Sensor - Image 2
BMP180 Stainless Steel Probe w/ 1m Cable - I2C Digital Barometric Pressure & Temperature Sensor - Image 3
SKU: SENS-3814
📋 GST Invoice Available

BMP180 Stainless Steel Probe w/ 1m Cable - I2C Digital Barometric Pressure & Temperature Sensor

₹679.00 (Inclusive of all taxes)
Out of Stock

The BMP180 Stainless Steel Probe is a digital barometric pressure and temperature sensor with a 1-meter cable, offering I2C interface compatibility for Arduino, Raspberry Pi, and other 3.3V/5V microcontroller systems. Its durable stainless steel housing provides environmental protection for reliable measurements in industrial and outdoor applications.

Features

  • High-precision digital barometric pressure and temperature sensor
  • Durable SUS-304 stainless steel probe housing for harsh environments
  • Standard I2C digital output for easy microcontroller integration
  • Wide operating voltage range from 3.3V to 5V DC

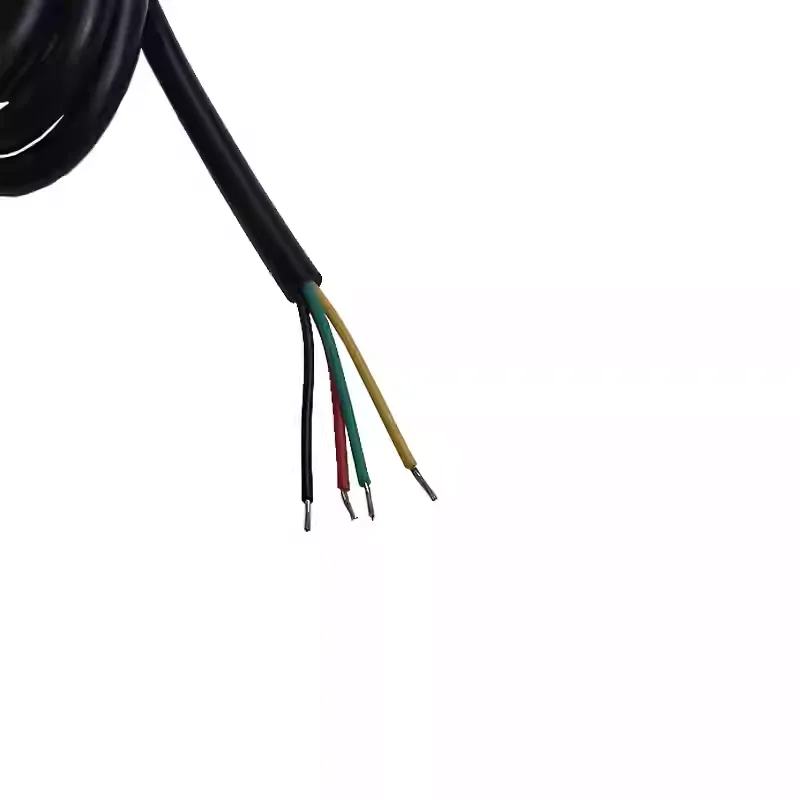

  • Includes 1-meter long, waterproof cable for flexible installation

Out of stock

Description

The BMP180 sensor module, housed in a robust stainless steel probe, utilizes a piezoresistive sensing element to deliver highly accurate barometric pressure readings, which can be converted to altitude. Integrated temperature compensation ensures stable performance across its full operational range. The sealed stainless steel housing and waterproof cable provide IP67-equivalent protection against moisture and dust ingress, making it suitable for demanding industrial and outdoor environments.

Communication is handled via a simple two-wire I2C interface, allowing for direct connection to popular development platforms like Arduino, ESP32, STM32, and Raspberry Pi without requiring additional signal conditioning. The sensor’s low power consumption and wide supply voltage compatibility make it ideal for portable data loggers and battery-powered weather stations.

Key Features

  • High-accuracy MEMS pressure sensor with ±1.0°C typical temperature accuracy
  • Corrosion-resistant SUS-304 stainless steel probe body for long-term durability
  • Integrated signal conditioning provides calibrated digital output via I2C
  • Wide measurement range: 300 to 1100 hPa (pressure) and -40 to +85°C (temperature)
  • Waterproof cable and sealed probe design for reliable operation in humid or wet conditions
  • Low power consumption suitable for battery-operated monitoring systems
  • Compact form factor enables installation in confined spaces

Applications

  • Altitude tracking and barometric pressure monitoring for weather stations and drones
  • Environmental data logging in industrial facilities and agricultural sites
  • Indoor air pressure differential monitoring for HVAC system control
  • Portable meteorological instruments and handheld altimeters
  • Process control and condition monitoring in manufacturing environments

Technical Specifications

Sensor ModelBMP180
Measurement Range (Pressure)300 – 1100 hPa
Measurement Range (Temperature)-40 to +85 °C
Typical Temperature Accuracy±1.0 °C
Output InterfaceI2C Digital
Supply Voltage3.3 to 5 V DC
Probe Housing MaterialStainless Steel (Waterproof)
Cable Length1 Meter
Cable Specification04-core
Item Weight21 g

Frequently Asked Questions

What is the operating voltage range for this BMP180 probe?

The sensor operates from 3.3V to 5V DC, making it directly compatible with most microcontroller boards like Arduino (5V logic) and Raspberry Pi/ESP32 (3.3V logic) without requiring a level shifter.

How do I connect and read data from this sensor?

The probe uses a standard I2C communication interface. Connect the VCC, GND, SDA, and SCL wires to your microcontroller. You can use readily available libraries (e.g., Adafruit_BMP085) for Arduino or Python to read calibrated pressure and temperature values directly.

Is the probe suitable for outdoor or wet environments?

Yes. The sensing element is housed in a sealed stainless steel casing with a waterproof cable, providing robust protection against moisture, dust, and corrosion. It is designed for reliable performance in industrial, agricultural, and outdoor weather monitoring applications.

What is the typical accuracy of the temperature measurement?

The integrated temperature sensor has a typical accuracy of ±1.0°C across its operating range of -40°C to +85°C. This accuracy is sufficient for most environmental monitoring and altitude calculation purposes.

Package Includes

  • 1 x BMP180 Stainless Steel Probe with 1-meter Cable

Additional Information

Weight 0.03 kg
Dimensions 18 × 12 × 3 cm
