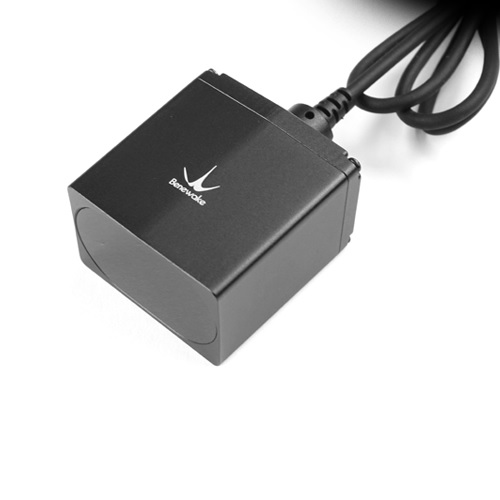

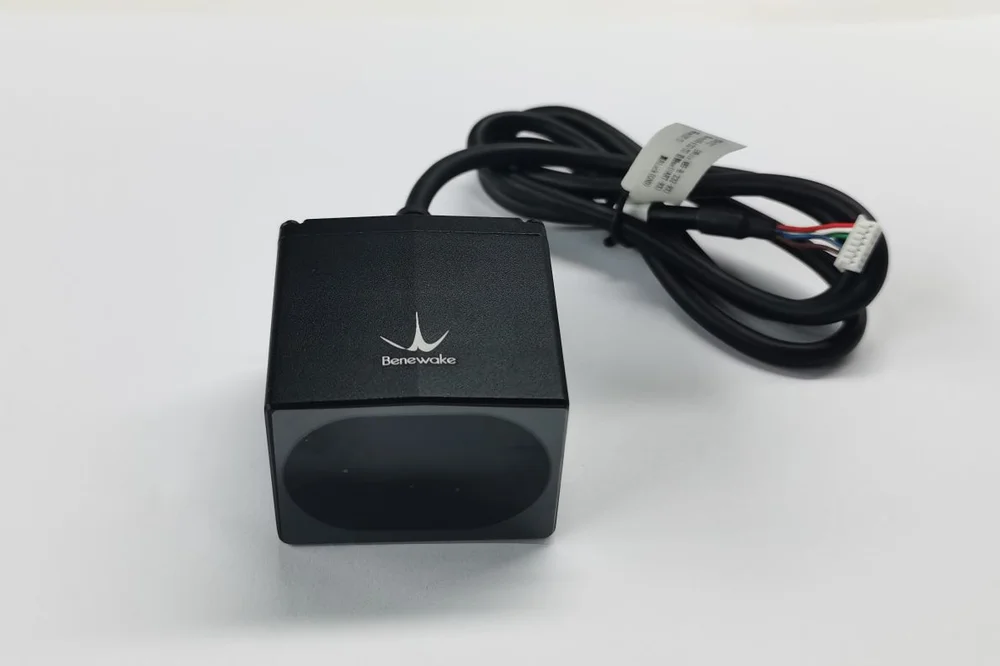

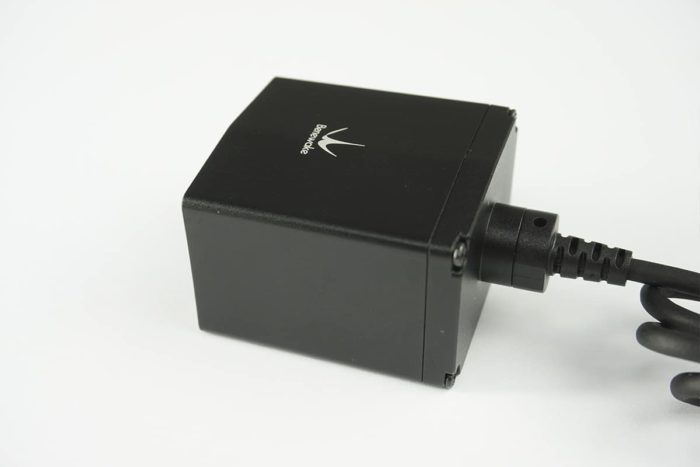

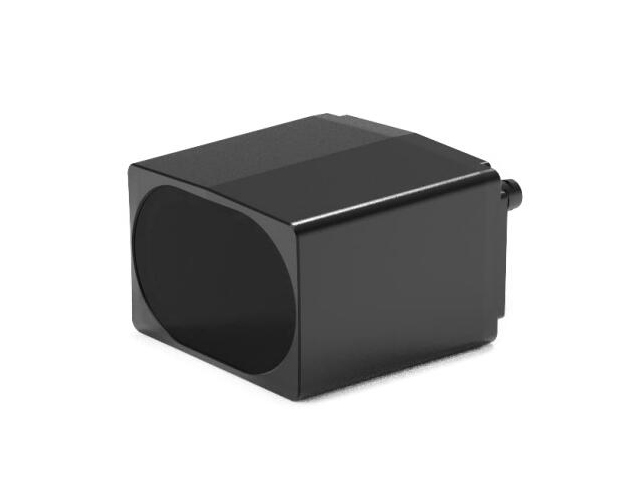

Benewake TF03-100 UART Long-Range LiDAR Sensor for Drones, Range: 0.1m~100m
The Benewake TF03-100 is a long-range, single-point LiDAR sensor utilizing Time-of-Flight (ToF) pulse ranging for distances from 0.1m to 100m. It features a UART interface for easy integration with drones, automotive systems, and industrial automation platforms like Arduino, Raspberry Pi, and embedded controllers.
Features
- Extended 100m measurement range with ±10cm accuracy within 10m.
- High-speed 10KHz measurement frequency for real-time distance data.
- IP67-rated rugged housing for reliable operation in harsh outdoor and industrial environments.
- UART serial interface with 115200 baud rate for straightforward microcontroller communication.
- Integrated compensation algorithm for stable performance under strong ambient light interference.
Out of stock
The TF03-100 is an industrial-grade LiDAR sensor based on Time-of-Flight (ToF) pulse measurement technology. It emits a light pulse and calculates the distance to an object by measuring the time taken for the reflection to return. This principle ensures high-speed, non-contact ranging suitable for dynamic applications.
Engineered for durability, the sensor’s IP67-rated enclosure protects against dust and water ingress, supporting reliable operation across a wide temperature range. Its compact form factor and low power consumption (≤0.9W at 5V) facilitate easy integration into space-constrained mobile platforms like drones and autonomous vehicles.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 4.4 × 4.3 cm |
