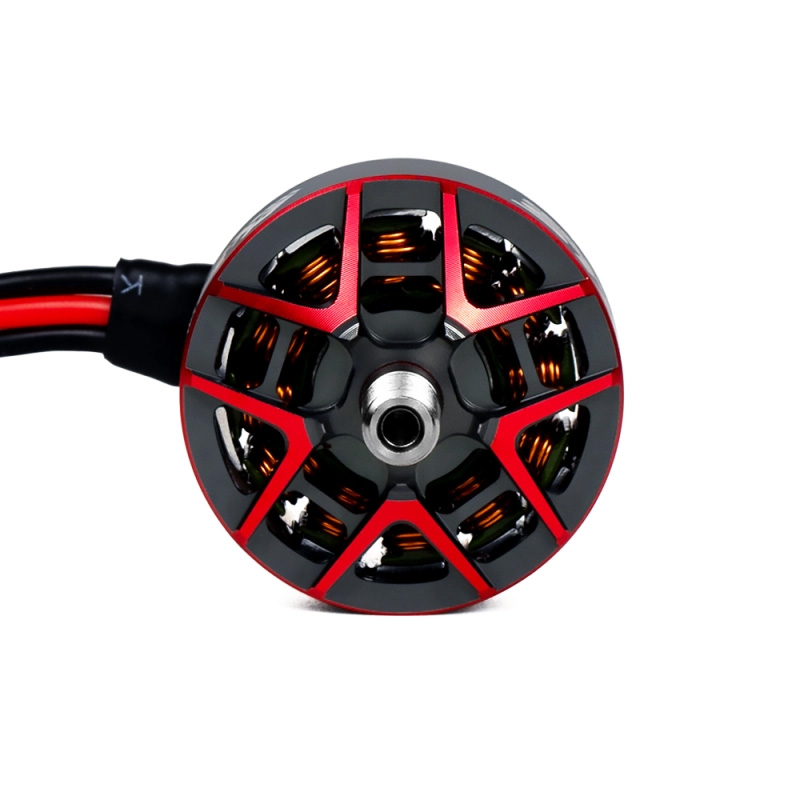

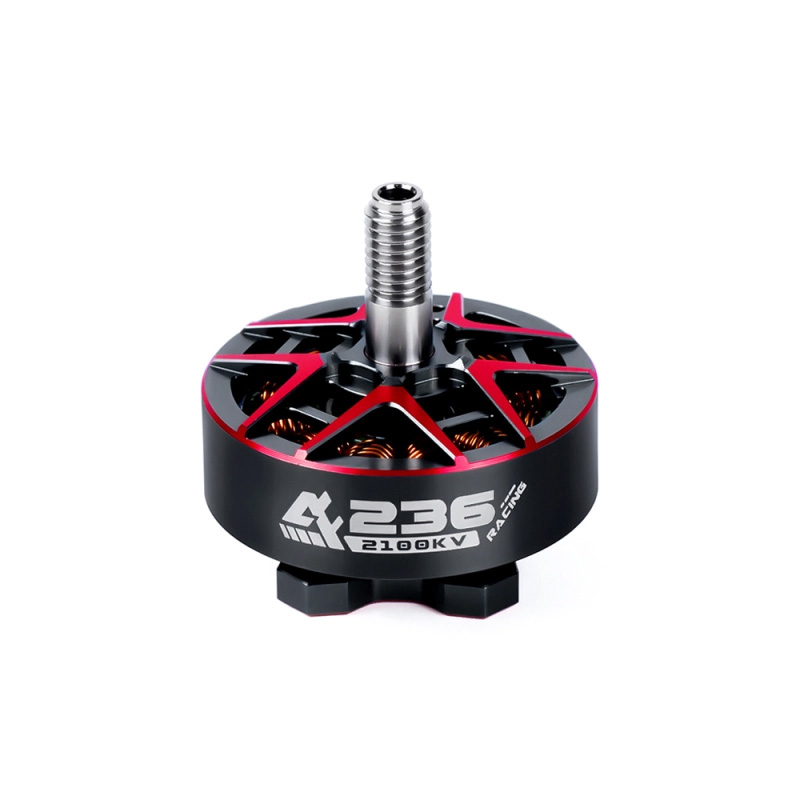

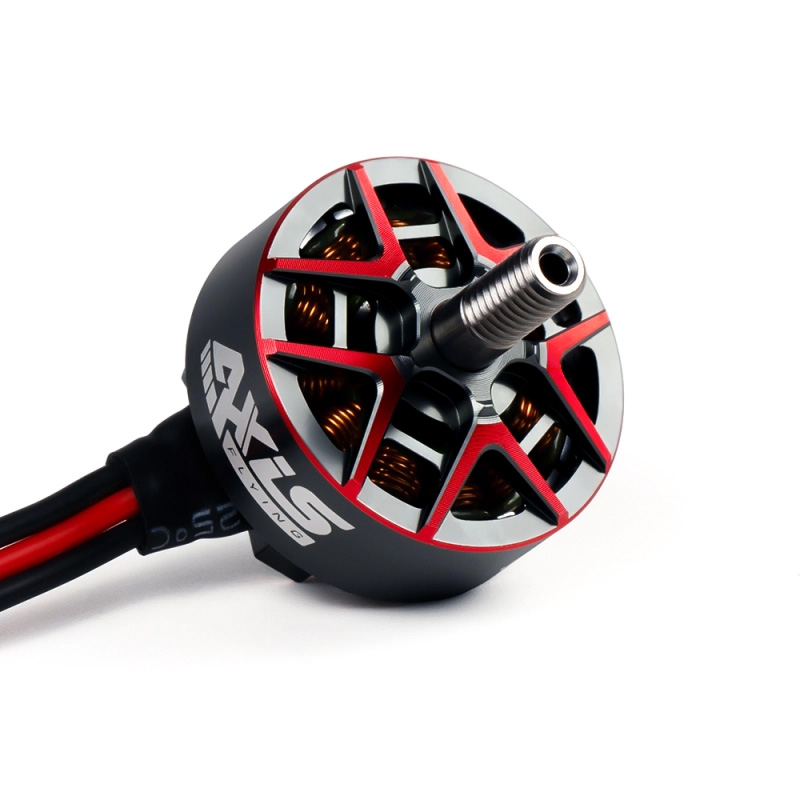

AxisFlying AF236 2306 V2 Brushless Motor - 1960KV

Name: AxisFlying AF236 2306 V2 Brushless Motor - 1960KV
Brand: AxisFlying
SKU: DRFC-2637
Price: 1589.00 INR
Availability: OutOfStock

₹1,589.00 (Inclusive of all taxes)

Out of Stock

The AxisFlying AF236 2306 V2 brushless motor is engineered for high-performance 5-inch FPV racing and freestyle drones, delivering up to 1680g of thrust on 6S LiPo power. Its 1960KV rating and optimized 12N14P configuration provide a powerful and efficient power-to-weight ratio for dynamic flight.

Features

High-Performance 2306 V2 Motor with 1960KV rating for 5-inch FPV drones.
Delivers up to 1680g of maximum thrust for aggressive freestyle and racing maneuvers.
Optimized for 6S LiPo voltage, handling up to 45.01A continuous current.
Lightweight 32.9g design with a 12N14P stator configuration for smooth, efficient power.
Includes comprehensive mounting hardware (M3 screws, M5 lock nut, washers, O-ring).

Out of stock

Get Notified When Available

Description

The AxisFlying AF236 2306 V2 brushless motor is a precision-engineered component designed for pilots demanding high thrust and responsive control in 5-inch FPV builds. Its 1960KV rating is specifically tuned for 6S power systems, providing the ideal balance of torque and RPM for technical freestyle and competitive racing.

Constructed with a durable stator and high-quality bearings, the motor features low internal resistance (64 mΩ) for efficient power conversion and reduced thermal buildup during sustained high-load flight. The 12N14P magnetic configuration ensures smooth operation and reliable performance across the entire throttle range.

Key Features

High-Thrust 2306 Design: Generates up to 1680g of thrust, enabling powerful punch-outs and precise control for 5-inch quadcopters.
6S-Optimized 1960KV: The KV rating is calibrated for 6S LiPo batteries, delivering optimal RPM and torque without excessive current draw.
Efficient Thermal & Electrical Design: Low 64 mΩ internal resistance minimizes power loss as heat, improving flight time and motor longevity.
Durable Mechanical Construction: Robust stator and shaft assembly withstands the vibrations and impacts typical of aggressive FPV flying.
Complete Mounting Kit: Includes all necessary M3 screws, an M5 flanged lock nut, washers, and an O-ring for secure and vibration-damped installation.

Applications

5-inch FPV freestyle drones requiring high torque and explosive power for tricks like power loops and dives.
5-inch FPV racing drones where a balance of top-end speed and mid-throttle efficiency is critical.
Heavy-lift 5-inch cinewhoop or payload builds that benefit from the motor's high thrust capability.
Custom 6S-powered multirotor builds where a 2306 form factor and ~2000KV range is specified.

Technical Specifications

Motor Type	Brushless Motor
Model	AF236 2306 V2
KV Rating	1960 KV
Stator Size	23mm x 6mm (2306)
Motor Dimensions	Ø29.3mm x 30.6mm
Configuration	12N14P
Max Continuous Current	45.01 A
Max Continuous Power	1080.34 W
Voltage Rating	6S LiPo
Max Thrust	1680 g
Internal Resistance	64 mΩ
Weight	32.9 g ± 0.5

Frequently Asked Questions

What is the recommended propeller size for this 1960KV motor on 6S?

For optimal performance on 6S LiPo, pair this 1960KV motor with 5-inch propellers, typically in the 5x4.3x3 or 5x5x3 pitch range. This combination leverages the motor's high torque to provide aggressive thrust for freestyle while maintaining manageable current draw below its 45A continuous rating.

What is the motor's mounting pattern and shaft diameter?

The AF236 2306 V2 uses a standard 16x19mm M3 mounting hole pattern, compatible with most 5-inch FPV frames. The motor shaft diameter is 5mm, as indicated by the included M5 flanged lock nut in the package.

Is this motor suitable for long-range or cinematic drone builds?

While capable, the 1960KV rating and high thrust design are optimized for dynamic freestyle and racing where burst power is key. For efficient long-range flight, a lower KV motor (e.g., 1700KV or less) on the same 2306 stator size would typically provide longer flight times at the expense of peak thrust.

What ESC is recommended for the AF236 2306 V2 motor?

Use a high-quality 45A+ continuous rated ESC, preferably a 4-in-1 or individual BLHeli_S or BLHeli_32 ESC. Ensure your ESC firmware supports DShot600 or higher for the best responsiveness and telemetry with modern flight controllers like Betaflight.
