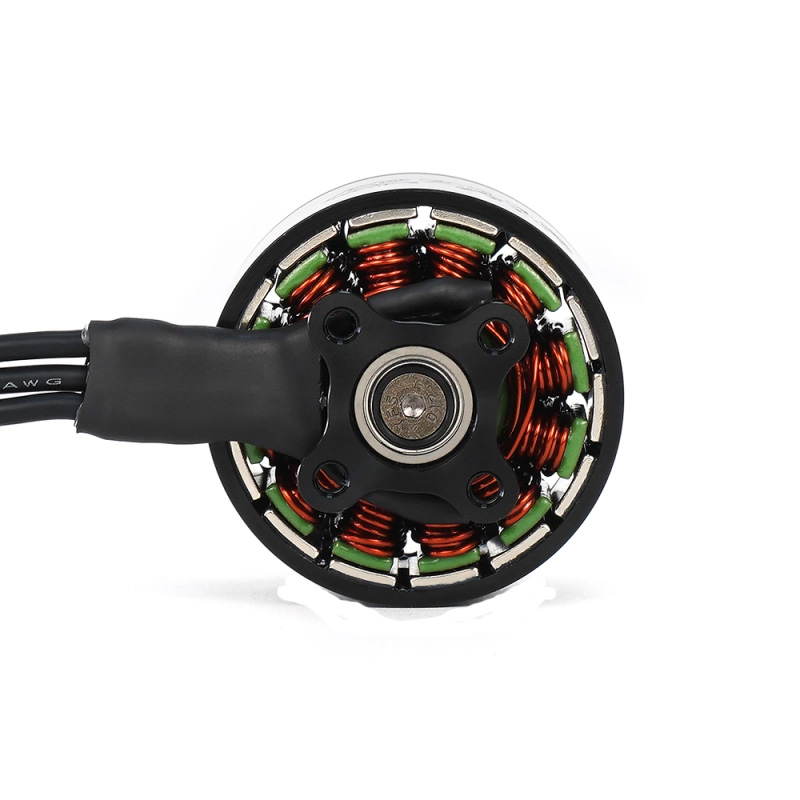

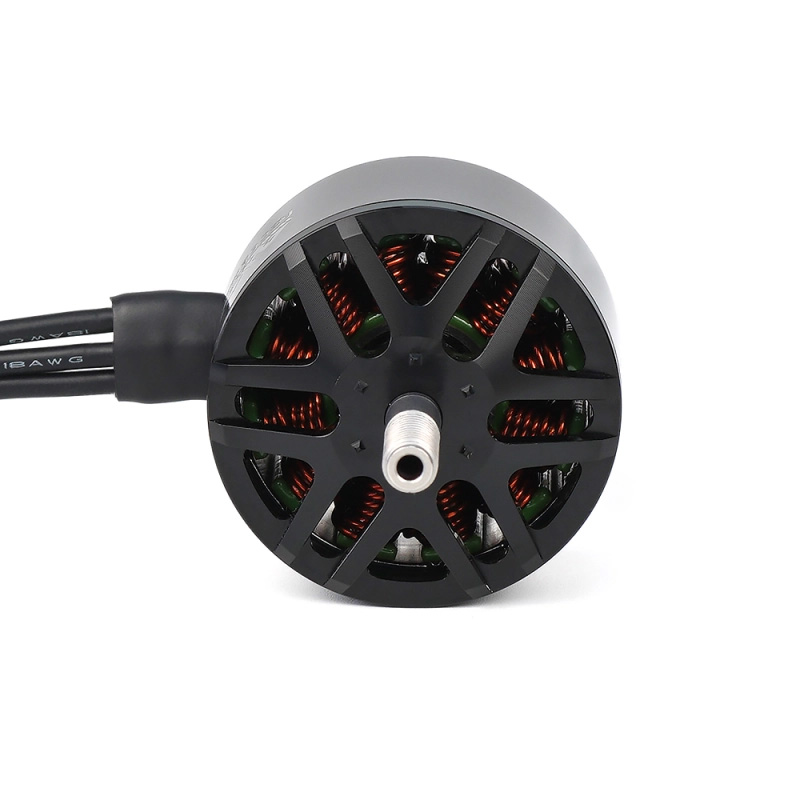

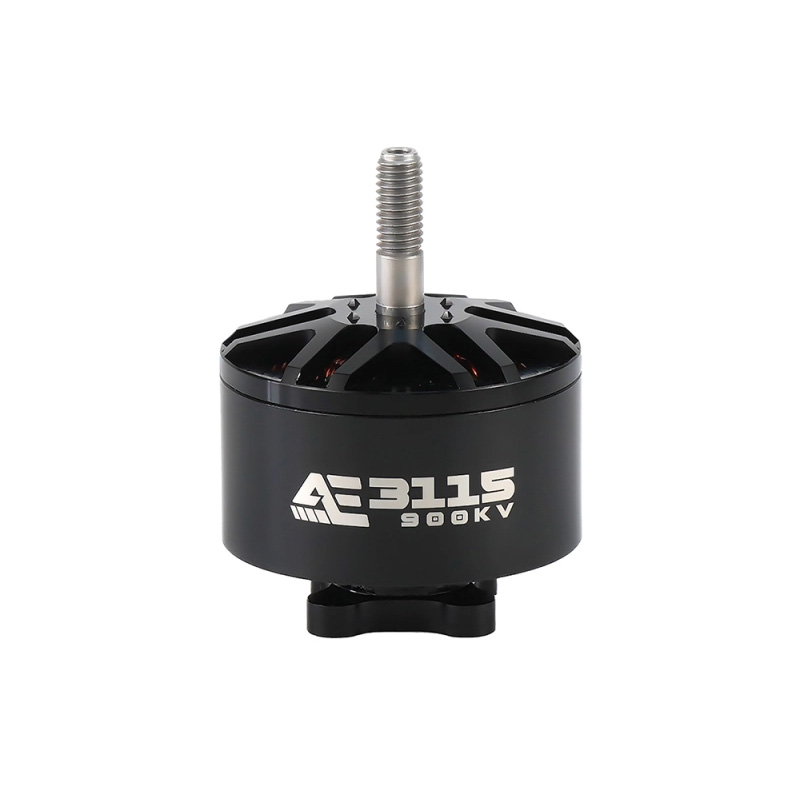

AxisFlying AE3115 900KV Brushless Motor for 10-inch FPV & Long Range Drones

Name: AxisFlying AE3115 900KV Brushless Motor for 10-inch FPV &amp; Long Range Drones
Brand: AxisFlying
SKU: DRFC-3019
Price: 3309.00 INR
Availability: OutOfStock

₹3,309.00 (Inclusive of all taxes)

Out of Stock

The AxisFlying AE3115 is a 900KV brushless motor engineered for 10-inch FPV racing and long-range drones, offering high torque and efficiency across a 3-6S LiPo voltage range with a robust 12N14P stator configuration.

Features

900KV rating optimized for high torque and efficient 10-inch propeller performance on 3-6S LiPo batteries.
Delivers up to 4185g of maximum thrust with a peak current handling of 64.7A.
Durable 12N14P stator configuration ensures reliable operation and thermal longevity.
Compact Ø37.1mm x 31.5mm motor size with a weight of 113.5g for a favorable power-to-weight ratio.
Low internal resistance of 0.046mΩ for efficient power conversion and reduced heat generation.

Out of stock

Get Notified When Available

Description

The AxisFlying AE3115 brushless motor is designed for pilots requiring sustained power and efficiency in larger FPV and long-range drone platforms. Its 900KV rating is specifically tuned for 10-inch propellers, providing the necessary torque for responsive control while maintaining efficient cruise performance on 4S to 6S battery packs.

Constructed with a 12N14P stator configuration, the motor offers smooth operation and enhanced durability under high-load conditions. The low internal resistance contributes to overall system efficiency, allowing for longer flight times and reduced thermal stress on the motor and electronic speed controllers.

Key Features

High-torque 900KV design optimized for 10-inch propellers on 3-6S LiPo systems.
Robust 12N14P stator configuration for smooth, reliable, and durable operation.
Engineered for peak performance with a maximum thrust of 4185g and 1617W continuous power.
Low 0.046mΩ internal resistance minimizes electrical losses and heat buildup.
Precision-balanced bell and shaft assembly for reduced vibration and smoother video footage.
High-grade bearings and thermal management for consistent performance in extended flight sessions.

Applications

10-inch FPV racing drones requiring high torque for aggressive maneuvers.
Long-range and endurance-focused drones built on 7-inch to 10-inch frames.
Heavy-lift and payload-carrying multirotors operating on 4S-6S power systems.
Cinematic drone platforms where smooth, efficient cruise performance is critical.

Technical Specifications

Motor Model	AE3115
KV Rating	900 KV
Voltage Range	3-6S LiPo
Max Continuous Power	1617W
Peak Current	64.7A
Max Thrust	4185g
Stator Configuration	12N14P
Motor Dimensions	Ø37.1mm x 31.5mm
Weight	113.5g ± 0.5g
Internal Resistance	0.046 mΩ

Frequently Asked Questions

What size propeller is the AxisFlying AE3115 900KV motor designed for?

The AE3115 900KV motor is optimally paired with 10-inch propellers. This KV rating provides the ideal balance of torque and rotational speed for efficient thrust and responsive control on larger FPV and long-range drone frames using 4S to 6S LiPo batteries.

What is the maximum voltage and current this motor can handle?

The AE3115 is rated for 3-6S LiPo batteries (approximately 11.1V to 25.2V). It can handle a peak current of 64.7A, with a maximum continuous power rating of 1617W. Always pair it with a suitably rated ESC (e.g., 60A+ per motor) for reliable operation.

What mounting pattern and hardware are included?

The motor includes 4 x M3 x 8mm screws for standard mounting. It also comes with an M5 flanged nylon lock nut for securing the propeller. Please check your frame's motor mounting hole pattern for compatibility, typically 16x19mm or 16x16mm for motors of this size.
