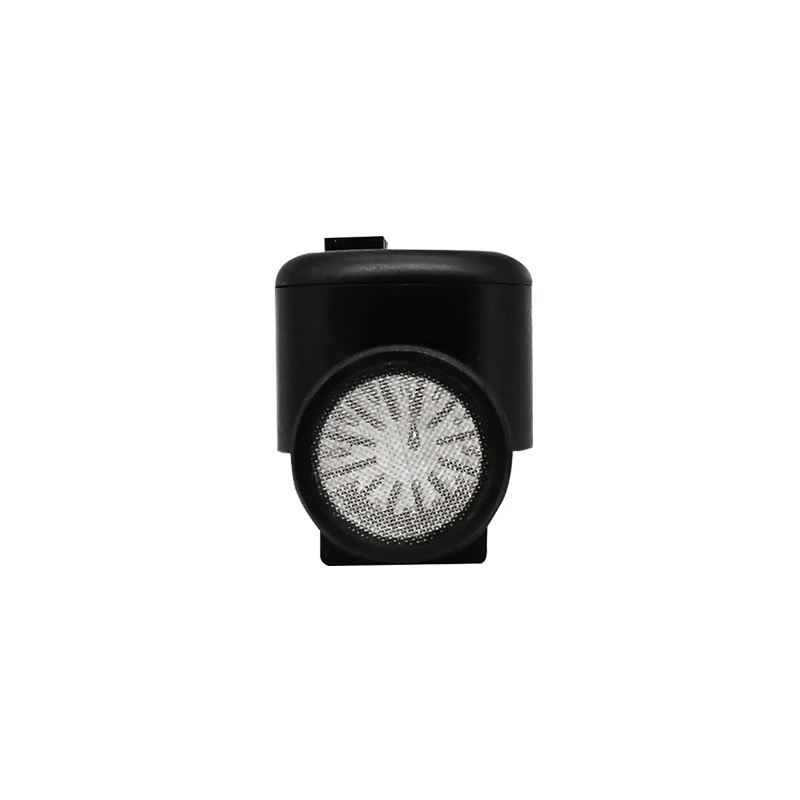

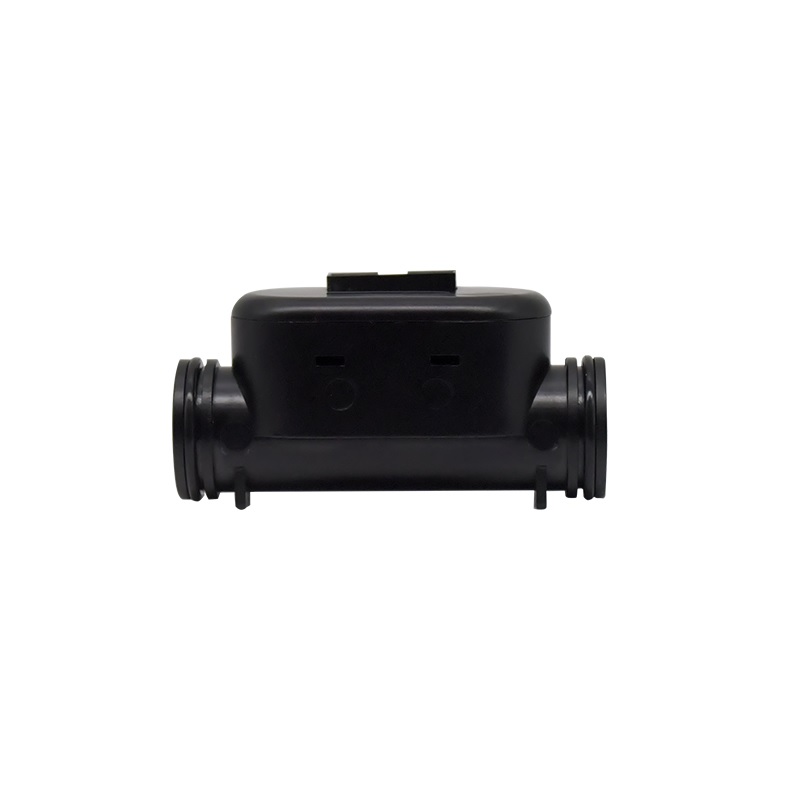

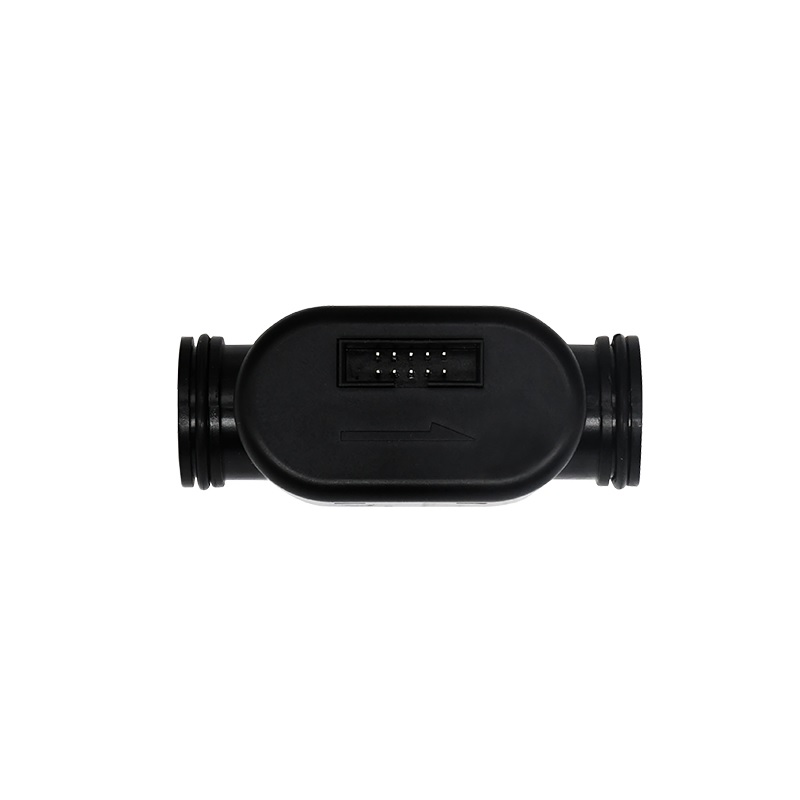

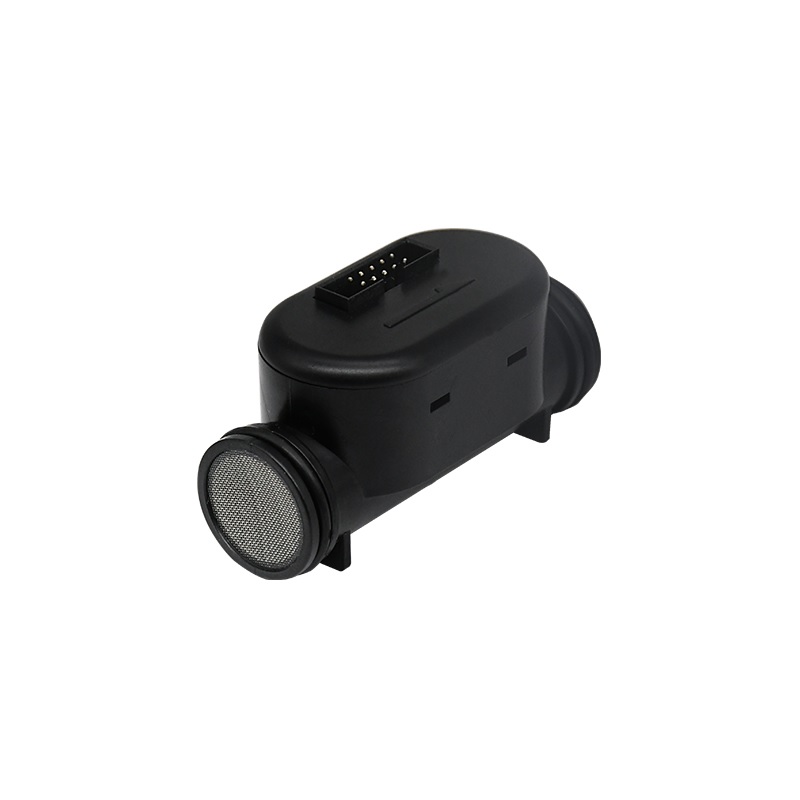

Asair AFM3100 Flow Sensor - Bidirectional Mass Flow, Temperature & Humidity Measurement
The Asair AFM3100 is a high-precision bidirectional mass flow sensor designed for measuring air, oxygen, and other non-corrosive gases. It integrates a thermal sensor chip and CMOS microprocessor for accurate flow, temperature, and humidity readings, making it suitable for integration with industrial PLCs, environmental monitoring systems, and fuel cell controllers.
Features
- Bidirectional mass flow measurement from -200 to +200 SLM
- Integrated temperature and humidity sensing capability
- Low-pressure loss design for minimal system impact
- Features full calibration and temperature compensation
- Compact form factor for versatile system integration
Out of stock
The AFM3100 mass flow sensor utilizes a proprietary thermal sensing principle, where a MEMS-based sensor chip measures the heat transfer caused by gas flow. This data is processed by an integrated high-performance CMOS microprocessor with a 24-bit ADC, ensuring high-resolution signal acquisition. The sensor’s specially designed air duct minimizes pressure loss, preserving system efficiency while enabling accurate measurement in demanding environments.
Engineered for stability, the sensor features low zero-point drift and fast response times. It provides fully calibrated, temperature-compensated output for mass flow rate, alongside simultaneous temperature and humidity readings of the gas stream. This multi-parameter output makes it a comprehensive solution for precise gas monitoring and control applications.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
