Pimoroni Nano HAT Hacker for Raspberry Pi
The Pimoroni Nano HAT Hacker is a compact 0.8mm PCB designed to provide full access to all 40 GPIO pins on your Raspberry Pi, enabling seamless stacking of additional HATs. It features clear BCM and functional pin labeling for convenient prototyping and development.
Features
- Provides full access to Raspberry Pi’s 40-pin GPIO header.
- Ultra-thin 0.8mm PCB allows stacking of other HATs or pHATs.
- Features clear BCM and descriptive functional pin labeling.
- Compatible with all 40-pin header Raspberry Pi models.
Out of stock

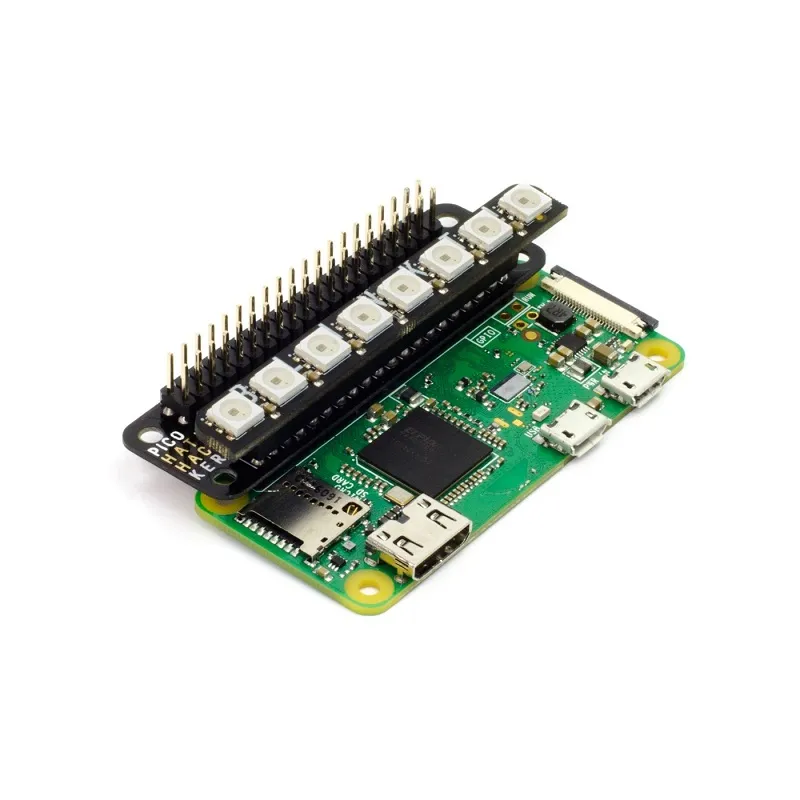

The Pimoroni Nano HAT Hacker offers complete breakout access to all 40 pins of your Raspberry Pi’s GPIO header. Its notably slim 0.8mm PCB profile, similar to SHIMs, allows it to be soldered directly onto your Raspberry Pi’s pins while preserving enough height on a standard header to accommodate an additional HAT or pHAT on top.

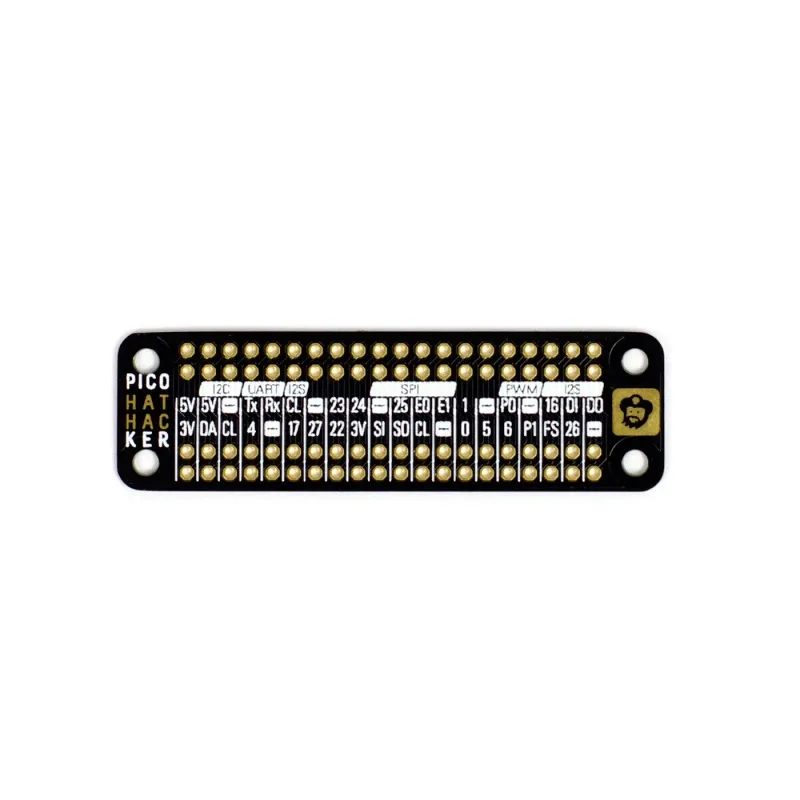

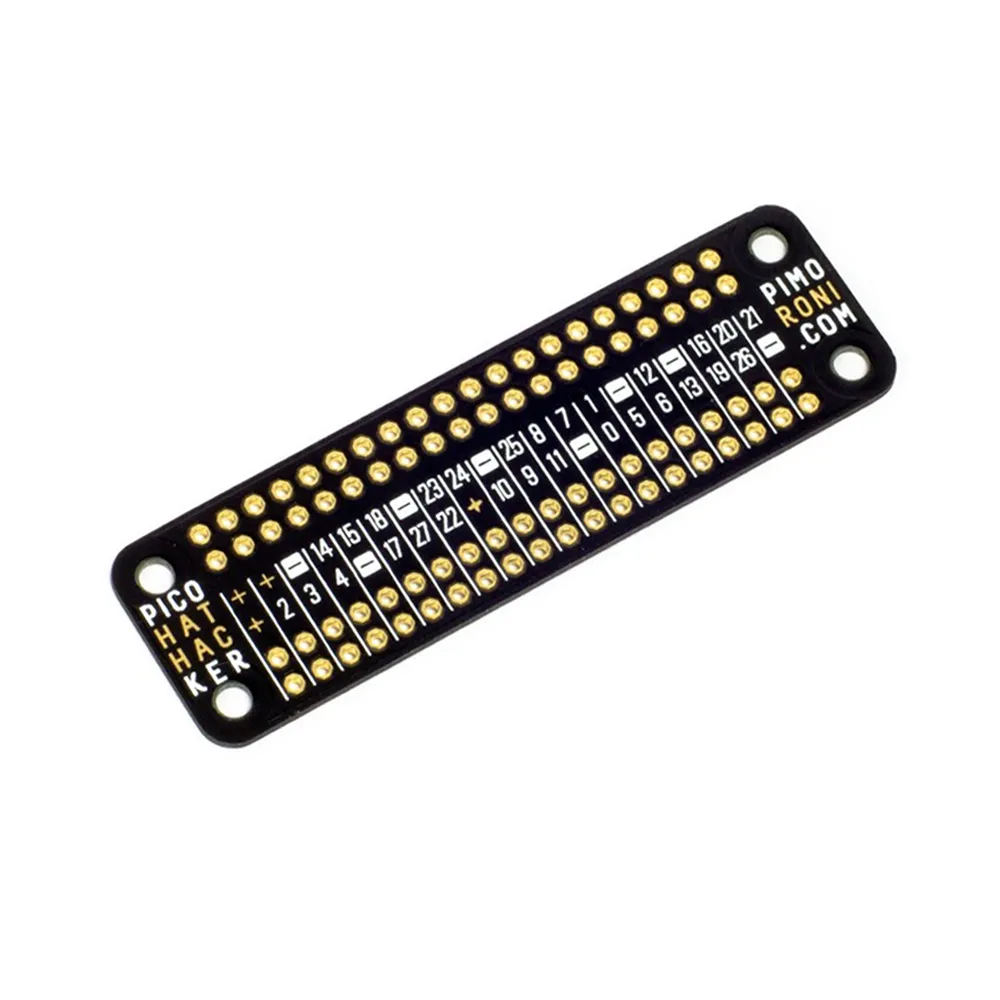

This hacker board features comprehensive pin labeling, with BCM pin numbering on one side and more descriptive labels on the other for interfaces like I2C, UART, SPI, PWM, and I2S. The dual-sided labeling allows for flexible soldering orientation based on your preferred view. This design makes it an ideal solution for developers and makers needing direct, organized access to the Raspberry Pi’s I/O lines for custom projects and expansions.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6.5 × 1.9 × 0.08 cm |
