AD8232 ECG Heart Rate Monitoring Sensor Module Kit w/ Electrode Pads & Cable

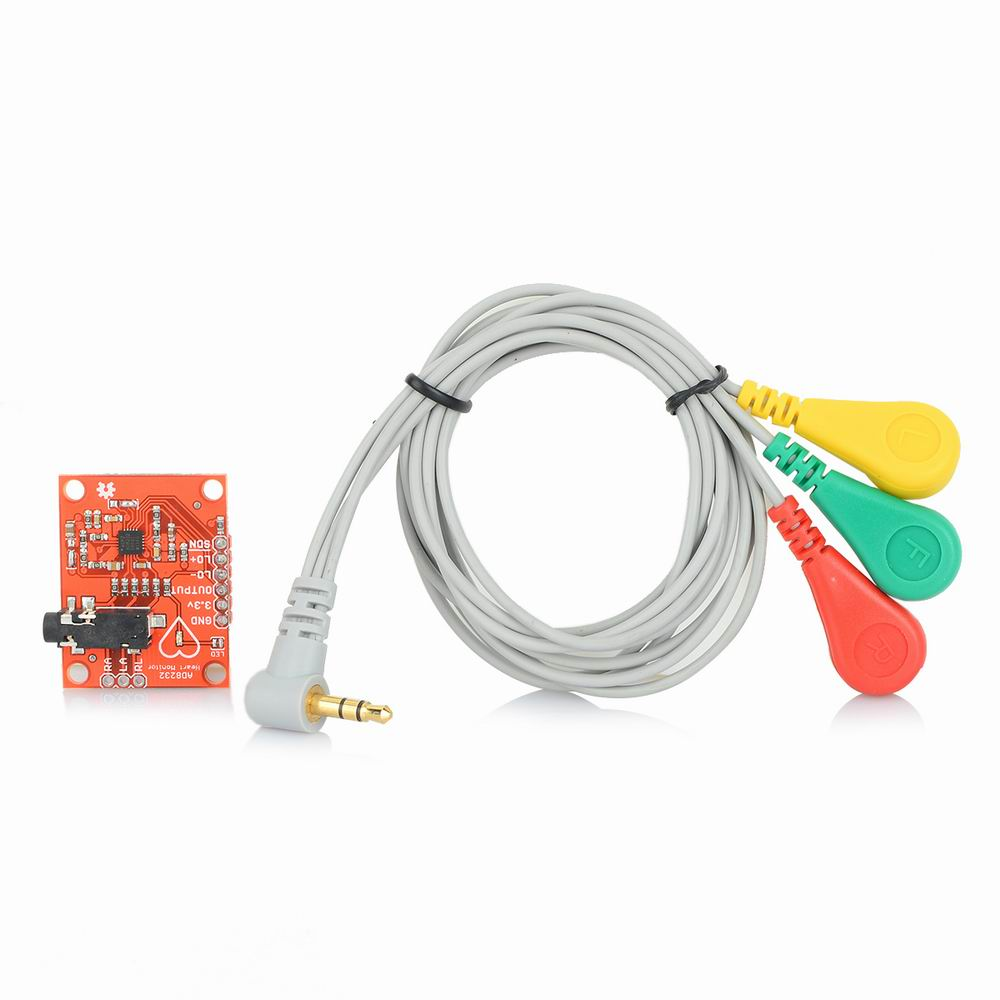

The AD8232 ECG Sensor Module is a single-lead heart rate monitor designed to extract, amplify, and filter small biopotential signals for Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms, outputting a clean analog ECG waveform.
Features
- Integrated AD8232 IC for ECG signal conditioning and amplification.
- Leads-off detection indicates when electrodes are disconnected.
- Analog output for direct connection to microcontroller ADC pins.

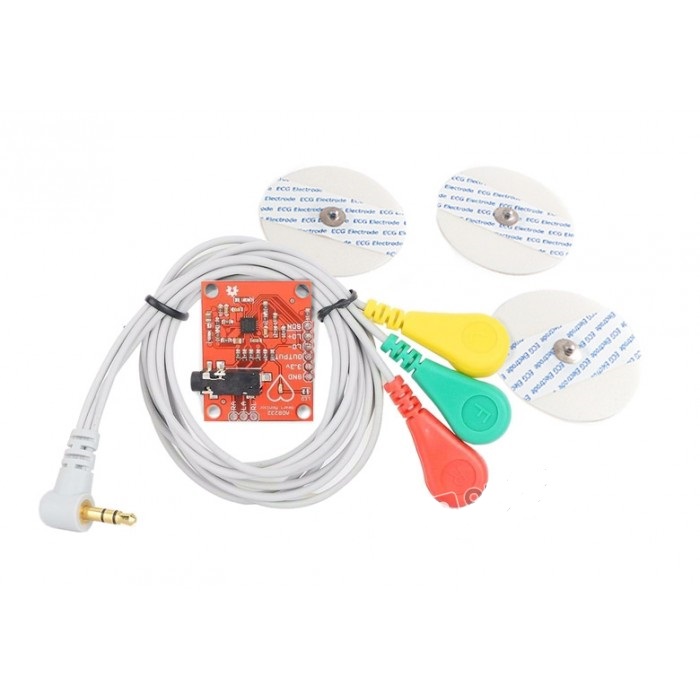

- Includes 3x disposable electrode pads and a 1m sensor cable.
- Compact module with 3.5mm jack for standard biomedical pads.
Out of stock
The AD8232 is a dedicated, integrated signal conditioning block designed for ECG and other biopotential measurement applications. It amplifies the small electrical signals generated by the heart while filtering out noise caused by motion, electrode placement, and electromagnetic interference, making it suitable for capturing clear PR and QT intervals.

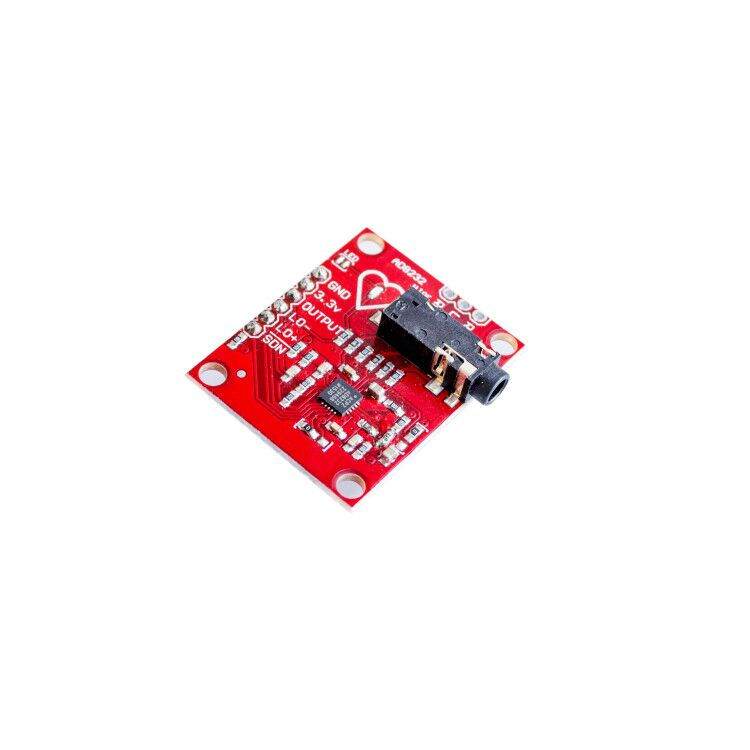

This module breaks out critical connections including RA (Right Arm), LA (Left Arm), RL (Right Leg), OUTPUT, 3.3V, GND, and a shutdown (SDN) pin. It features a pulsating LED indicator synchronized with the heartbeat and is intended for prototyping, fitness monitoring, and biological signal acquisition in non-medical, educational, or research contexts.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3.6 × 3 cm |
