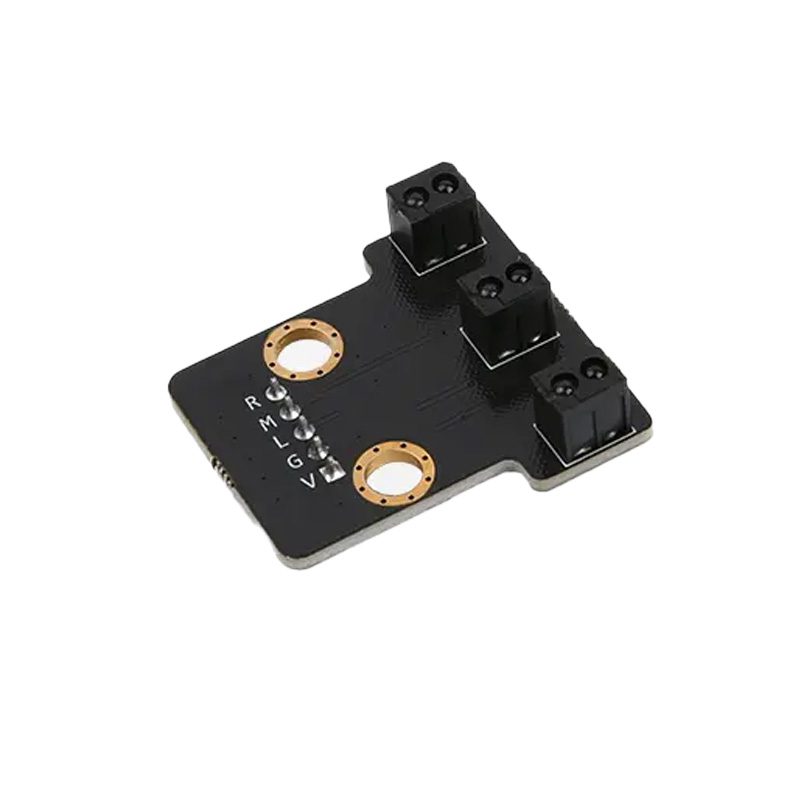

ACEBOTT QB080 3-Channel Tracking Module Easy-Plug for ESP32/Arduino
The ACEBOTT QB080 is a 3-channel infrared line tracking module designed for robotics and automation. It provides analog output signals for easy integration with 3.3V or 5V microcontroller platforms like ESP32 and Arduino, enabling precise path-following navigation for intelligent vehicles.
Features
- Three independent infrared sensors for accurate line detection and position feedback.
- Analog voltage output for each channel, compatible with ADC inputs on most microcontrollers.
- Wide 3.3V to 5V DC operating range for flexible system integration.
- Compact PCB footprint (33.1mm x 31.1mm) for space-constrained robotic platforms.
- Easy-plug connector interface for rapid prototyping with ESP32 and Arduino development boards.
Out of stock
The ACEBOTT QB080 module employs three infrared LED-phototransistor pairs to detect contrast changes on a surface, typically used for following a dark line on a light background. Each sensor outputs an analog voltage proportional to the reflected IR intensity, allowing a microcontroller to determine the vehicle’s position relative to the line and make steering corrections.
Designed for educational robotics and automation projects, the module operates within a -10°C to +50°C temperature range. Its straightforward analog interface eliminates the need for complex digital communication protocols, making it an accessible solution for path-following tasks in competitions, hobbyist builds, and introductory navigation systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3.31 × 3.11 cm |
