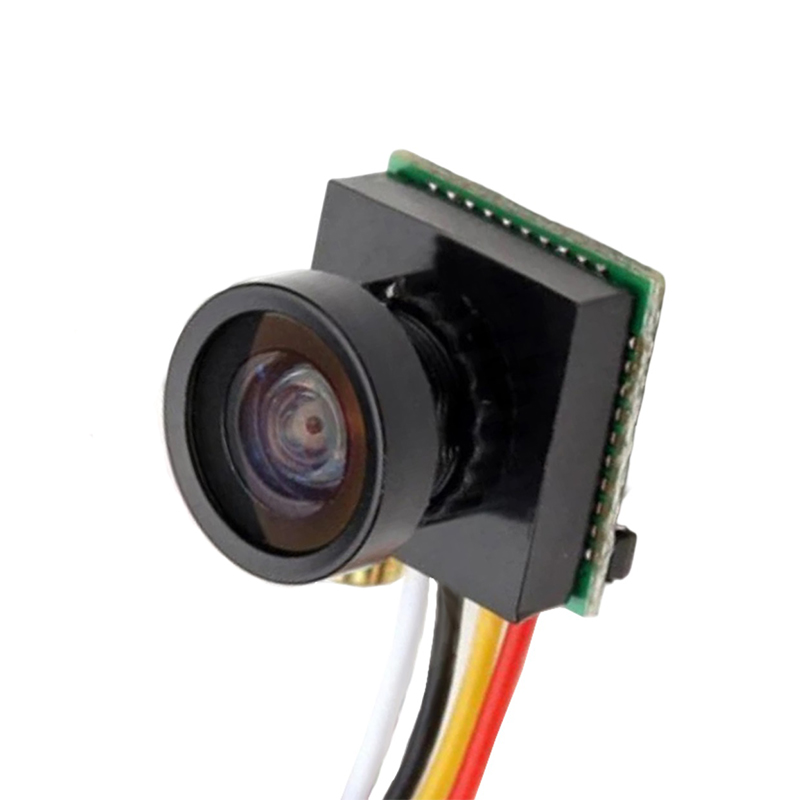

600TVL 1.8mm 1/4 CMOS 120 Degree Wide Angle Lens FPV Camera PAL/NTSC 3.7-5V

Name: 600TVL 1.8mm 1/4 CMOS 120 Degree Wide Angle Lens FPV Camera PAL/NTSC 3.7-5V
Brand: Generic
SKU: DRFC-2301
Price: 595.00 INR
Availability: OutOfStock

₹595.00 (Inclusive of all taxes)

Out of Stock

This 600TVL FPV camera integrates a 1/4-inch CMOS sensor and a 1.8mm wide-angle lens for a 120-degree field of view, delivering standard-definition analog video in PAL/NTSC formats. Operating on a 3.7-5V DC input, it is designed for integration into lightweight FPV drone builds and other RC applications.

Features

600TVL resolution for standard-definition analog video clarity.
1.8mm wide-angle lens provides a 120-degree diagonal field of view.
1/4-inch CMOS sensor for efficient image capture in variable lighting.
Supports both PAL and NTSC video output formats for global compatibility.
Low-voltage operation from 3.7V to 5V DC, suitable for direct LiPo or regulated BEC power.

Out of stock

Get Notified When Available

Description

This FPV camera is engineered for pilots requiring a reliable, entry-level analog video feed. The 1/4-inch CMOS sensor balances power consumption and light sensitivity, providing usable imagery across a range of outdoor and indoor flying conditions. The fixed 1.8mm lens offers a wide 120-degree perspective, ideal for capturing the immediate flight environment typical in FPV racing and freestyle.

Its dual-format PAL/NTSC support ensures seamless integration with a wide variety of video receivers, goggles, and monitors worldwide. The compact form factor and straightforward 3.7-5V power requirement make it a plug-and-play solution for micro to standard-sized quadcopters and other multirotor platforms.

Key Features

Standard-Definition Clarity: 600TVL resolution delivers a clear, defined analog video signal for real-time FPV piloting.
Broad Field of View: The fixed 1.8mm lens captures a wide 120-degree scene, reducing the need for constant head movement during aggressive flight.
Versatile Power Input: Compatible with a 3.7V to 5V range, allowing direct connection to a 1S LiPo or a regulated 5V BEC from most flight controllers.
Global Format Support: Switchable between PAL and NTSC standards to match regional broadcast equipment and pilot preference.

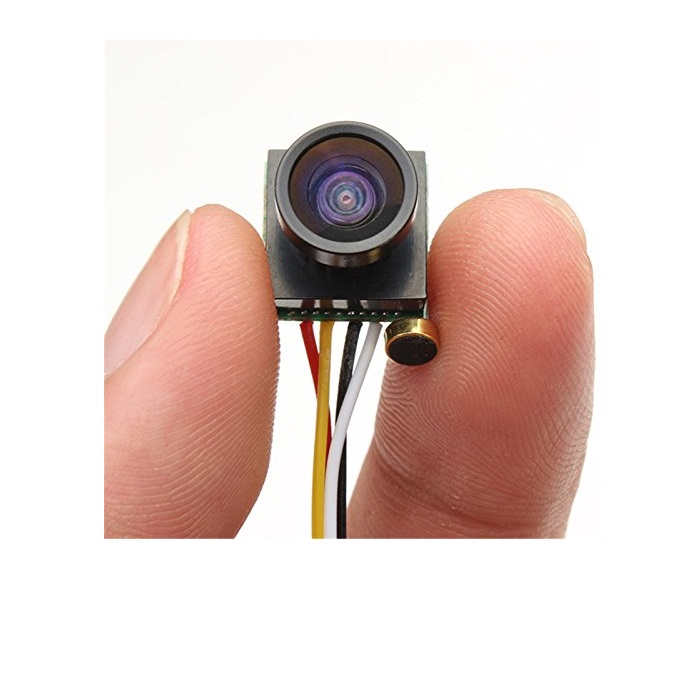

Compact and Lightweight Build: Minimal footprint and weight for easy installation on space-constrained drone frames without impacting flight performance.

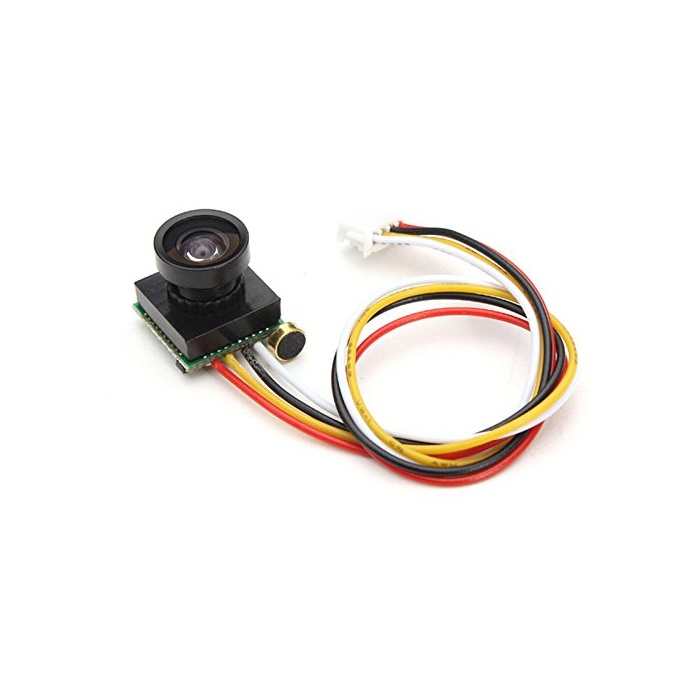

Direct-Solder or Connector Options: Typically features a simple wiring harness for direct soldering to power and video pads, facilitating clean builds.

Applications

Entry-level and micro FPV racing drone builds requiring a lightweight analog camera.
Freestyle quadcopters where a wide field of view aids in spatial awareness during tricks.
CineWhoop and ducted drone platforms for proximity flying and indoor exploration.
FPV ground vehicles and robotics projects needing a simple, low-power video solution.
DIY surveillance or monitoring systems leveraging RC and FPV components.

Technical Specifications

Item Type	FPV Camera
Resolution (TVL)	600
Image Sensor	1/4-inch CMOS
Lens	1.8mm wide-angle, fixed
Field of View (Diagonal)	120 degrees
Video Output Formats	PAL / NTSC
Operating Voltage	3.7 - 5V DC
Typical Current Draw	~100mA
Video Signal	Analog Composite (CVBS)
Connector Type	Standard 3-pin or 4-pin JST (VCC, GND, Video)

Frequently Asked Questions

What is the difference between PAL and NTSC on this FPV camera, and how do I switch between them?

PAL and NTSC are analog video broadcast standards differing in frame rate and resolution. This camera typically has a physical switch or a specific wiring/soldering pad configuration to select the format. Consult the specific wiring diagram for your unit; often, bridging a 'MODE' pad to ground or VCC sets the format. Choose PAL for a 50Hz/625-line signal common in Europe/Australia, or NTSC for a 60Hz/525-line signal common in North America/Japan.

Can I power this 3.7-5V camera directly from a 2S or 3S LiPo battery?

No, you must not connect it directly to a 2S (7.4V) or 3S (11.1V) LiPo. The camera's operating voltage range is strictly 3.7V to 5V. Exceeding 5V will permanently damage the sensor and circuitry. You must use a regulated 5V BEC (Battery Eliminator Circuit) from your ESC, flight controller, or a separate voltage regulator to step down the higher battery voltage to a safe 5V.

Is the 1.8mm lens removable or interchangeable on this camera?

Typically, no. This is an entry-level, cost-optimized FPV camera with a fixed, non-removable 1.8mm lens. The lens is usually glued or threaded permanently into the camera housing. For lens interchangeability, you would need to select a camera model specifically designed with a standard M12 or M8 lens thread mount.
