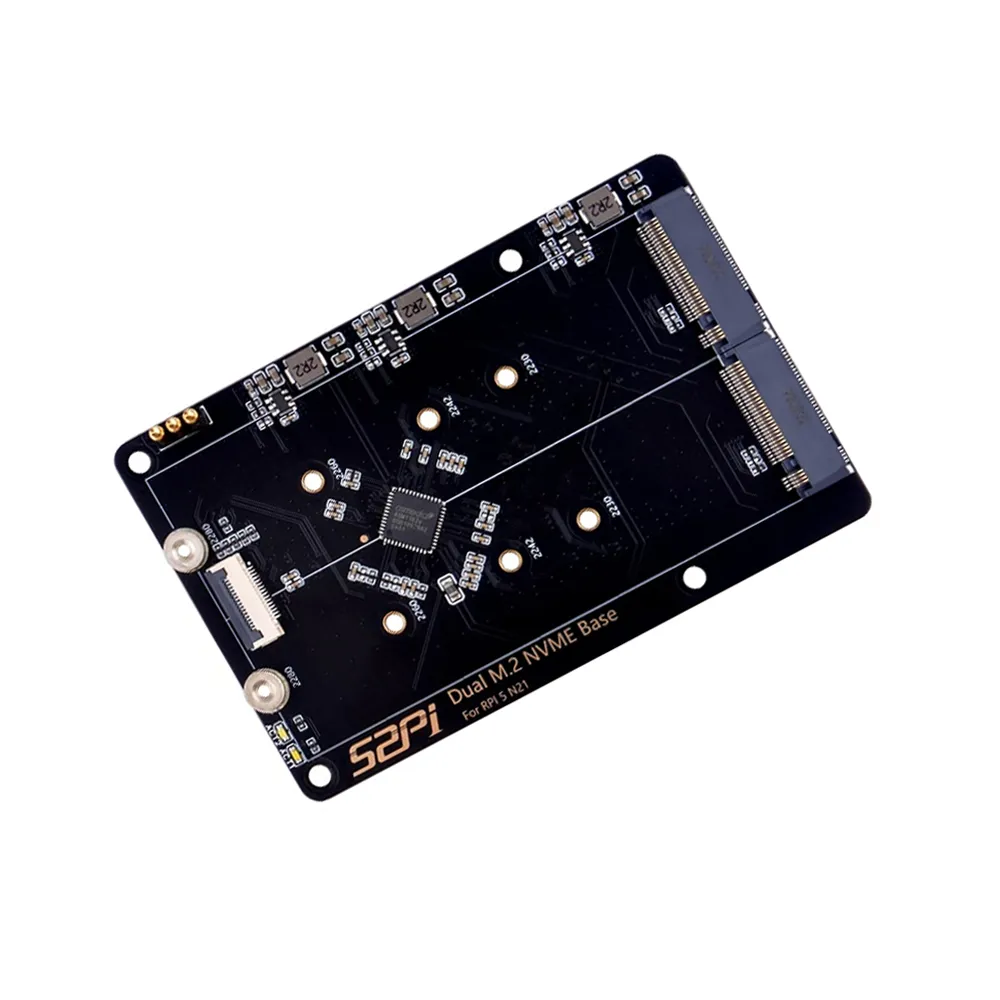

52Pi N21 Dual NVMe Base for Raspberry Pi 5
The 52Pi N21 Dual NVMe Base expands the Raspberry Pi 5’s storage capabilities with two NVMe interfaces, supporting various SSD sizes. Leveraging the ASM1182e chipset, it provides high-speed data access and flexible storage options for demanding applications.
Features
- Expands Raspberry Pi 5 storage with dual NVMe interfaces for 2230/2242/2260/2280 SSDs.
- Features the ASM1182e PCIe Gen 2 packet switch for efficient data handling.
- Ensures stable power delivery to SSDs with custom gold-plated spring pins and dual 3A DC/DC converters.
- Bottom-mounted design maintains compatibility with official Raspberry Pi 5 active cooler and top-mounted HATs.
- Supports HAT+ STANDBY power state, automatically powering off with the Pi 5.
Out of stock
The 52Pi N21 Dual NVMe Base is specifically engineered to enhance the Raspberry Pi 5 by introducing dual NVMe interfaces. This expansion board utilizes the ASM1182e PCIe Gen 2 chipset, a high-performance packet switch that significantly boosts data transfer speeds and storage flexibility for the Raspberry Pi 5 platform. Developers and makers can integrate two NVMe SSDs, supporting form factors including 2230, 2242, 2260, and 2280, to expand storage capacity and accelerate data-intensive workloads.
Designed for robust operation, the N21 base ensures reliable power delivery to connected SSDs through custom high-current gold-plated spring pins and two dedicated high-efficiency DC/DC step-down converters, each providing up to 3A. Its bottom-mounted form factor ensures it does not interfere with the Raspberry Pi 5’s official active cooler or other top-mounted HATs. The board also incorporates LED indicators for real-time drive status monitoring and supports the HAT+ STANDBY power state, optimizing power consumption by automatically shutting down when the Raspberry Pi 5 is powered off.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 11 × 6 × 3 cm |
