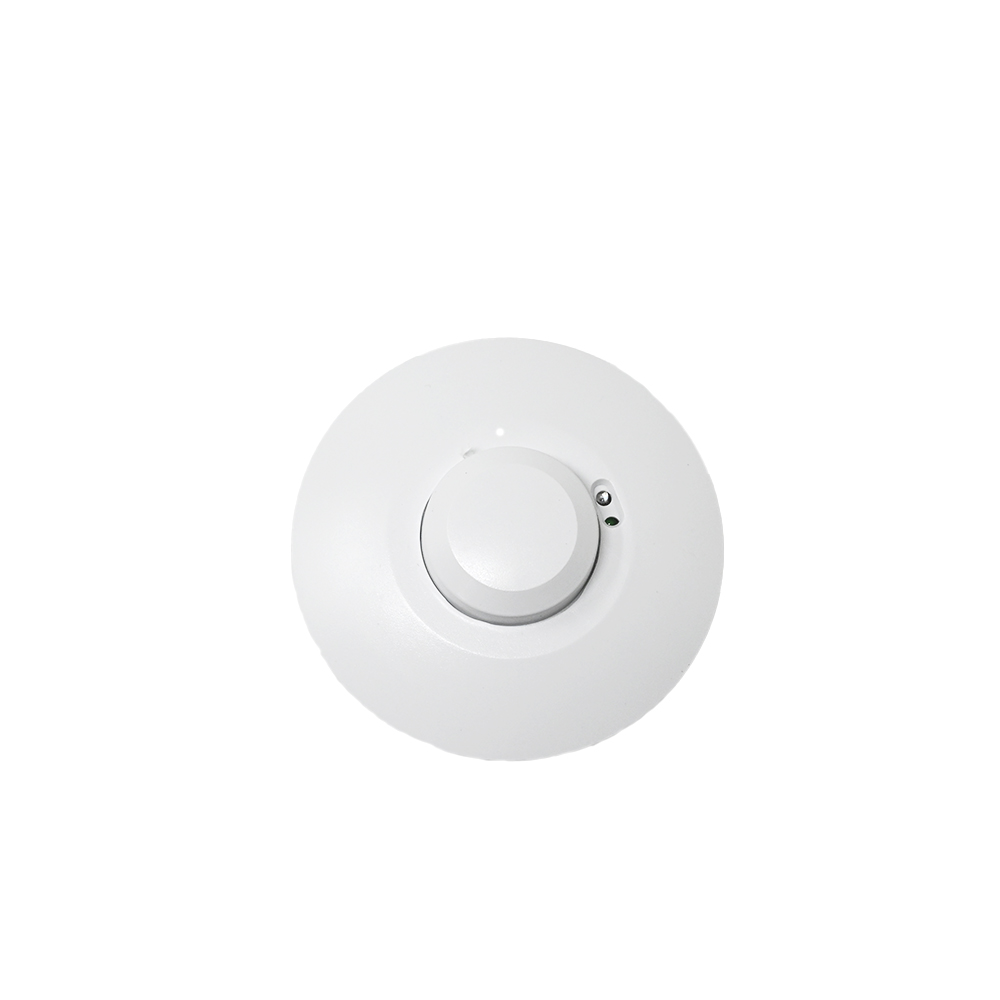

5.8GK01YZ Radar Motion Sensor AC220-240V - Ceiling Mount, 360° Coverage

This sensor is designed exclusively for AC220-240V, 50/60Hz mains power. It is not compatible with 110VAC systems. Attempting to use it at a lower voltage will result in non-operation or damage. Ensure your local supply voltage matches the 220-240VAC specification before installation.

The sensor features internal potentiometers or DIP switches (consult the specific datasheet for the exact method) for adjustment. Typically, one control sets the detection radius from 1 to 8 meters, while another sets the time delay—the period the output remains active after motion ceases—from 8 seconds up to 12 minutes. Adjust these before final mounting.

Yes, the 5.8GHz microwave signal can penetrate non-metallic materials like drywall, wood, glass, and plastic. This allows for concealed installation behind ceilings or panels. However, metal objects or foil-backed insulation will block the signal. The penetration capability is ideal for discreet security or lighting control applications.

The built-in ambient light sensor (LUX sensor) prevents the output from activating during daylight or well-lit conditions, conserving energy. Its threshold is adjustable from 2 to 2000 LUX. Set it so the sensor only triggers the connected load (e.g., lights) when the ambient light level falls below your desired threshold, such as at dusk or in a dark corridor.

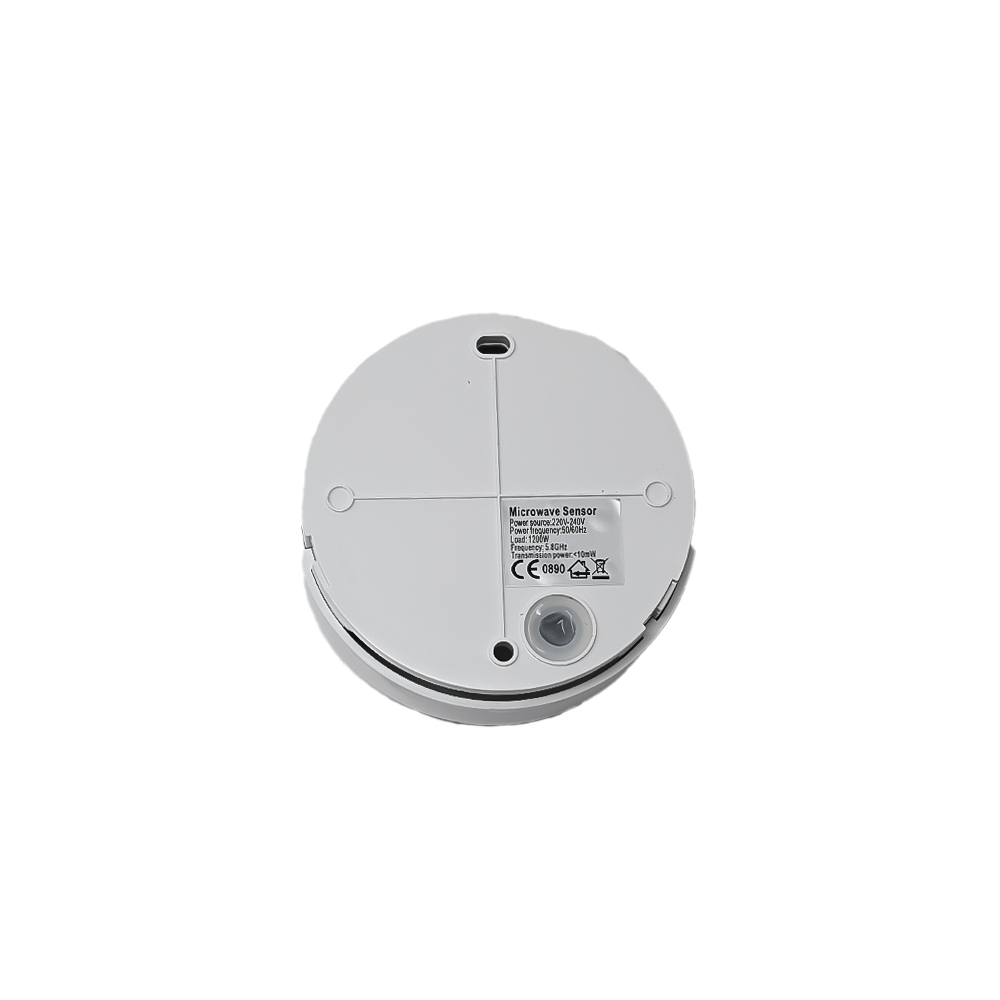

The sensor's internal relay is rated for a maximum resistive load of 1200W at 220–240VAC. This is suitable for controlling multiple LED fixtures, incandescent bulbs, or other AC devices. Do not exceed this rating, and for inductive loads (like motors or transformers), derate the capacity by 20-30% to ensure reliable operation and longevity.
