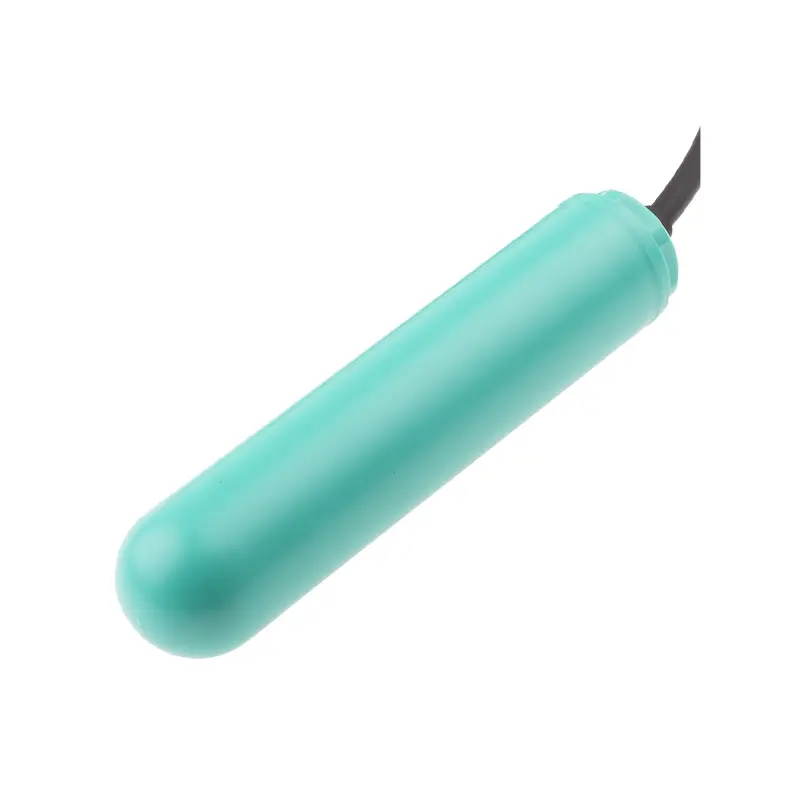

Pepperl+Fuchs LFL2-CK-U-PVC5 Float Switch, LFL Series, Cylinder Type, PVC, 250 Vac, 150 Vdc
The Pepperl+Fuchs LFL2-CK-U-PVC5 is a cylinder-type float switch designed for reliable limit level detection in industrial liquids, including water, wastewater, and aggressive fluids. It features a micro-switch mechanism rated for 250V AC/DC and a 5m PVC cable for flexible installation in tanks and vessels.
Features
- Micro-switch with integrated switching ball for reliable level detection.
- Rated for 250V AC / 250V DC switching voltage and 3A maximum current.
- Constructed with a polypropylene float and a 5m highly flexible PVC cable.
- Pressure rating up to 3 bar and operating temperature from -20°C to +70°C.
- Designed for side mounting through a G1 tap hole for versatile installation.
Out of stock
The LFL2-CK-U-PVC5 Float Switch operates on a mechanical principle where a polypropylene float, containing a micro-switch with a switching ball, activates when the float’s orientation moves beyond a specific horizontal switching angle. This action opens or closes the electrical circuit, providing a clear signal for high or low liquid level detection. The device is engineered for stable performance in demanding industrial environments.
Its construction is suited for integration into process automation systems, PLCs, and control panels. The 5-meter PVC cable offers installation flexibility, allowing the sensor to be positioned at the required level within a tank. The switch’s specifications ensure compatibility with common industrial control voltages and its robust design handles a variety of liquid media.
Additional Information
| Weight | 0.35 kg |
|---|
