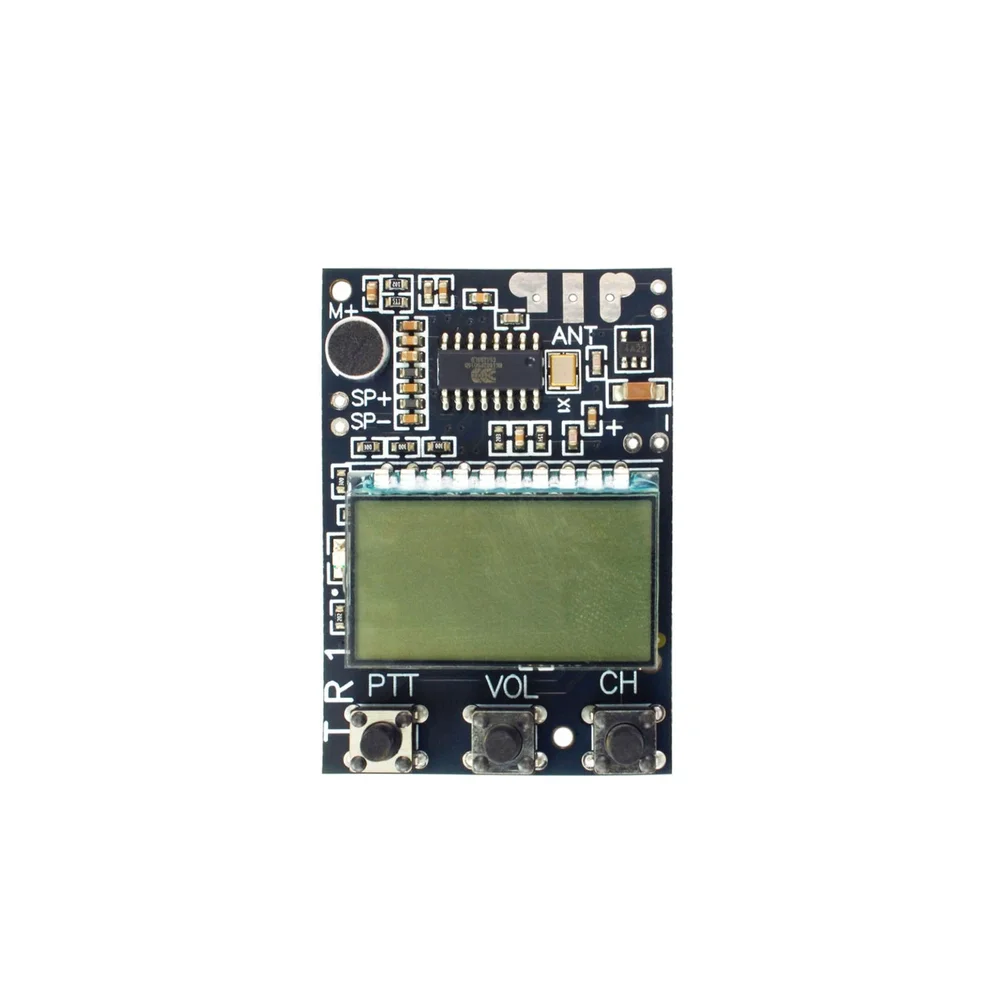

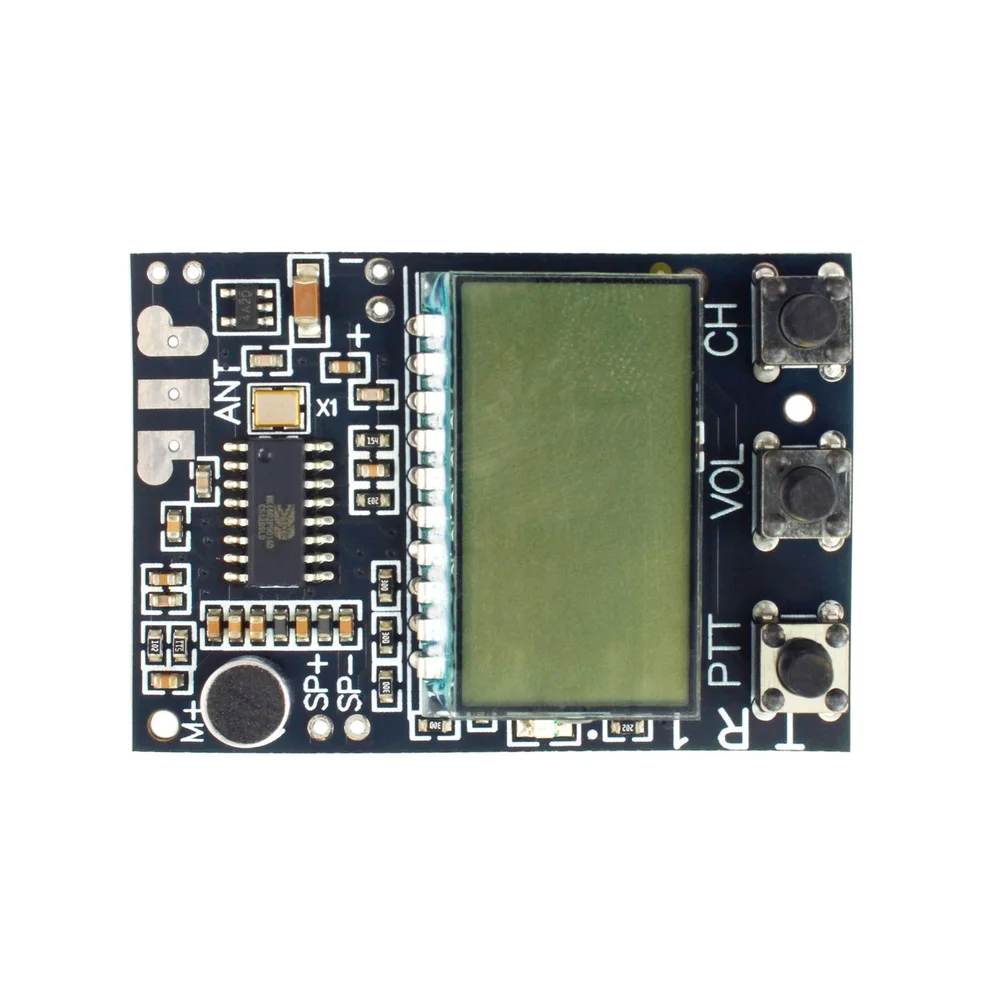

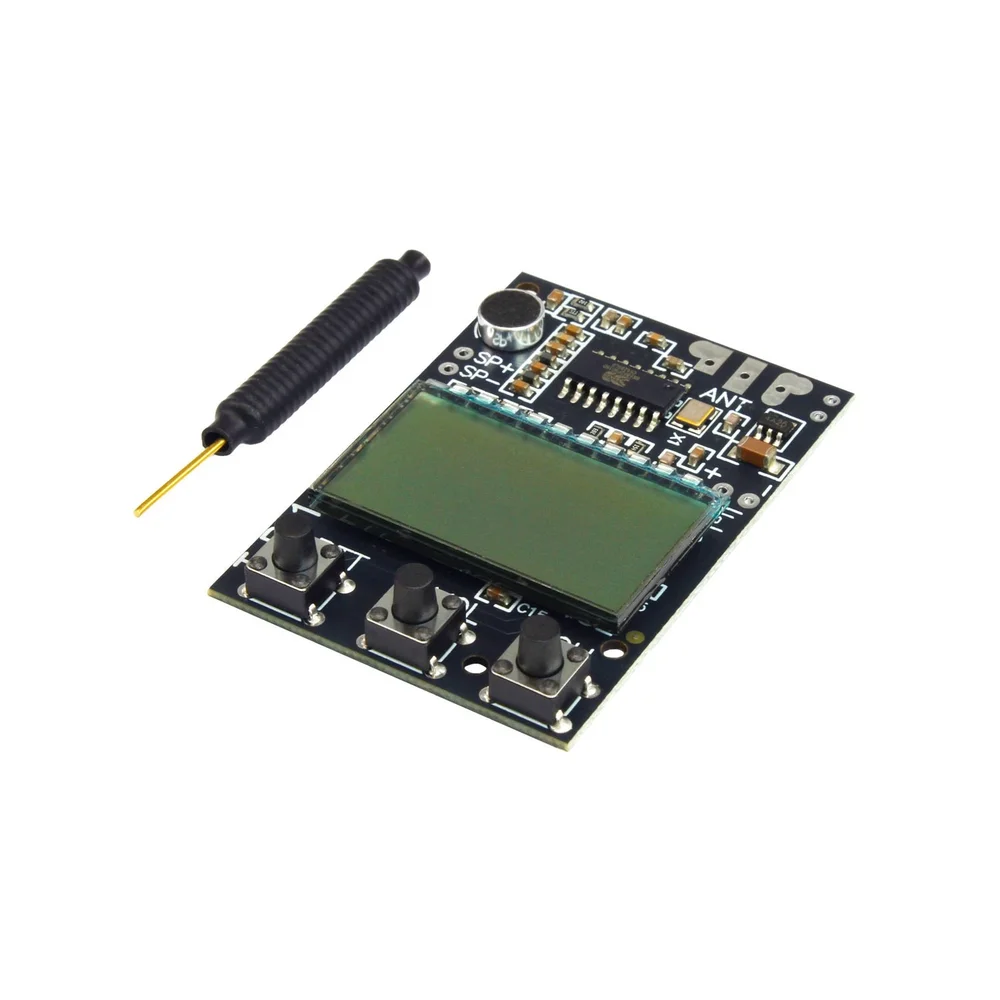

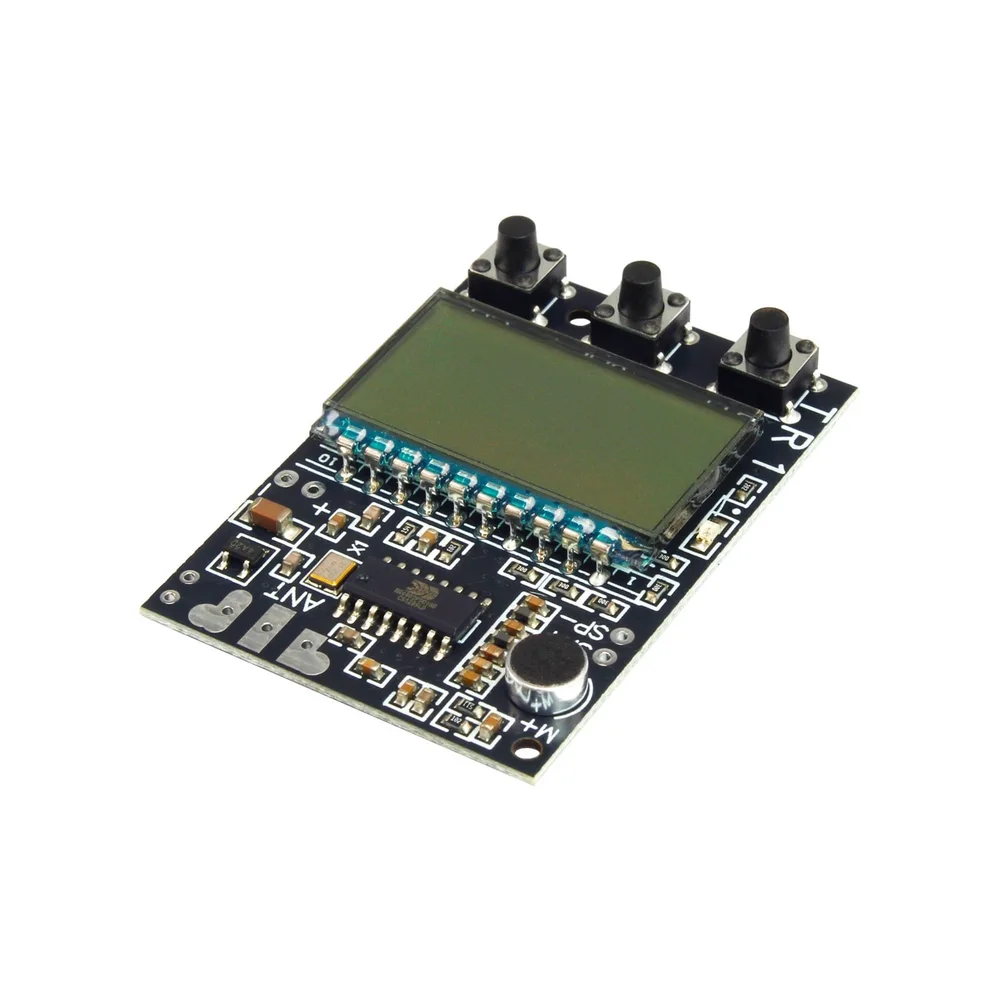

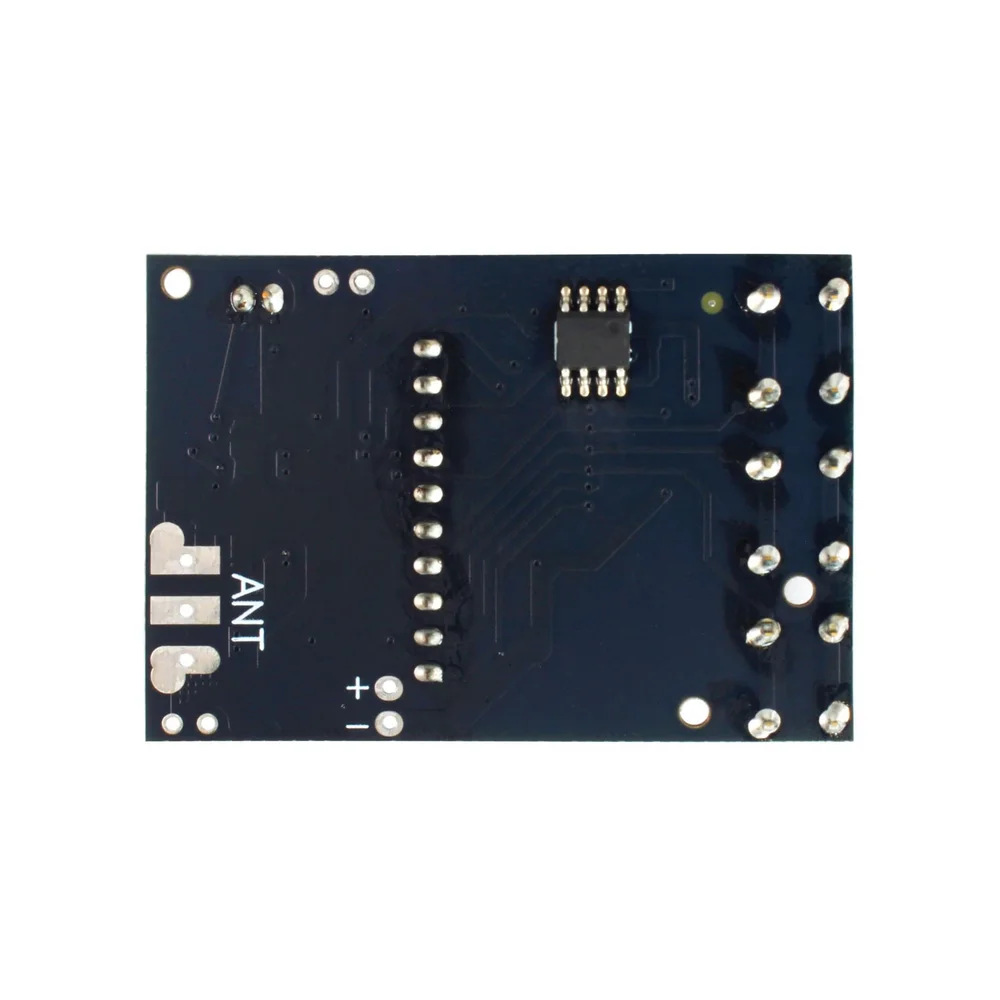

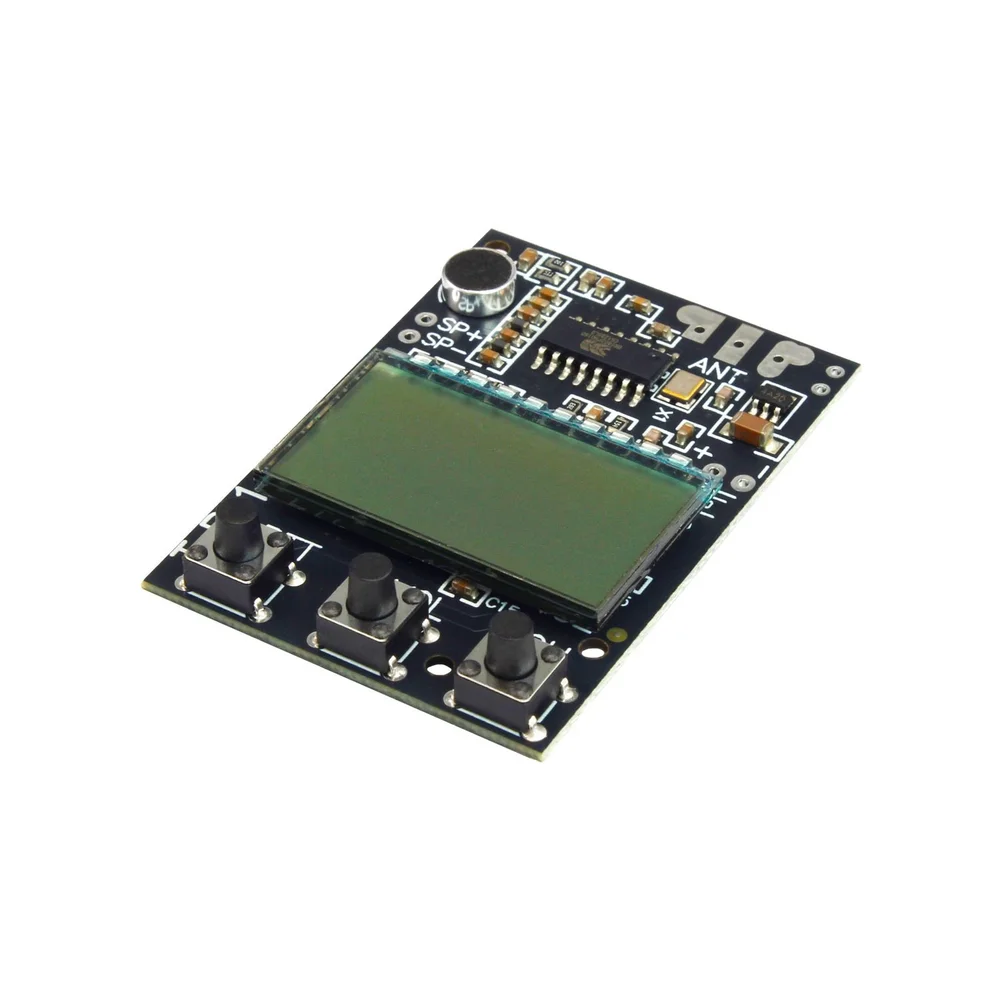

Two-way Radio Transceiver Circuit Board for Walkie-talkie

You need to solder a microphone, an 8Ω 0.5W speaker, a power source (3.3V-6V DC), and optionally push-to-talk switches. The included antenna must be soldered to its pad. A potentiometer is often used for volume control. Basic audio amplification circuitry may be required for optimal speaker output depending on your design.

Frequency selection is typically hardware-based, determined by crystal oscillators or resonator components on the board. This specific model supports fixed channels like 27.125MHz or 467.6625MHz. To change frequency, you must replace the corresponding crystal or tuning components, as it is not software-configurable. Refer to the board's schematic for the specific frequency-determining parts.

Supply 3.3V to 6V DC to the designated VCC and GND solder pads. Audio input (microphone) and output (speaker) connect via specific solder points. The microphone input expects a low-level audio signal, while the speaker output drives a small 8-ohm speaker directly. Ensure correct polarity and consider adding coupling capacitors in your audio path for signal clarity and DC blocking.
