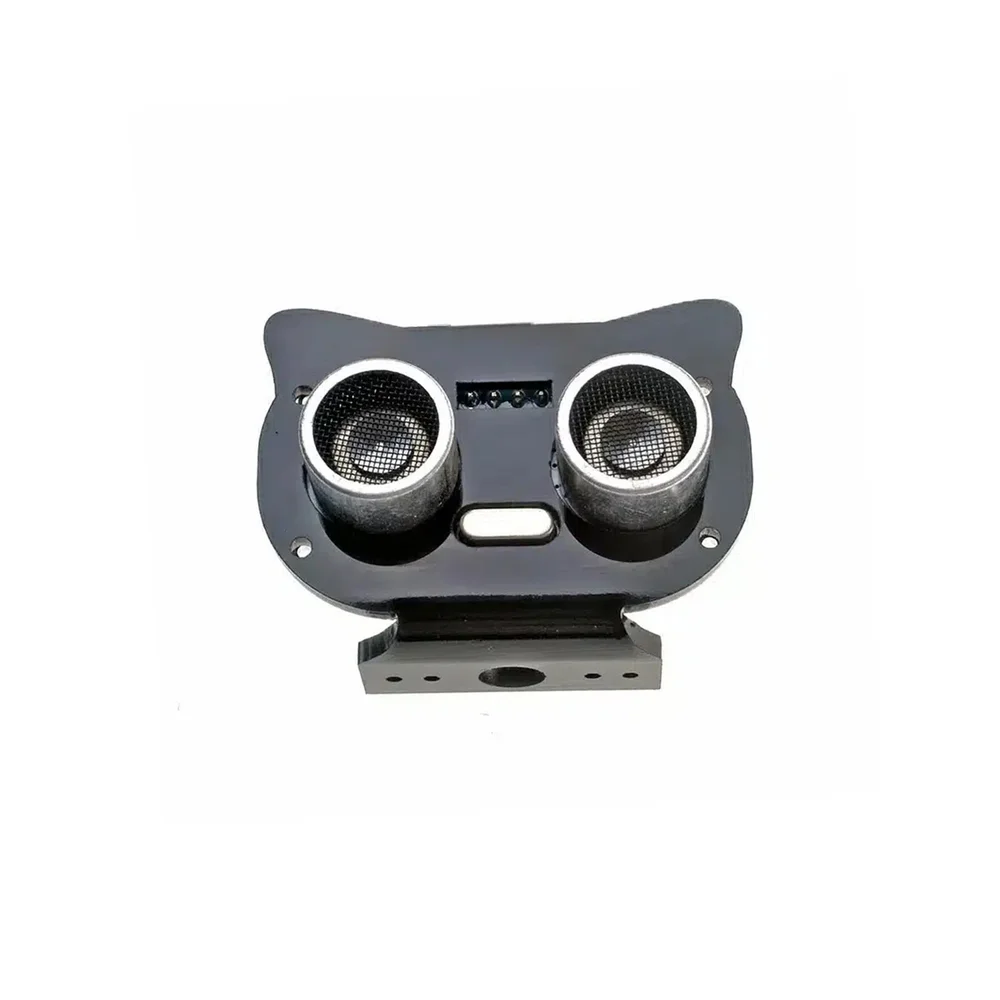

Generic Acrylic Fixed Bracket For HC-SR04 Ultrasonic Module
SKU: SENS-4140
📋 GST Invoice Available

Generic Acrylic Fixed Bracket For HC-SR04 Ultrasonic Module

₹51.00 (Inclusive of all taxes)
Out of Stock

This acrylic fixed bracket provides a secure, tool-free mounting solution for the HC-SR04 ultrasonic distance sensor, ensuring stable alignment for accurate ranging in robotics, automation, and DIY electronics projects.

Features

  • Precision-engineered acrylic bracket for secure HC-SR04 module mounting
  • Tool-free installation with universal mounting holes for flexible surface attachment
  • Moisture and UV-resistant acrylic construction for durable indoor/outdoor use
  • Ensures stable sensor positioning to minimize misalignment and improve measurement accuracy
  • Lightweight design (6g) adds minimal weight to your project assembly

Out of stock

Description

This fixed mounting bracket is designed specifically for the HC-SR04 ultrasonic sensor module, providing a rigid and precisely aligned housing. The transparent acrylic material offers a balance of structural rigidity and lightweight properties, contributing to stable sensor operation by preventing vibration-induced measurement errors.

The bracket features a snap-fit or tool-free design that securely holds the HC-SR04 module in place, with pre-drilled holes that match the sensor’s mounting pattern. This ensures the ultrasonic transmitter and receiver elements remain correctly oriented for optimal sound wave propagation and echo reception, which is critical for consistent distance measurement performance in applications ranging from simple obstacle detection to precise level sensing.

Key Features

  • High-quality acrylic construction for durable and lightweight mounting
  • Precision-molded to ensure perfect fit and alignment with HC-SR04 sensor module
  • Universal mounting holes enable installation on various surfaces and structures
  • Environmental resistance to moisture and UV exposure for extended outdoor usability
  • Tool-free installation design simplifies assembly and integration into projects
  • Enhances system reliability by providing vibration-dampened sensor mounting
  • Transparent material allows visual inspection of sensor connections and status LEDs

Applications

  • Robotics and autonomous vehicle obstacle avoidance systems using HC-SR04 sensors
  • DIY electronics projects requiring stable mounting for ultrasonic distance measurement
  • Liquid level monitoring and tank gauging setups in educational or prototyping environments
  • Automation and security systems integrating ultrasonic presence detection
  • Educational kits and STEM projects demonstrating ultrasonic ranging principles

Technical Specifications

MaterialAcrylic
CompatibilityHC-SR04 Ultrasonic Sensor Module
Mount TypeFixed Bracket
InstallationTool-free / Easy Mount
Environmental ResistanceMoisture & UV Resistant
Weight6 g
Shipping Weight0.010 kg
Shipping Dimensions10 × 5 × 2 cm

Frequently Asked Questions

Is the HC-SR04 ultrasonic sensor included with this bracket?

No, this listing is for the acrylic mounting bracket only. The HC-SR04 ultrasonic sensor module must be purchased separately. The bracket is designed specifically to hold and align that particular sensor model.

Does this bracket come with screws for mounting?

No, this bracket is supplied without screws. The design typically allows for tool-free installation or can be secured using standard M2 or M3 screws, which are not included. You may need to provide appropriate fasteners based on your mounting surface.

Can this acrylic bracket be used outdoors?

The acrylic material offers some resistance to moisture and UV exposure, making it suitable for short-term outdoor or protected outdoor use. For prolonged direct sunlight or harsh weather conditions, additional environmental shielding for the sensor electronics themselves is recommended.

How does this bracket improve HC-SR04 sensor performance?

The bracket secures the HC-SR04 module firmly, preventing movement and misalignment that can cause inaccurate distance readings. Stable mounting ensures consistent ultrasonic transducer orientation, which is critical for reliable echo detection and measurement repeatability in dynamic applications like mobile robots.

Package Includes

  • 1 x Acrylic Fixed Bracket For HC-SR04 Ultrasonic Module (without screw)

Additional Information

Weight 0.01 kg
Dimensions 10 × 5 × 2 cm
