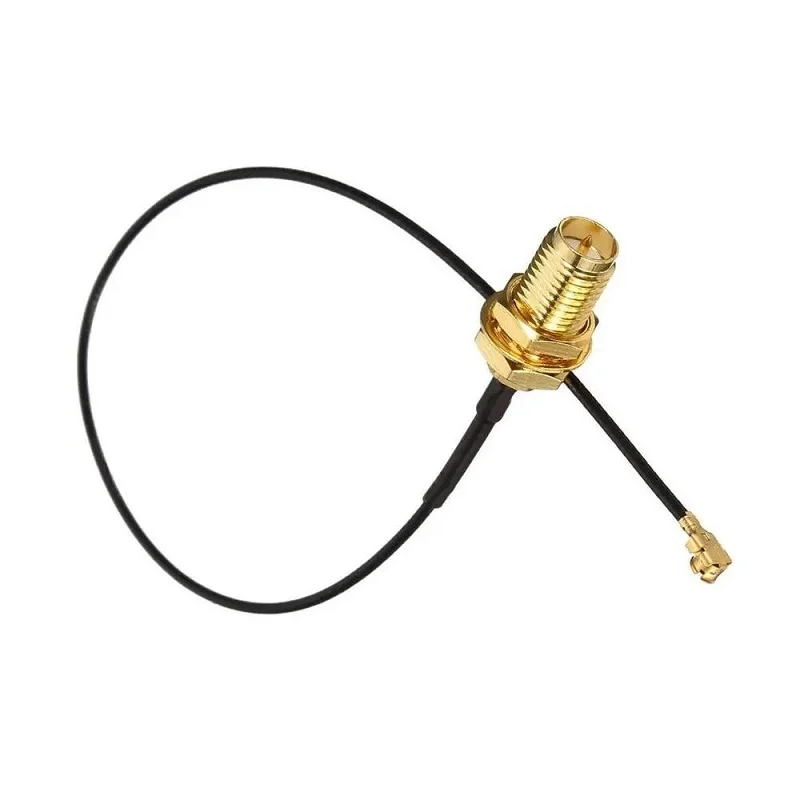

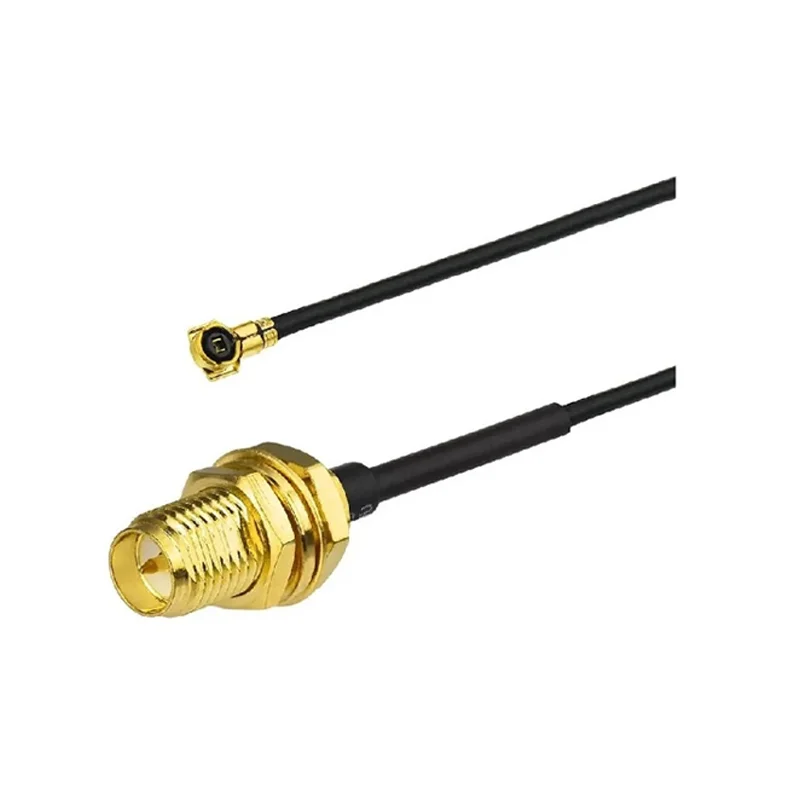

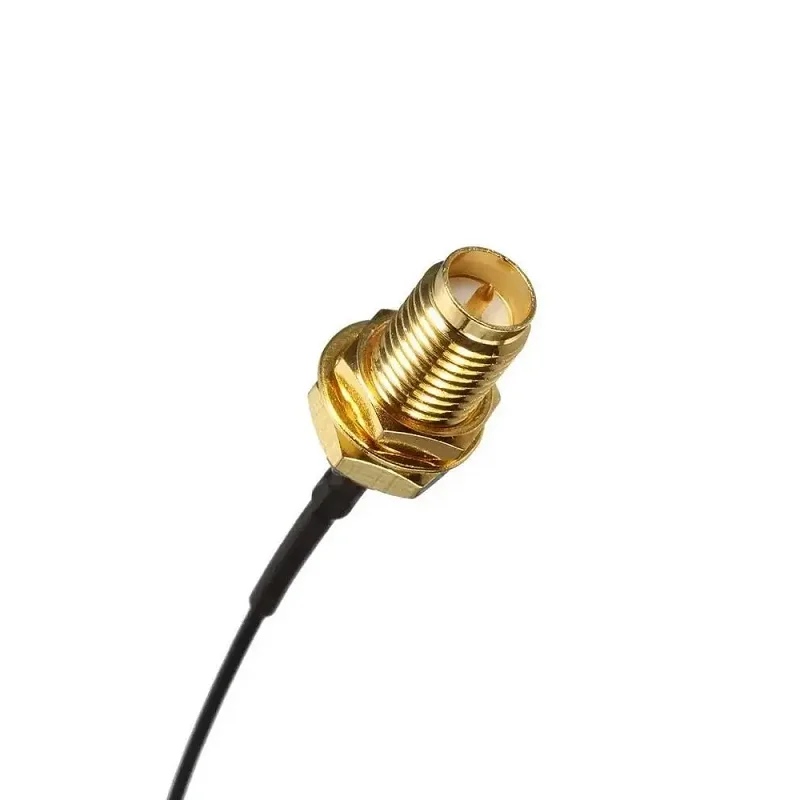

20cm RP-SMA Female to IPEX1 Cable RG1.13
A 20cm RG1.13 coaxial pigtail cable featuring an RP-SMA female connector on one end and an IPEX1 (MHF1) connector on the other, designed for interfacing between external antennas and compact wireless modules.
Features
- Standardized RF Interface: Connects RP-SMA female antenna ports to IPEX1 (MHF1) module sockets, enabling flexible antenna placement for Wi-Fi, Bluetooth, and cellular modules.
- Low-Loss RG1.13 Cable: Thin and flexible coaxial construction minimizes signal attenuation, preserving RF performance for IoT and wireless communication applications.
- Precise 13mm Threaded Connector: Ensures a secure, vibration-resistant connection to RP-SMA male antenna bases, critical for stable RF links.
- Compact 20cm Length: Provides sufficient reach for routing within enclosures while maintaining a tidy and low-profile installation.
Out of stock
This RP-SMA female to IPEX1 pigtail cable is a fundamental RF interconnect for wireless system integration. The RP-SMA (Reverse Polarity SMA) female connector mates with standard RP-SMA male antennas, a common configuration on many consumer and IoT access points. The IPEX1 (also known as MHF1 or U.FL) connector is a miniature, push-on interface found on compact Wi-Fi, Bluetooth, 4G LTE, and GNSS modules from Espressif, AI-Thinker, Quectel, and others.
The cable utilizes RG1.13 coaxial cable, a thin and flexible type with a characteristic impedance of 50 ohms, matching standard RF systems. Its 20cm length offers practical flexibility for routing within device enclosures, helping to position an external antenna for optimal signal reception while keeping the module securely mounted. The 13mm threaded section on the RP-SMA connector ensures a mechanically robust and electrically consistent connection, preventing signal degradation from loose fittings.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 8 × 10.5 × 0.5 cm |
