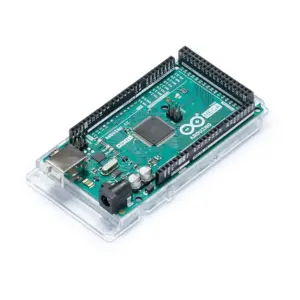

MEGA 2560 R3 Dev Board with ATmega2560 & CH340G
This is a MEGA 2560 R3 compatible development board, built around the ATmega2560 microcontroller and featuring a CH340G USB-to-serial converter. It offers extensive I/O capabilities, making it ideal for a broad spectrum of Arduino-based embedded projects and prototyping.
Features
- Powered by the robust ATmega2560 microcontroller at 16 MHz.
- Features 54 digital I/O pins (15 PWM) and 16 analog inputs for versatile connectivity.
- Integrated CH340G USB-to-serial chip ensures reliable computer communication.
- Includes a USB host interface for Android-based phone connectivity via MAX3421e IC.
- Equipped with the 1.0 pin-out for enhanced shield compatibility, including SDA/SCL and IOREF pins.
Out of stock
The ATmel MCU ATMEGA2560-16U MEGA 2560 R3 Improved Version CH340G Board serves as a powerful microcontroller platform based on the ATmega2560. This board is designed to offer a comprehensive development environment with its 54 digital input/output pins, including 15 capable of PWM output, and 16 analog input pins. It integrates a CH340G for USB-to-serial communication, providing a reliable interface for programming and debugging.
Beyond standard capabilities, this board uniquely features a USB host interface, powered by the MAX3421e IC, enabling direct connectivity with Android-based phones for accessory development. It also incorporates essential components such as a 16 MHz crystal oscillator, a power jack, an ICSP header, and a reset button. The Rev3 board includes the enhanced 1.0 pin-out, adding dedicated SDA/SCL pins near AREF and an IOREF pin, improving compatibility with various Arduino shields operating at different voltage levels.
Additional Information
| Weight | 0.034 kg |
|---|---|
| Dimensions | 11.1 × 5.4 × 1.2 cm |
