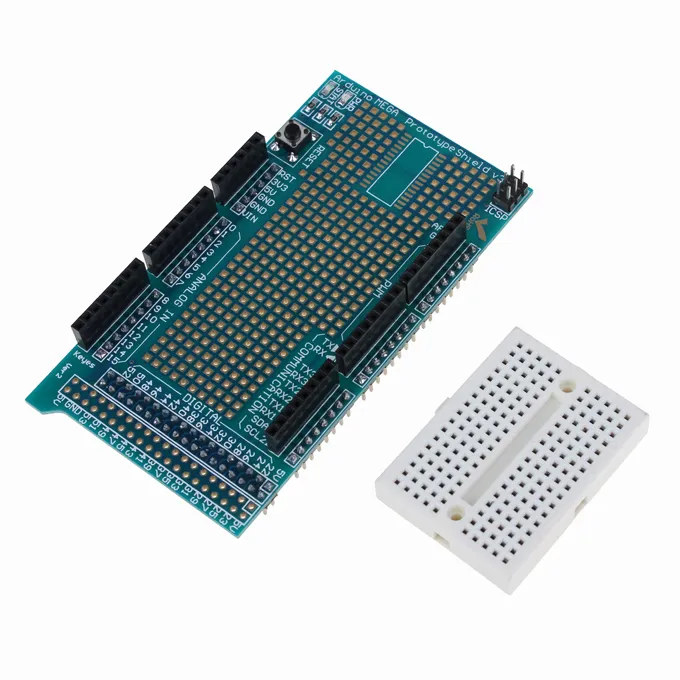

Arduino Mega Prototype Shield V3.0 w/ Mini Breadboard
The Prototype Shield V3.0 allows for easy circuit building and customization on your Arduino Mega. It supports direct soldering of components or utilizing an included mini breadboard for rapid prototyping, expanding the Mega’s capabilities with custom add-on circuits.
Features
- Designed for seamless compatibility with Arduino Mega development boards.
- Features versatile prototyping options including direct soldering pads and a mini breadboard area.
- Integrates extra connections for all I/O pins, facilitating complex custom circuit designs.
- Includes a convenient reset button and indicator LEDs for power (PWR) and status (STAT).
- Provides dedicated space for both through-hole and surface-mount components (SOP28).
Out of stock

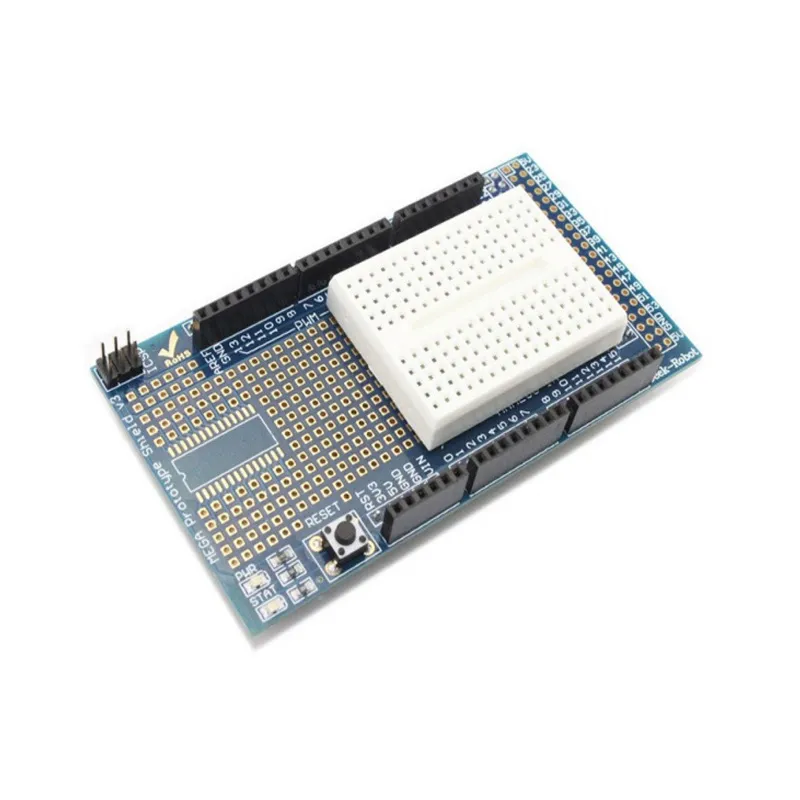

The Proto Shield V3.0 for Arduino Mega offers an adaptable platform for extending your Arduino projects with custom electronics. Engineers and makers can solder their own components directly onto the shield’s prototyping area, or quickly assemble test circuits using the included 170-point mini breadboard, which securely adheres to the shield.
This shield significantly enhances the Arduino Mega’s utility by breaking out all I/O pins to additional header connections, making it straightforward to integrate sensors, actuators, and custom logic. With ample space for mounting both through-hole and surface-mount integrated circuits, it serves as an ideal base for creating specialized modules or testing proof-of-concept designs efficiently. Its robust design, complete with three screw holes, allows for secure mounting in enclosures or on various surfaces, ensuring stability for your finished projects.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 10.2 × 5.6 cm |
