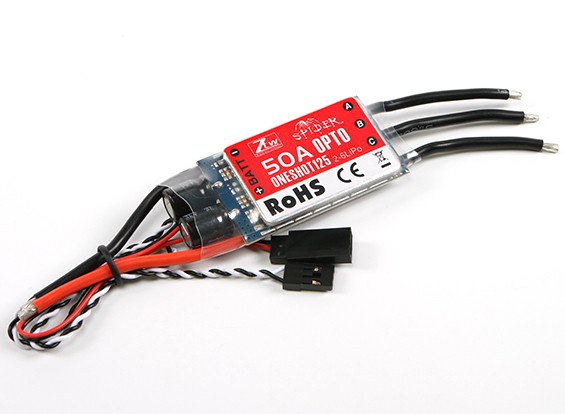

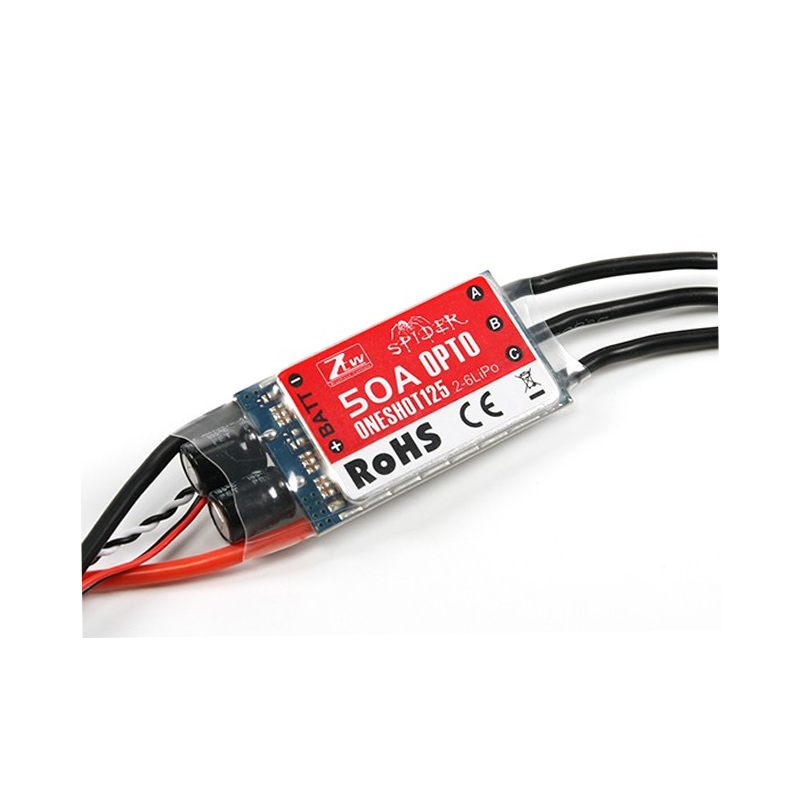

ZTW 50A OPTO Multi-Rotor ESC 2-6S w/12V Out SimonK
This ZTW 50A OPTO Multi-Rotor ESC supports 2-6S LiPo input, providing reliable 50A continuous current for multirotor applications. Pre-flashed with SimonK firmware, it ensures responsive throttle control and includes a 12V auxiliary output for FPV gear or LEDs.
Features
- 50A continuous / 60A burst current for robust performance.
- Supports wide 2-6S LiPo input voltage range (7.4V-22.2V).
- Pre-flashed SimonK firmware for rapid throttle response.
- Includes 12V auxiliary output for powering FPV cameras or LEDs.
- OPTO design ensures clean signal to flight controller by eliminating BEC noise.
Out of stock
The ZTW 50A OPTO Multi-Rotor ESC is engineered for demanding drone and multirotor applications, delivering consistent and reliable power. With support for 2S to 6S LiPo batteries (7.4V–22.2V), it provides a continuous 50A current with burst capability up to 60A. Its factory pre-flashed SimonK firmware is renowned for its fast, smooth, and accurate throttle response, which is crucial for agile and stable multirotor flight characteristics. While an OPTO ESC, it notably includes a convenient 12V auxiliary output, perfect for powering FPV cameras, video transmitters, or additional LED lighting without the need for separate voltage regulators.
This ESC is built with an optimized PCB layout and low-resistance MOSFETs, contributing to efficient thermal dissipation and overall durability. Integrated safety features include thermal overload protection to prevent component damage during intense operation, signal-loss shutdown for enhanced flight safety, and a safe-arm sequence to prevent unintended motor starts. Measuring 55 × 30 × 13 mm and weighing 48 g, this compact and robust speed controller is an ideal choice for medium to large multirotor builds that require high-current capability and precise motor control.
Additional Information
| Dimensions | 5.5 × 3 × 1.3 cm |
|---|
