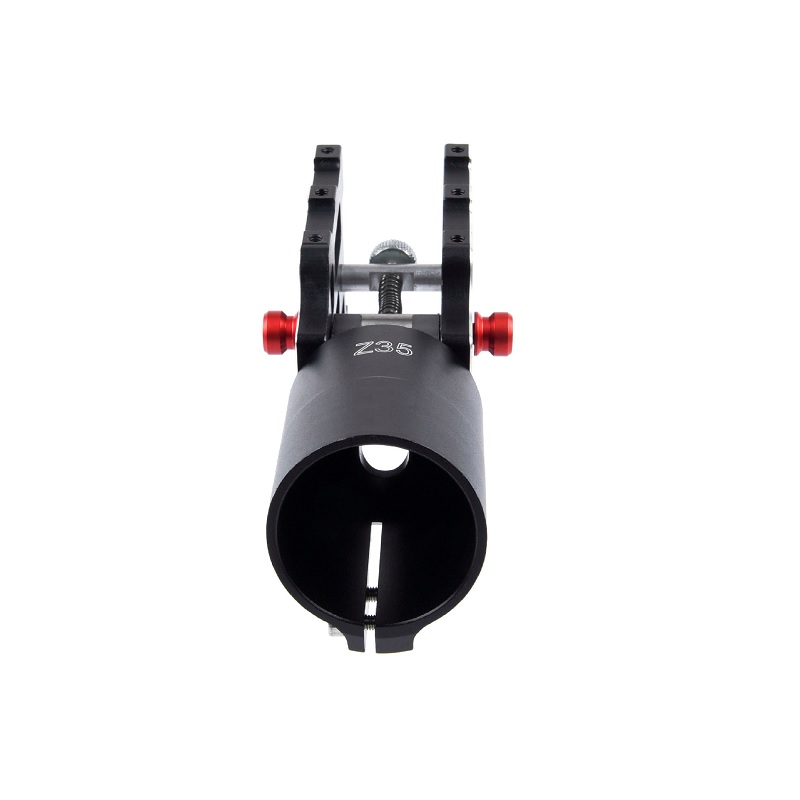

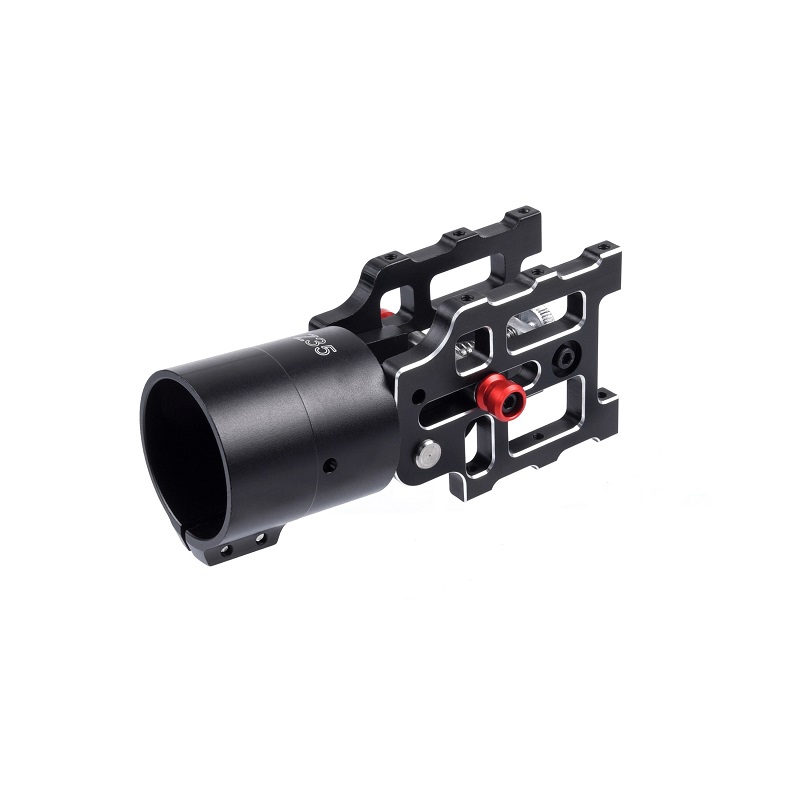

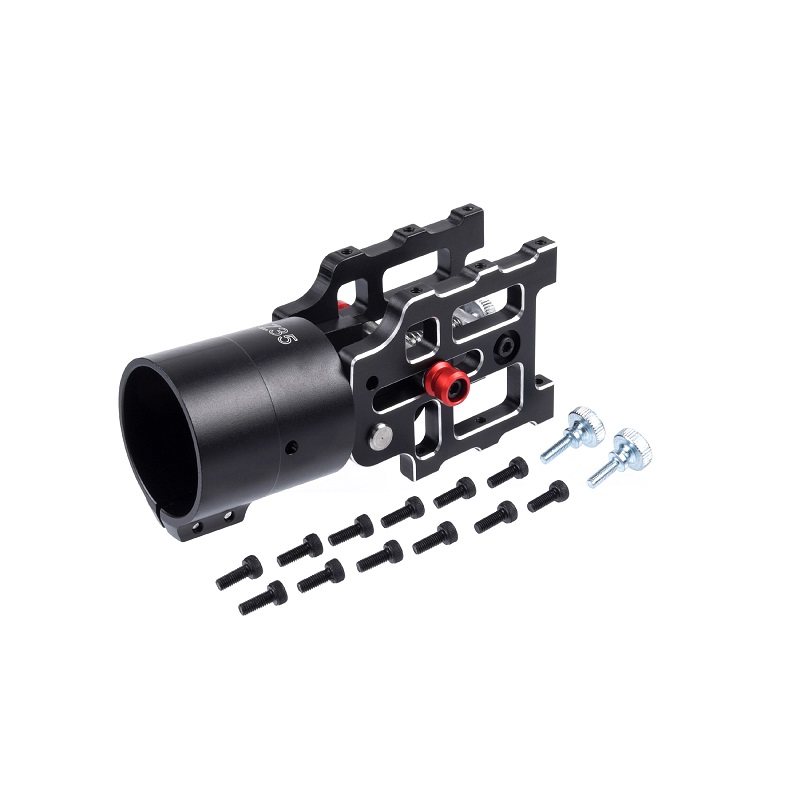

Z35 V3 Aluminum Folding Arm Tube Joint
The Z35 V3 Aluminum Folding Arm Tube Joint is engineered for robust UAV applications, featuring a 35mm inner diameter and a 5-degree uptilt for enhanced flight dynamics. This precision CNC-machined component is ideal for auto-edition RC quadcopters, hexacopters, and multirotor platforms requiring durable and secure arm folding mechanisms.
Features
- Features a 35mm inner diameter, compatible with standard carbon fiber tubes for multirotor frames.
- Incorporates a 5-degree uptilt angle, optimizing flight stability and control for various UAV configurations.
- Constructed from durable CNC aluminum for superior strength and resistance to deformation under stress.
- Single screw locking mechanism provides a secure, virtual-space-free connection, preventing arm movement during flight.
Out of stock
The Z35 V3 Aluminum Folding Arm Tube Joint delivers a critical structural component for advanced multirotor drone builds, ensuring both portability and structural integrity. Its square backrest design, combined with thick CNC metal construction, offers exceptional strength, mitigating bending deformation and eliminating virtual spaces once locked. The extended backrest design specifically addresses and resolves issues of rebound phenomenon experienced with earlier folding mechanisms after tightening screws.
This V3 iteration introduces a refined single screw locking structure, which significantly enhances the connection between the carbon tube and the folding seat, ensuring a more secure and stable assembly. Furthermore, the internal moving shaft has been upgraded from a copper shaft to a higher strength stainless steel variant. This improvement directly tackles the issue of shaft bending over prolonged use, thereby boosting the overall longevity and reliability of the folding arm system in demanding flight conditions.
Additional Information
| Dimensions | 17 × 11 × 1 cm |
|---|
