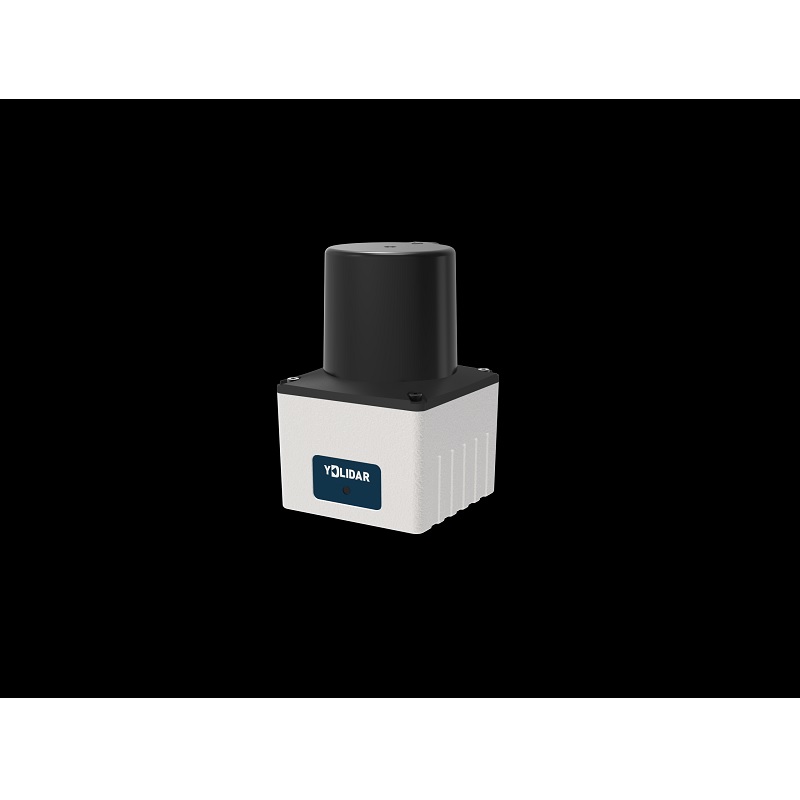

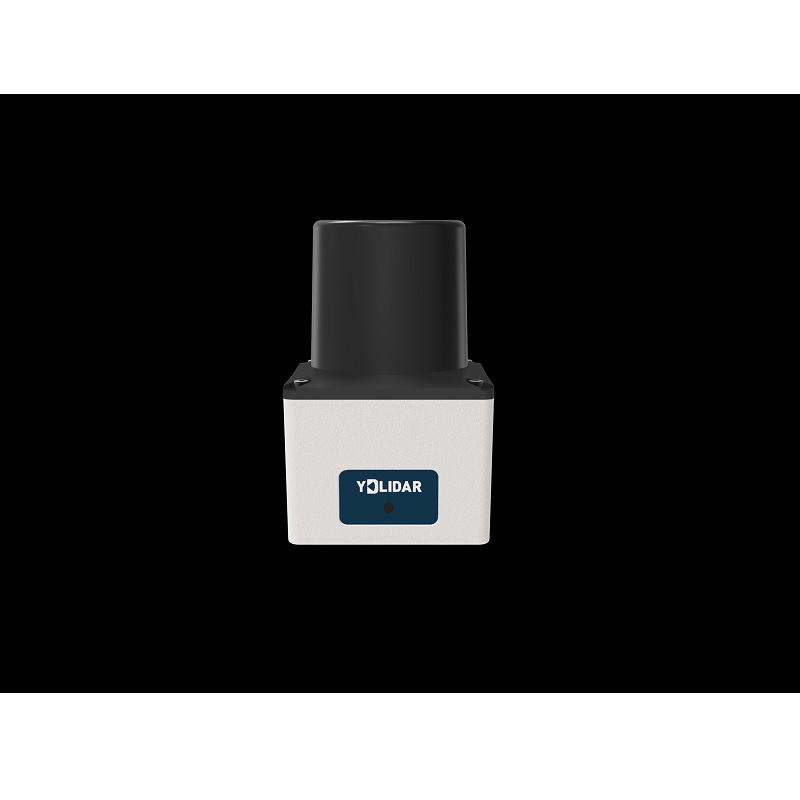

YDLIDAR TEA Single-Line Scanning LiDAR Sensor - 905nm, IP65, Network Interface
The YDLIDAR TEA is a compact, single-line scanning 2D LiDAR sensor utilizing 905nm Time-of-Flight (ToF) technology, delivering 30k point cloud data per second. Designed for industrial and robotics integration, it features an IP65-rated housing, a 100M network interface for data transmission, and is compatible with systems like ROS for navigation and mapping applications.
Features
- High-speed 30kHz ranging frequency for dense, real-time point cloud data.
- 905nm infrared laser with advanced signal processing for reliable outdoor performance.
- IP65 protection rating ensures dustproof and waterproof operation in industrial environments.
- Compact 53mm x 53mm form factor with a 270° horizontal field of view for easy integration.
- 100M adaptive Ethernet interface simplifies data transfer to PCs, PLCs, and embedded controllers.
Out of stock
The YDLIDAR TEA series is engineered for precision 2D environmental perception using Time-of-Flight (ToF) laser ranging. Its single-line scanning design outputs up to 30,000 data points per second, enabling high-resolution mapping and object detection. The sensor employs a 905nm infrared laser paired with proprietary signal conditioning algorithms to maintain accuracy under varying ambient light conditions, making it suitable for both indoor and outdoor applications.

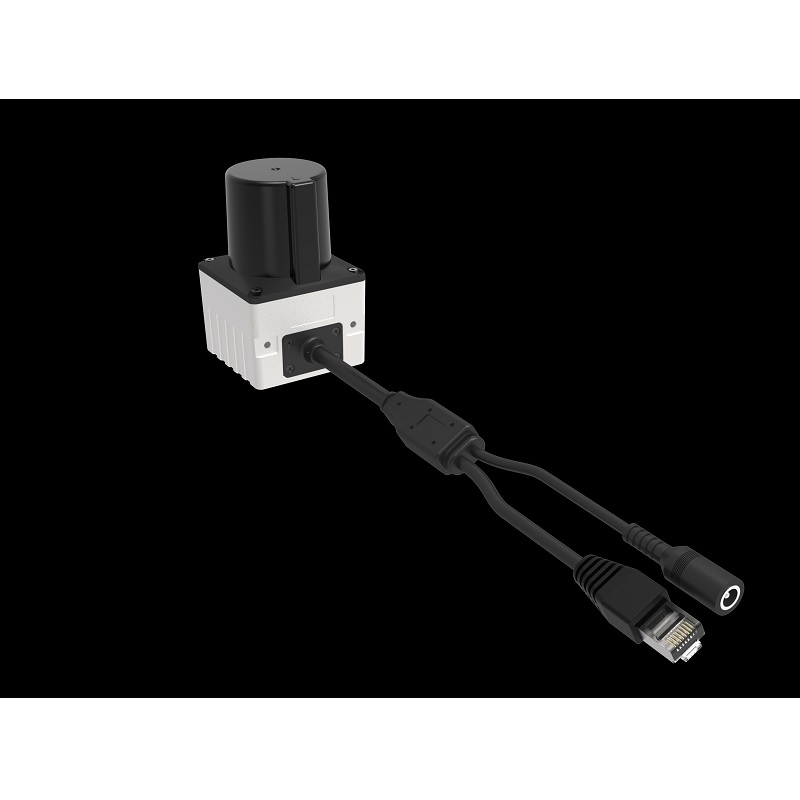

Constructed with an industrial-grade interface, the TEA transmits point cloud data via a standard network protocol, facilitating seamless integration into robotics, automation, and research platforms. The housing is sealed to IP65 standards, protecting the internal optics and electronics from dust and water ingress. Its compact dimensions and configurable scanning frequency up to 30Hz allow for flexible deployment in space-constrained mobile robots, AGVs, and security systems.
Additional Information
| Weight | 0.23 kg |
|---|---|
| Dimensions | 5.3 × 5.3 cm |
