YDLIDAR GS5 Linear Array Solid-State LiDAR Sensor - 85° FOV, 70-1000mm Range, USB Type-C

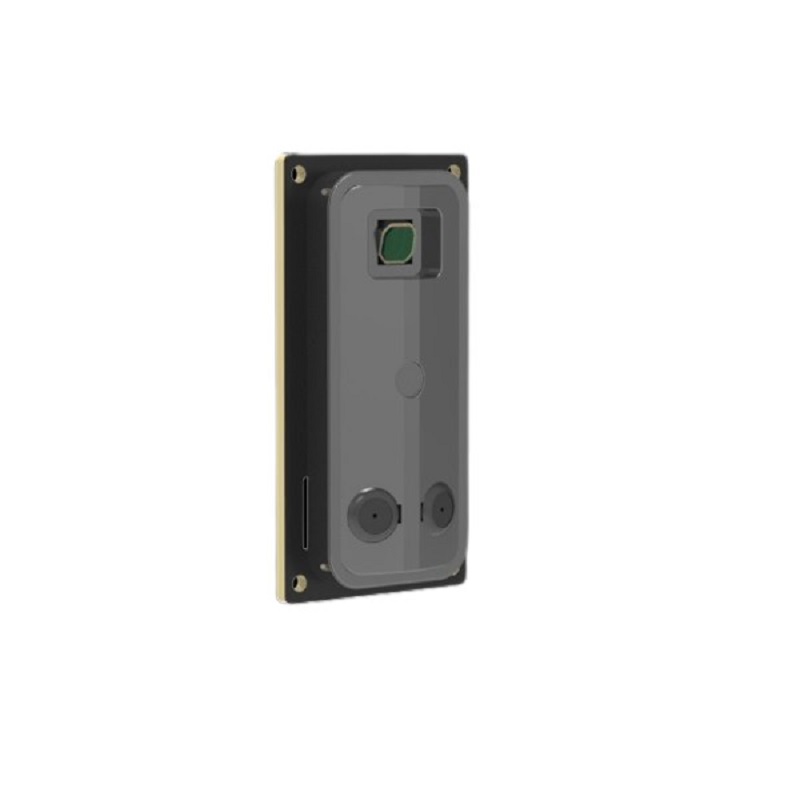

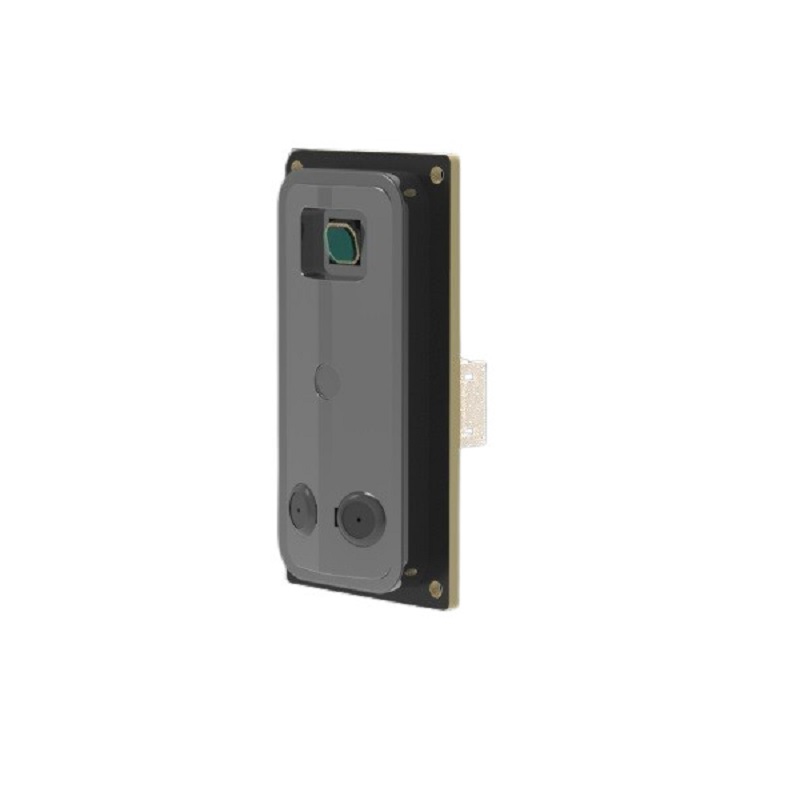

The YDLIDAR GS5 is a compact, solid-state linear array LiDAR sensor utilizing triangulation for high-precision distance measurement up to 1 meter. It outputs point cloud data via USB Type-C and is designed for integration with robotics platforms, Arduino, Raspberry Pi, and embedded systems requiring real-time environmental mapping.
Features
- High-precision triangulation-based LiDAR with 0.54° angular resolution.
- Wide 85° field of view (FOV) with no internal blind zones.
- Detection range from 70mm to 1000mm, capable of sensing objects as small as 6mm in diameter.
- Stable performance with a rated operational lifespan of 10,000 hours.
- USB Type-C interface with 921600 bps baud rate for easy point cloud data streaming.
Out of stock
The YDLIDAR GS5 Linear Array Solid-State LiDAR sensor employs a precise optical triangulation principle, integrating specialized optics, electronics, and algorithms to perform high-accuracy laser distance measurement across a 60-degree effective scan area. It outputs real-time point cloud data representing the scanned environment, enabling detailed spatial awareness for autonomous systems.
Engineered for durability and long-term operation, the GS5 features a robust solid-state design with no moving parts, contributing to its 10,000-hour service life. Its compact form factor and USB Type-C connectivity make it suitable for direct integration into mobile robots, smart equipment, and prototyping platforms operating on a 3.3V power supply.
Additional Information
| Weight | 0.088 kg |
|---|---|
| Dimensions | 4.8 × 2.5 cm |
