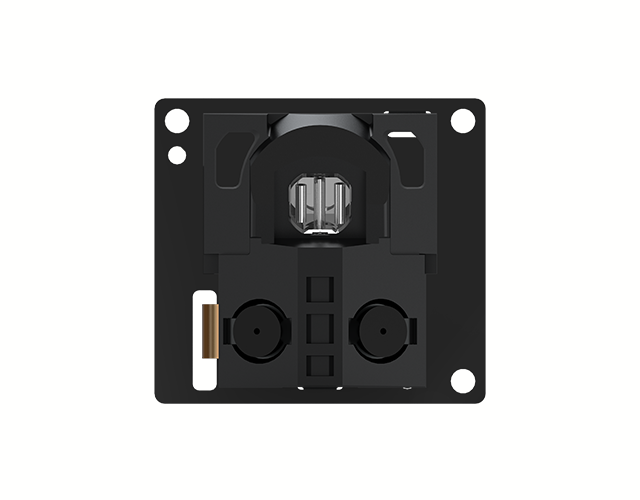

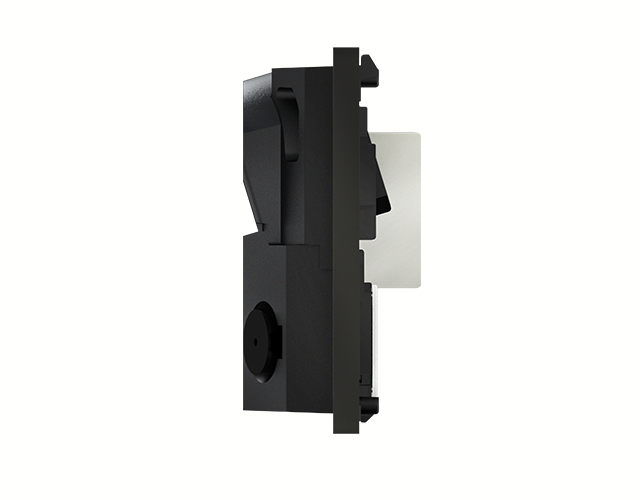

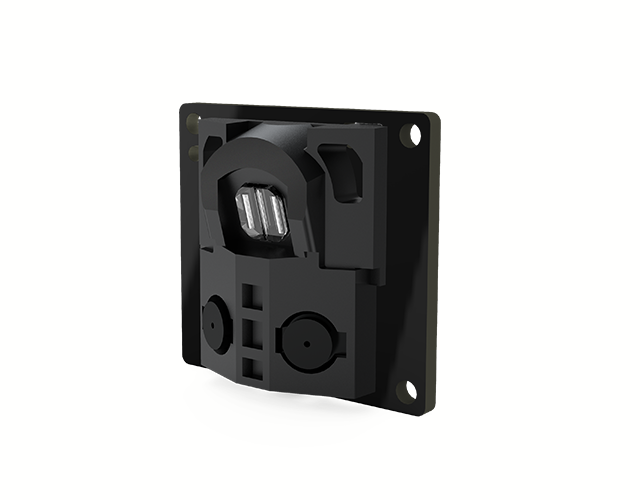

YDLIDAR GS2 Linear Array Solid LiDAR Sensor Module - USB Type-C Interface
The YDLIDAR GS2 is a compact, solid-state linear array LiDAR module designed for high-precision, short-range 2D scanning. Utilizing triangulation-based laser ranging, it provides a 100° field of view point cloud output via USB Type-C, making it ideal for integration with robotics platforms, Arduino, Raspberry Pi, and other embedded systems for navigation and obstacle avoidance.
Features
- Solid-state linear array LiDAR with 100° wide-angle scanning field of view.
- High angular resolution of 0.6° for detailed environmental mapping and point cloud data.
- Short-range detection from 25mm to 300mm, capable of detecting objects as small as 3mm in diameter.
- Class I eye-safe laser operation with a wavelength of 860nm and 25mW power.
- USB Type-C interface with a high-speed 1.5 Mbps baud rate for real-time data streaming.
Out of stock
The YDLIDAR GS2 is a solid-state LiDAR module engineered for precise, two-dimensional environmental scanning. Based on the principle of optical triangulation, it integrates specialized optics, electronics, and algorithms to perform non-contact distance measurement. The module emits a Class I eye-safe laser beam and analyzes the reflected light to generate a high-resolution point cloud map of its surroundings with a 100° field of view and no mechanical moving parts, ensuring long-term reliability.
Designed for seamless integration into autonomous systems, the GS2 outputs real-time scanning data via a USB Type-C serial interface. Its compact form factor, stable performance across an operating temperature range of -10°C to 40°C, and a rated service life of 10,000 hours make it a robust solution for continuous operation in dynamic environments, from indoor robotics to smart equipment.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2 × 2 × 1 cm |
