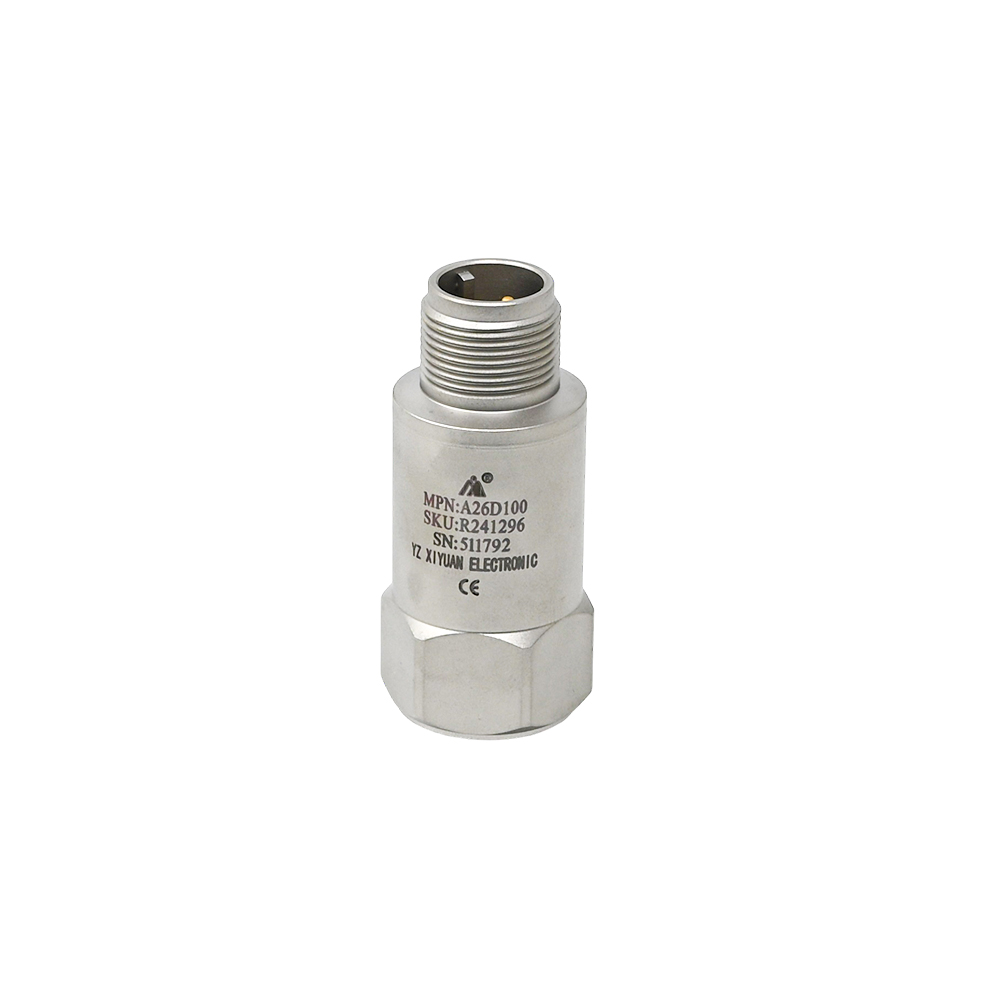

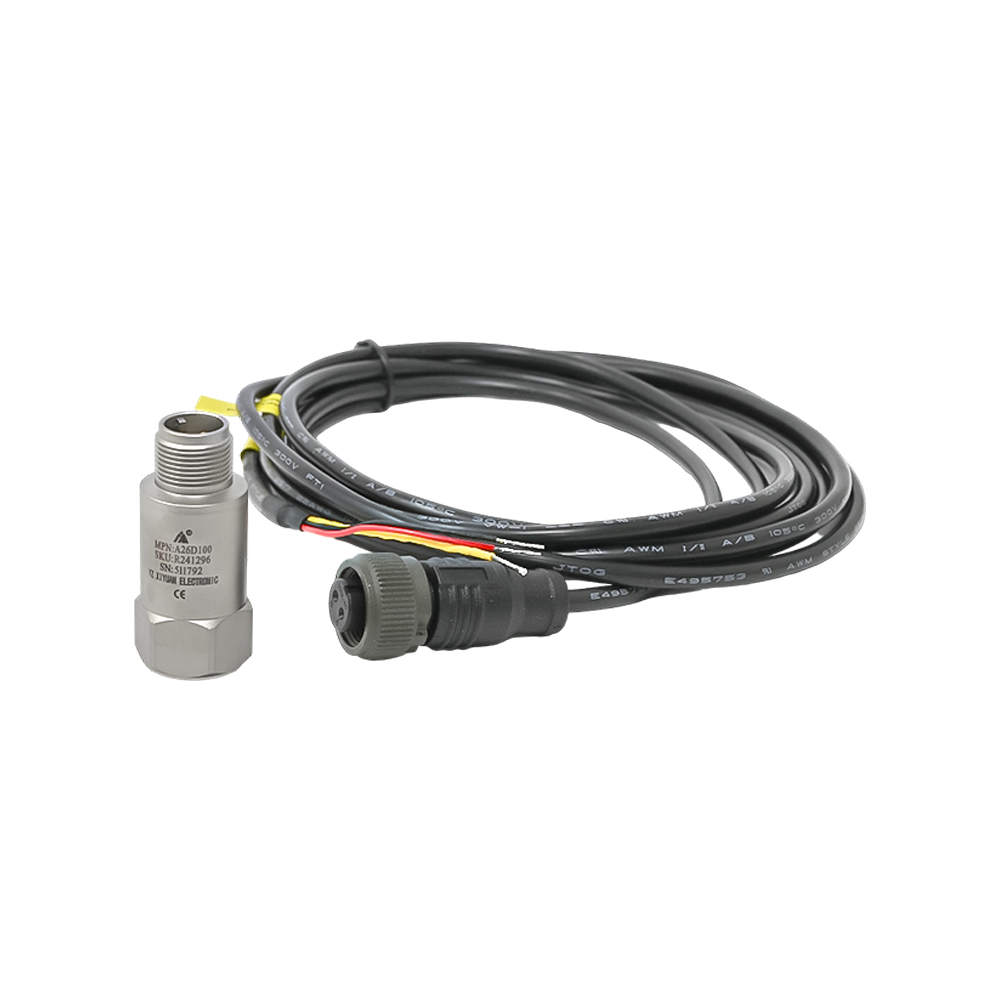

XIYUAN A26D100 Piezoelectric Acceleration Sensor 100mV/g (160Hz) - IEPE Output, 5/8-24 Connector
The XIYUAN A26D100 is an industrial IEPE piezoelectric accelerometer delivering a 100mV/g sensitivity at 160Hz for precise vibration monitoring. Compatible with standard 18-28VDC constant current excitation and data acquisition systems, it features a rugged stainless steel housing and a ±50g measurement range for demanding industrial applications.
Features
- High Sensitivity: 100mV/g output at 160Hz for accurate vibration data acquisition.
- Wide Dynamic Range: Measures acceleration from ±50g with a high shock resistance of ±2000g.

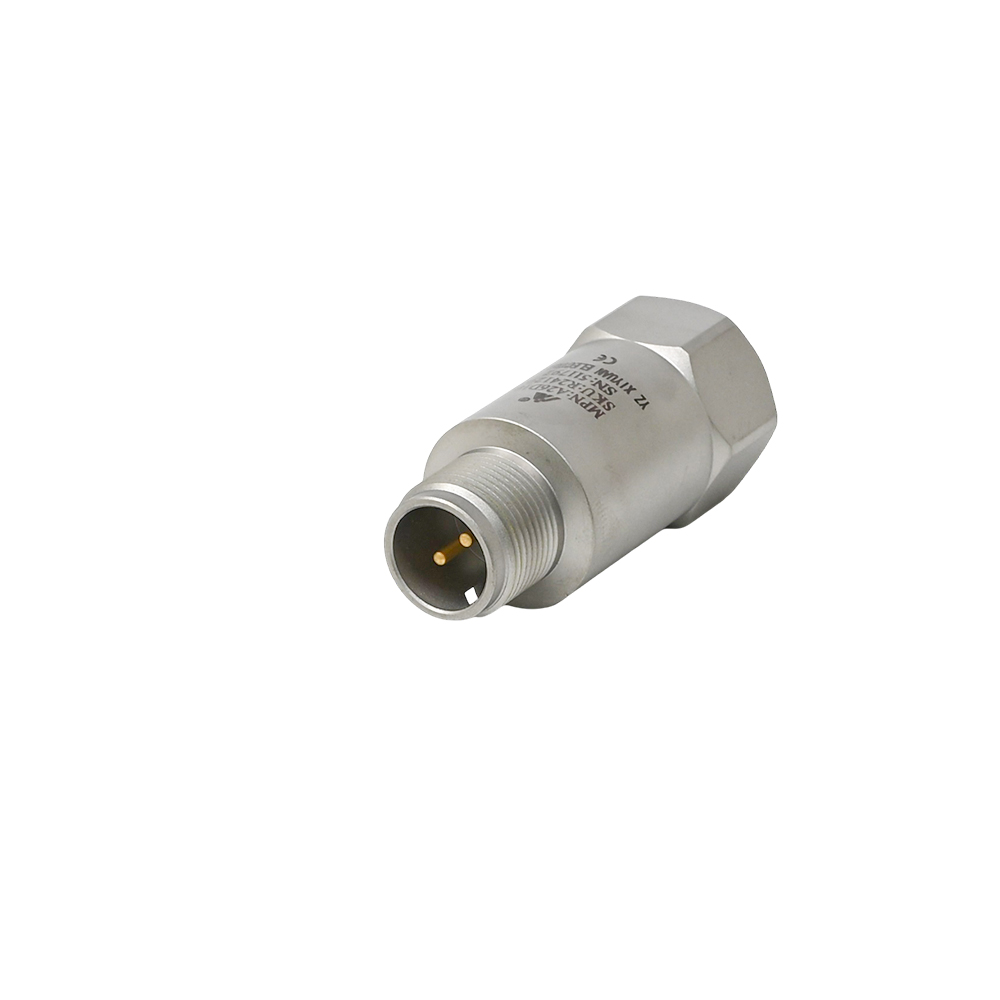

- Industrial IEPE Interface: Standard 5/8-24 two-core connector for seamless integration with DAQ systems.
- Rugged Construction: Stainless steel housing ensures durability in harsh environments from -40°C to +120°C.
- Broad Frequency Response: Operates effectively from 1Hz to 9000Hz for capturing a wide spectrum of vibrations.
Out of stock
The XIYUAN A26D100 utilizes a piezoelectric sensing element to convert mechanical vibration into a proportional, low-impedance voltage signal. Its integrated electronics (IEPE) require a constant current power supply (2-10mA) within 18-28VDC, providing a conditioned ±5V peak output for direct connection to data acquisition modules, PLCs, and monitoring systems.
Engineered for industrial reliability, the sensor’s stainless steel enclosure and hermetic sealing protect the internal electronics from contaminants, moisture, and mechanical shock. With an amplitude non-linearity of ±1% and stable performance across an extended temperature range, it is designed for long-term, high-precision condition monitoring in challenging settings.
Additional Information
| Weight | 0.081 kg |
|---|---|
| Dimensions | 5.5 × 3 cm |
