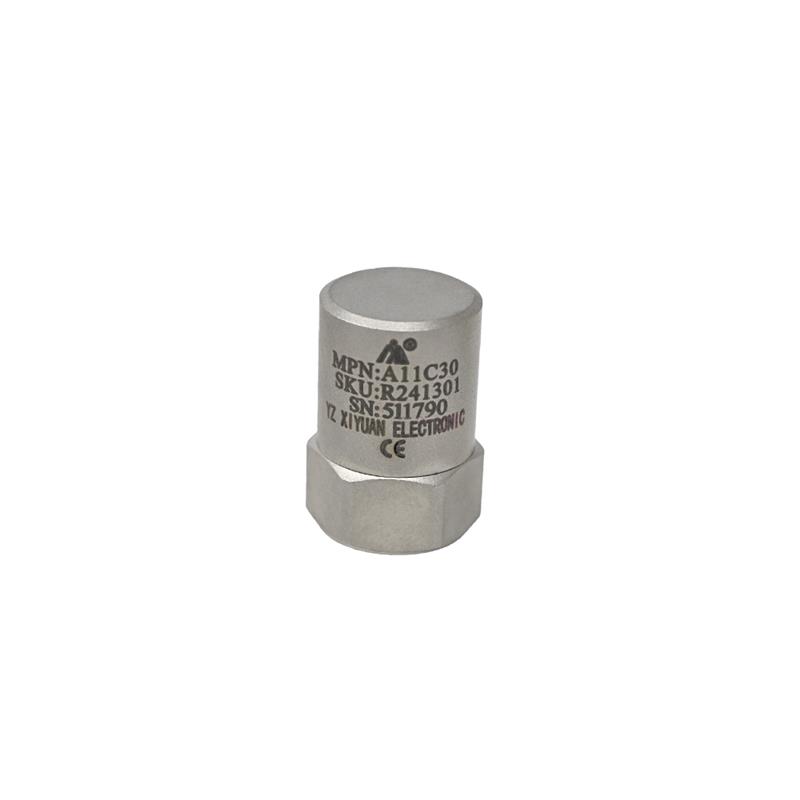

XIYUAN A11C30 Piezoelectric Accelerometer Sensor 30pC/g (160Hz) - M5 Output Cable
The XIYUAN A11C30 is a high-sensitivity piezoelectric accelerometer delivering 30pC/g charge output at 160Hz, designed for industrial vibration monitoring and machinery health analysis. Its compact, robust PZT-5 element construction supports a wide 1Hz–10kHz frequency range and operates from -54°C to +150°C, making it compatible with industrial DAQ systems requiring charge amplifier interfaces.
Features
- High charge sensitivity of 30pC/g at 160Hz for precise vibration measurement.
- Broad frequency response from 1Hz to 10,000Hz for capturing dynamic events.
- Robust PZT-5 piezoelectric element rated for -54°C to +150°C operation.

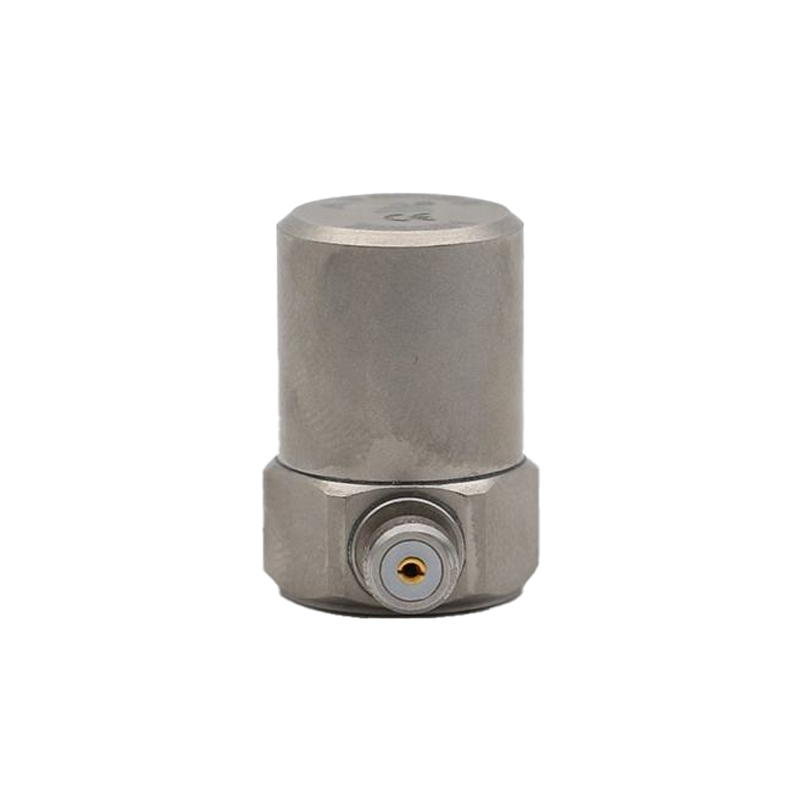

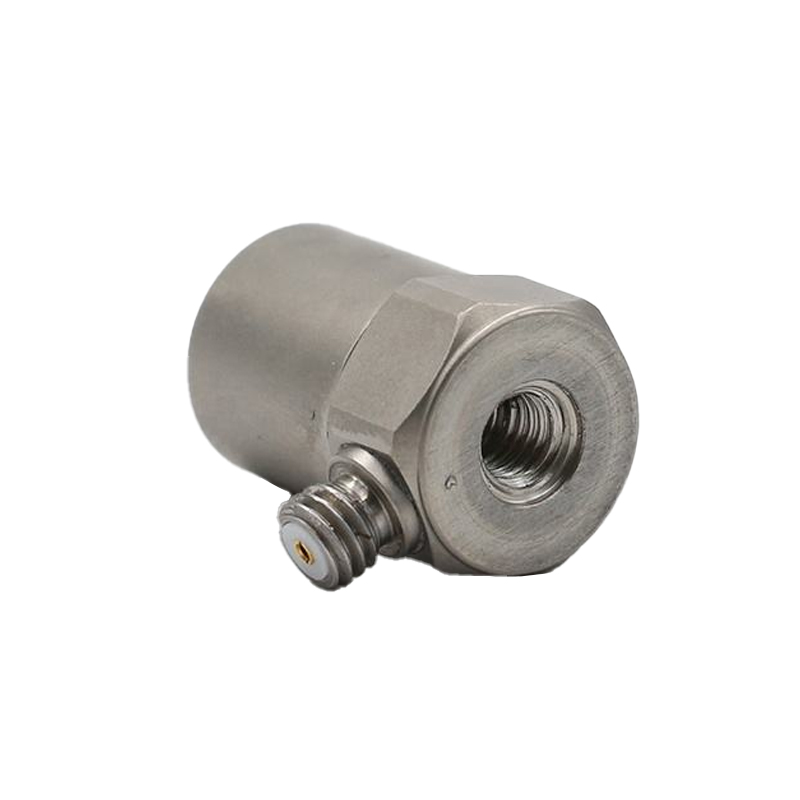

- Compact 13mm × 20mm housing with side M5 output for tight-space integration.
- High shock tolerance up to ±2000g peak and insulation resistance ≥10⁹Ω.
Out of stock
The XIYUAN A11C30 accelerometer utilizes a high-performance PZT-5 piezoelectric sensing element to convert mechanical vibration into a proportional electrical charge signal. This uniaxial sensor is engineered for precision measurement across a wide dynamic range, making it suitable for capturing both low-frequency structural resonances and high-frequency transient shocks.

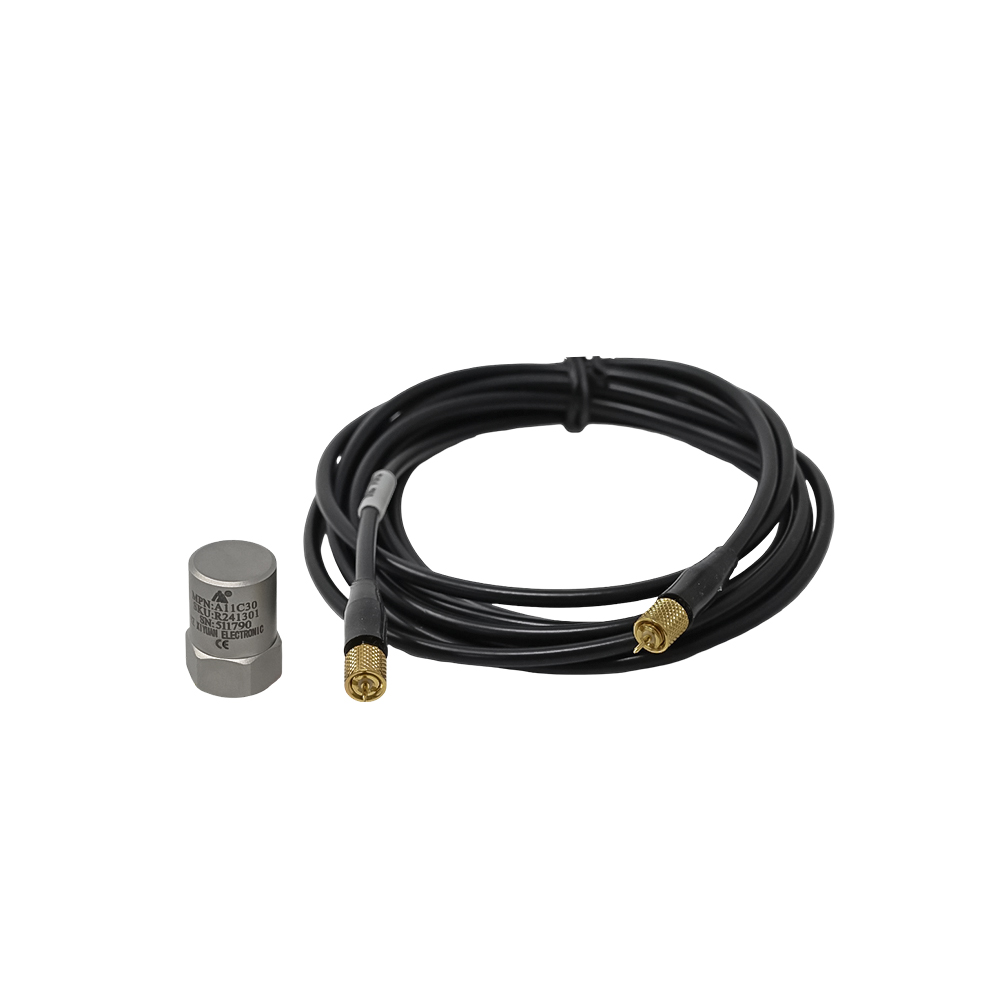

Its construction features a hermetically sealed, robust housing that ensures reliable performance in harsh industrial environments, including high-temperature applications. The sensor includes a 2-meter low-noise shielded cable terminated with an M5 connector, providing stable signal transmission to compatible charge amplifiers or data acquisition systems for vibration analysis, condition monitoring, and predictive maintenance.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 2.5 × 2 × 2 cm |
