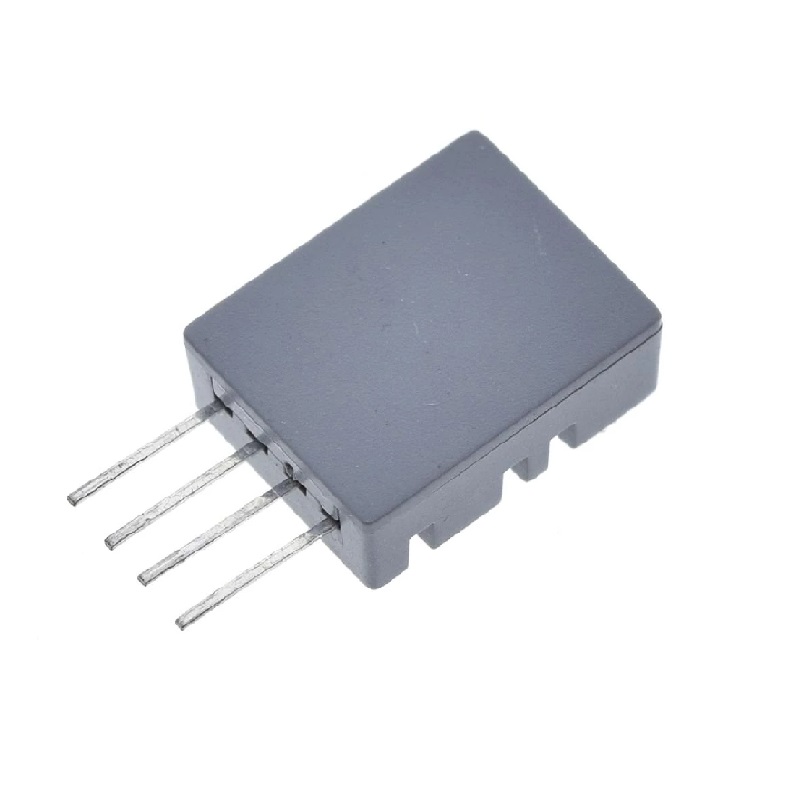

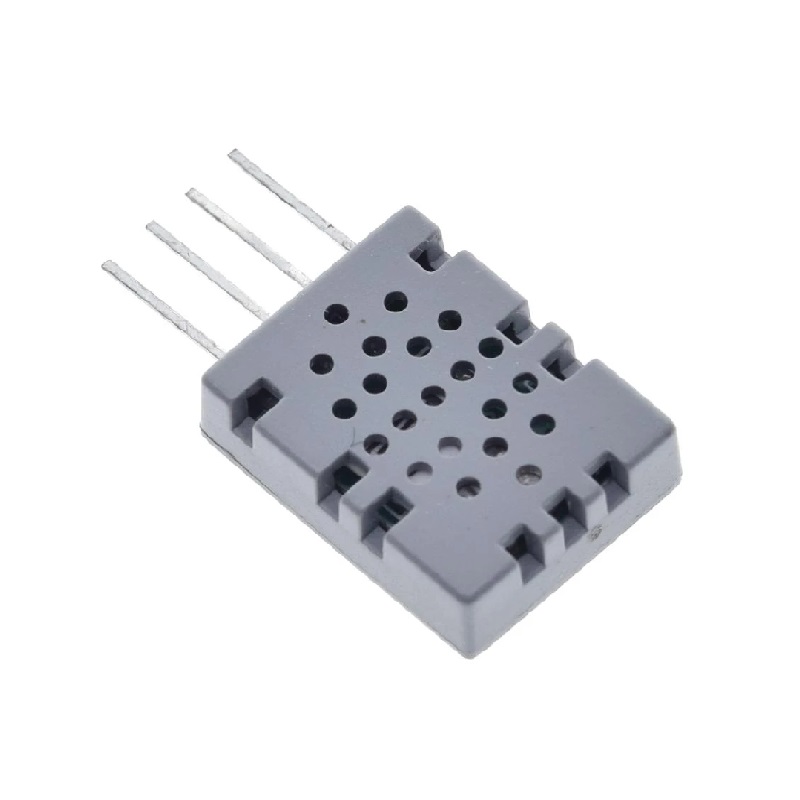

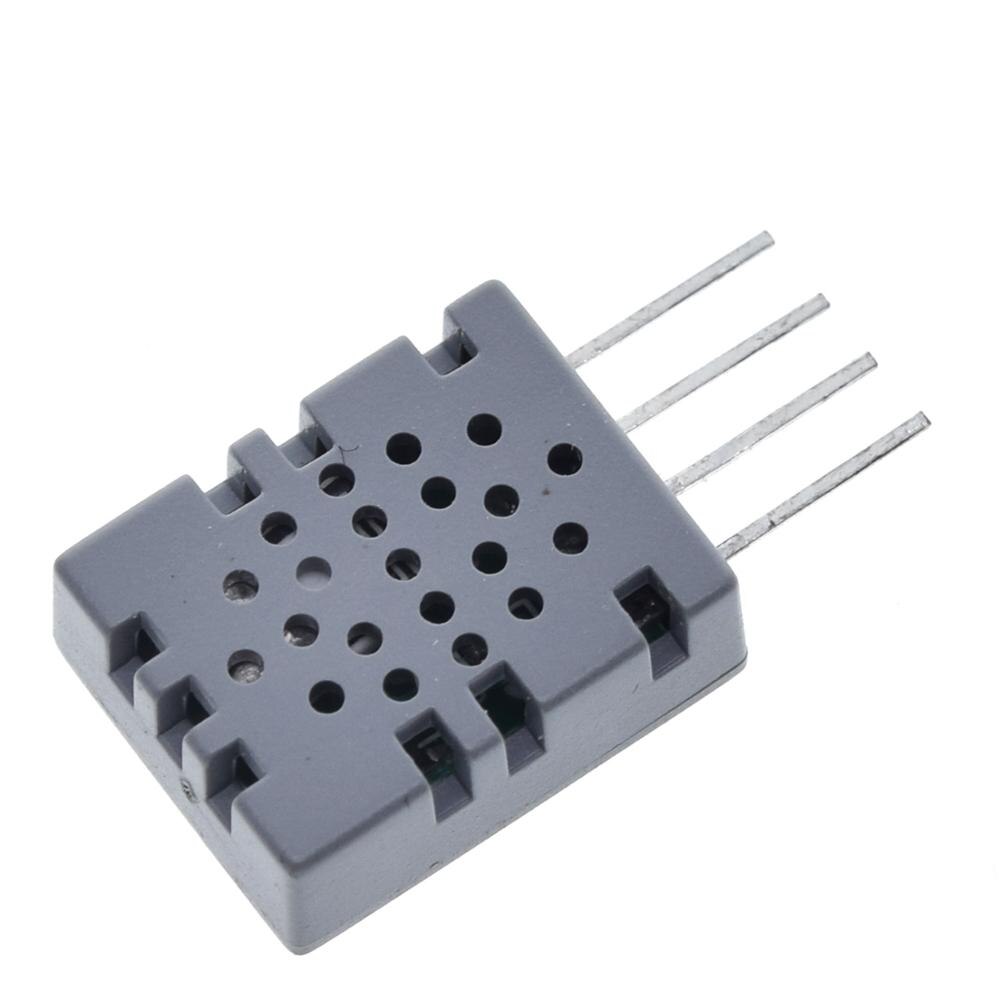

Winsen ZS03 Temperature & Humidity Sensor Module - Digital SIP4 Interface
The Winsen ZS03 is a compact digital temperature and humidity sensor module featuring a SIP4 pinout, designed for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32. It provides reliable environmental sensing with a 2.7–5.5V DC operating range.
Features
- Digital output temperature and humidity sensor module with SIP4 pinout.
- Operates from a wide 2.7V to 5.5V DC supply voltage.
- Measures relative humidity from 20% to 90% RH with ±5% accuracy.
- Integrated temperature sensing with ±2°C accuracy for compensation.
- Features fast response, low power consumption, and excellent stability.
Out of stock
The Winsen ZS03 module integrates a polymer resistance-type humidity sensor and an NTC thermistor for temperature measurement. These sensing elements are connected to an onboard 8-bit microcontroller that provides a conditioned digital signal output, ensuring strong anti-interference performance and linearized readings.
Designed for stable operation in non-condensing environments from 0°C to +60°C, the module is suitable for a variety of embedded and monitoring applications. Its compact form factor and straightforward digital interface make it ideal for prototyping and integration into environmental control systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 3 × 1 cm |
