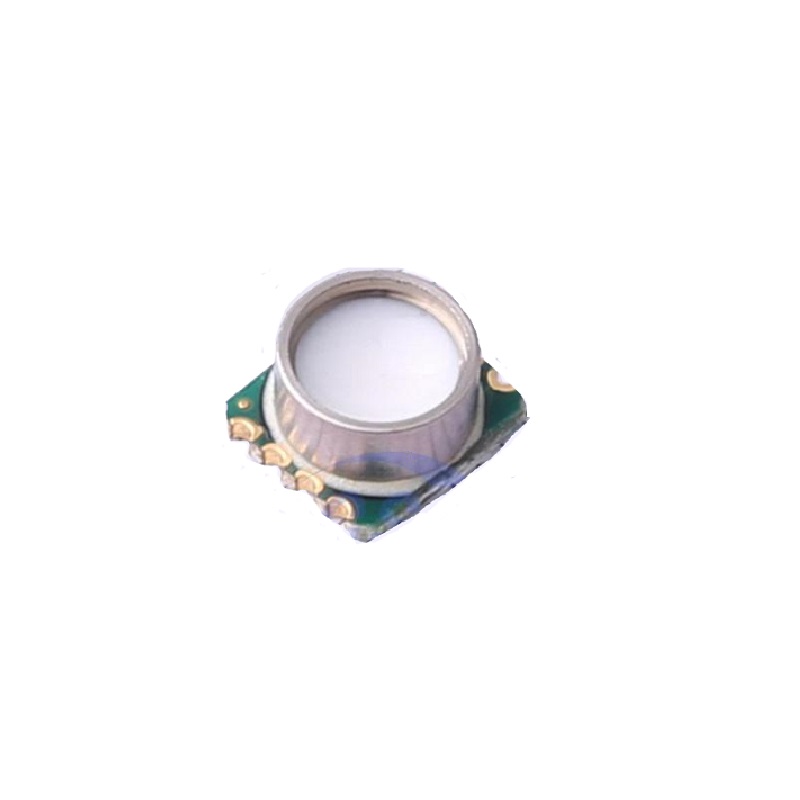

WFSensor WF5803F 30BA L8 DT Digital Pressure Sensor, 30-700 kPa, 1.8-3.6V, I2C/SPI, LGA-8

The WF5803F sensor supports both I2C and SPI digital protocols. The selection is typically made by configuring specific pins on the LGA-8 package during PCB design, as detailed in the official datasheet. I2C is ideal for simpler wiring with multiple devices on a bus, while SPI offers higher data transfer speeds for faster sampling applications.

The absolute maximum supply voltage (VDD) for the WF5803F is 3.6V. Exceeding this voltage, even momentarily, can cause permanent damage to the internal MEMS and CMOS circuitry. Always ensure your power supply or regulator output is within the specified 1.8V to 3.6V operating range.

The WF5803F is a gauge pressure sensor with a port exposed to the media. While it can measure gas pressure directly, using it with liquids requires careful consideration. The sensor package itself is not inherently submersible. For liquid media, a proper isolation diaphragm or a sensor specifically rated for liquid contact must be used to prevent damage or corrosion.

No external signal conditioning is required. The sensor integrates the MEMS sensing element, analog-to-digital converter (ADC), and digital communication logic on a single chip. You only need to provide a stable power supply within 1.8V-3.6V and connect the appropriate I2C or SPI lines to your host microcontroller.

The LGA-8 package is a surface-mount device (SMD) intended for reflow soldering onto a PCB. You must design a matching footprint on your circuit board. For prototyping or testing, a breakout board adapter is highly recommended to provide accessible pin headers for easy connection to development systems like Arduino or Raspberry Pi.
