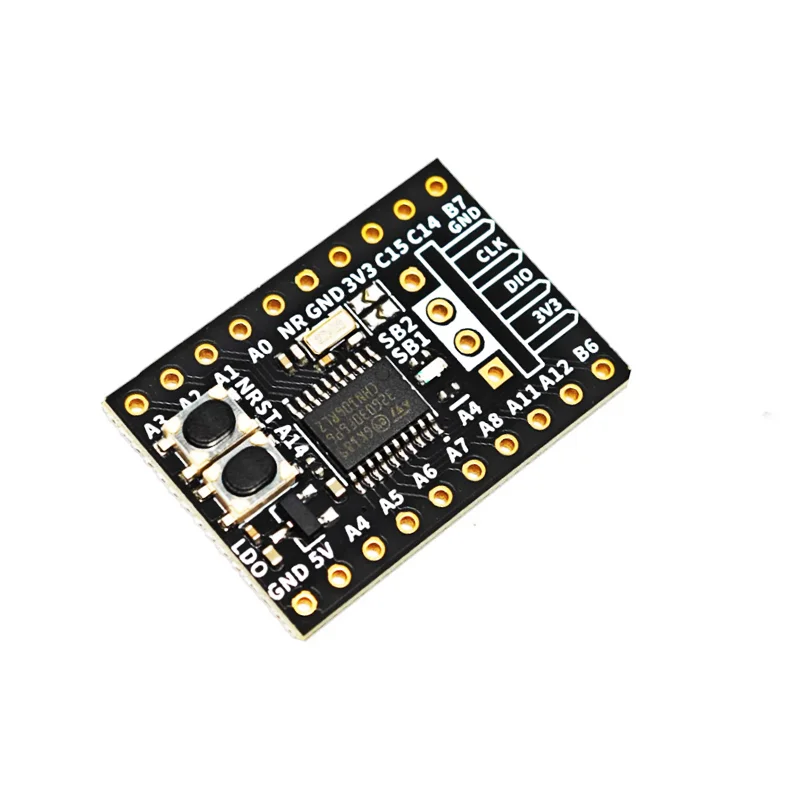

WeAct Studio STM32G030F6P6 Core Demo Board

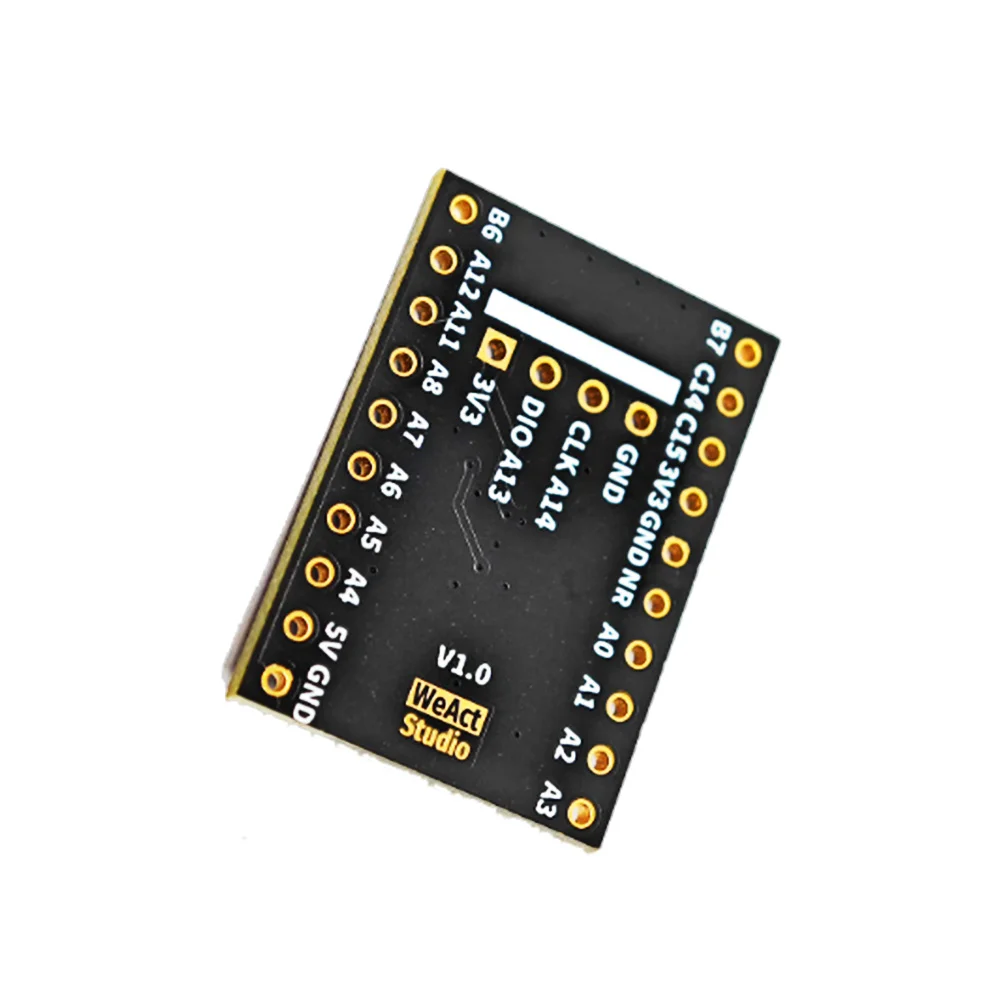

WeAct Studio STM32G030F6P6 Core Demo Board - Image 2

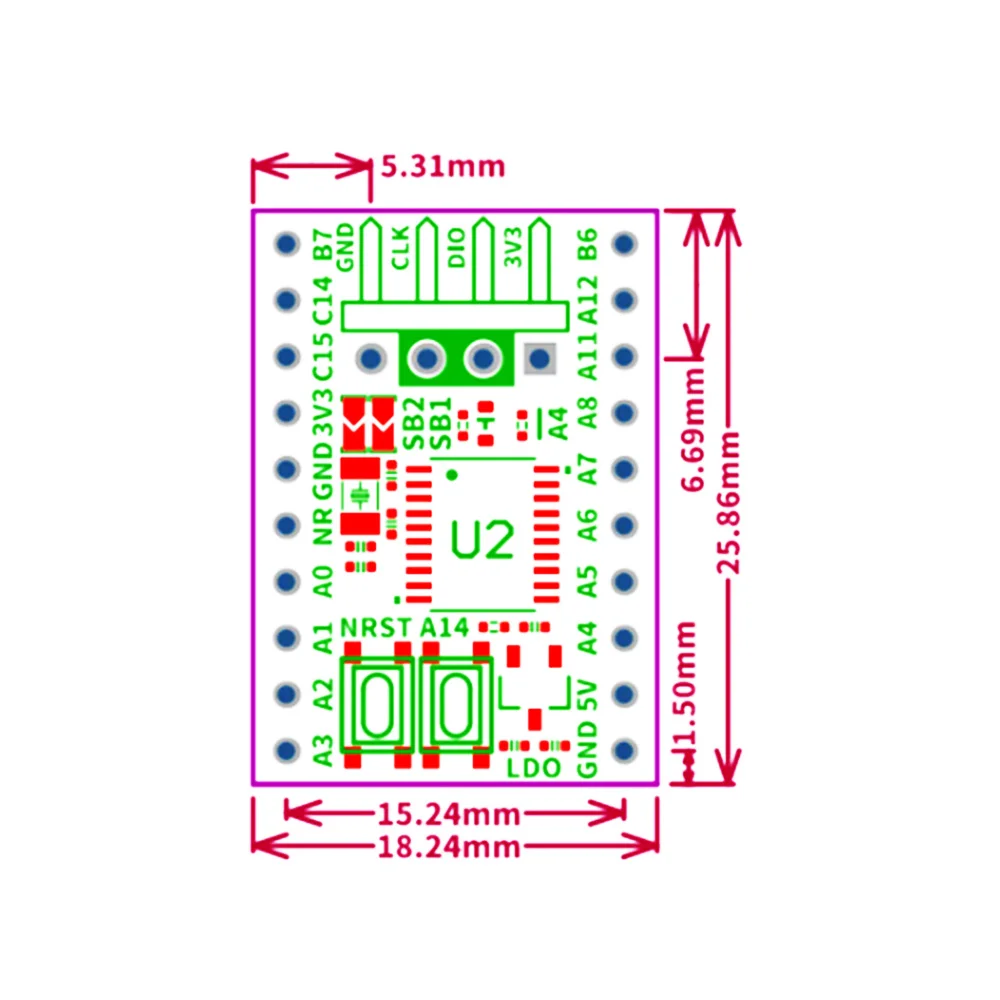

WeAct Studio STM32G030F6P6 Core Demo Board - Image 3

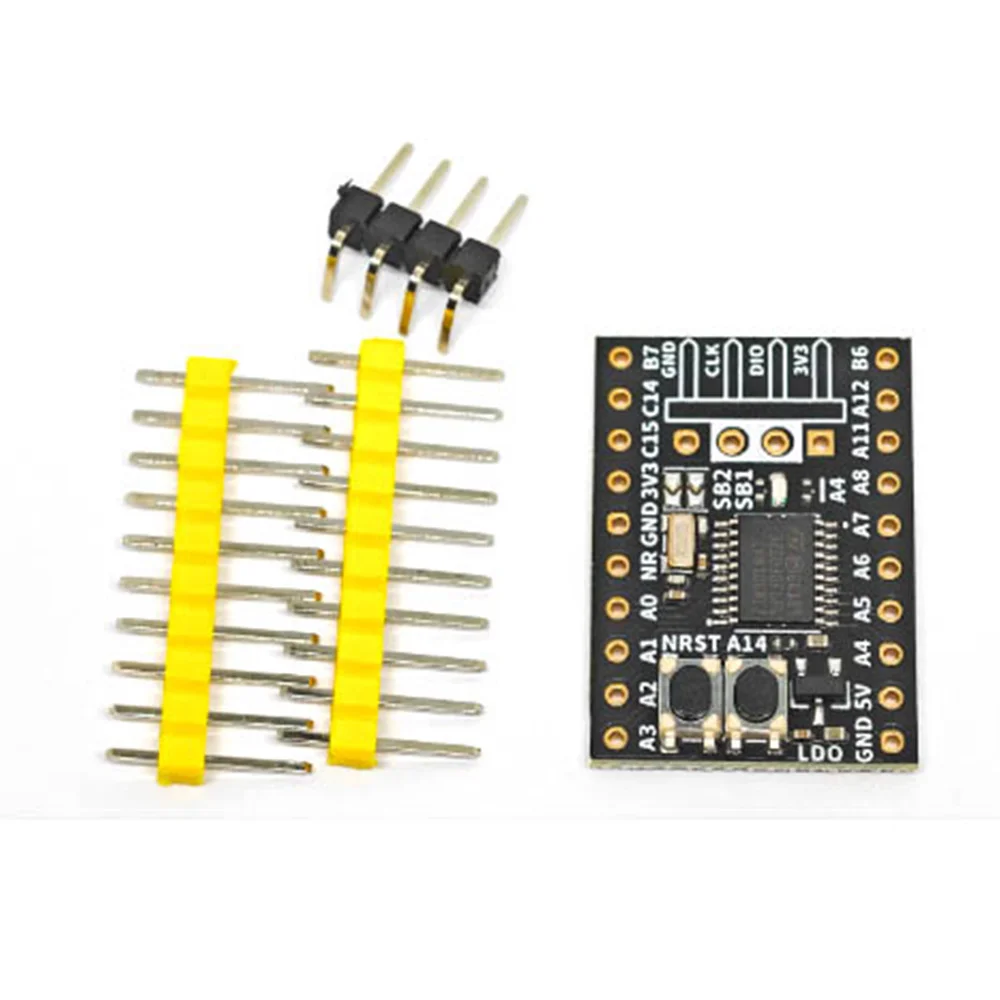

WeAct Studio STM32G030F6P6 Core Demo Board - Image 4
SKU: IOWC-1264
📋 GST Invoice Available

WeAct Studio STM32G030F6P6 Core Demo Board

₹191.00 (Inclusive of all taxes)
Out of Stock

The WeAct Studio STM32G030F6P6 Core Demo Board is a development platform for the Arm Cortex-M0+ based STM32G030 microcontroller, featuring 64 MHz operation, 64 KB Flash, and 8 KB SRAM. It provides direct access to I/O for prototyping with Arduino IDE or STM32CubeIDE.

Features

  • ARM Cortex-M0+ Core: High-performance 32-bit RISC processor running at up to 64 MHz for efficient embedded control.
  • Integrated Memory & Protection: Features 64 Kbytes of Flash memory with read/write protection and 8 Kbytes of SRAM with hardware parity check.
  • Comprehensive I/O & Peripherals: Offers up to 44 fast I/Os, two I2Cs, two SPIs, two USARTs, a 12-bit ADC, and multiple timers.
  • Low-Power Operation: Supports multiple power-saving modes (Sleep, Stop, Standby) and operates from a 2.0V to 3.6V supply for battery-powered IoT nodes.
  • Developer-Friendly Debugging: Includes Serial Wire Debug (SWD) interface for streamlined firmware flashing and real-time debugging.

Out of stock

Description

The WeAct Studio STM32G030F6P6 Core Demo Board provides a compact and accessible hardware platform for evaluating and prototyping with the STM32G030 mainstream microcontroller. Based on the high-performance Arm Cortex-M0+ core, this board delivers a 64 MHz processing speed suitable for a wide range of consumer, industrial, and IoT applications requiring real-time control and efficient data handling.

Engineered for low-power operation, the board supports a comprehensive set of power-saving modes and a wide supply voltage range, making it ideal for battery-powered remote sensors and smart appliance designs. Its extensive peripheral set, including communication interfaces, timers, and a 12-bit ADC, facilitates rapid integration into complex embedded systems.

Key Features

  • High-Performance Cortex-M0+ Core: 32-bit RISC CPU operating at frequencies up to 64 MHz for responsive task execution.
  • Robust Memory Architecture: 64 KB Flash with protection features and 8 KB SRAM with parity checking for reliable code and data storage.
  • Advanced Communication Suite: Integrated two I2C, two SPI (one with I2S), and two USART interfaces supporting various protocols including LIN and IrDA.
  • Precision Analog Sensing: 12-bit ADC with hardware oversampling and up to 19 channels for accurate sensor data acquisition.
  • Enhanced Power Management: Features multiple low-power modes (Sleep, Stop, Standby) and a VBAT pin for RTC backup, enabling ultra-low-power IoT designs.
  • Rich Timer & Control Units: Includes an advanced-control PWM timer, four 16-bit general-purpose timers, and a calendar RTC for motor control and timing applications.
  • Developer-Centric Design: Exposes all microcontroller I/O via headers and provides a dedicated Serial Wire Debug (SWD) connector for seamless programming and debugging.

Applications

  • IoT Sensor Nodes & Smart Home Devices: For low-power environmental monitoring, smart switches, and appliance control.
  • Industrial Control & Telemetry: Suitable for simple PLCs, motor control units, and data acquisition systems in IIoT applications.
  • Consumer Electronics & Appliances: Prototyping for handheld gadgets, remote controls, and embedded user interfaces.
  • Prototyping & Educational Platforms: An ideal board for learning embedded systems, real-time operating systems (RTOS), and microcontroller programming.

Technical Specifications

Microcontroller/SoCSTM32G030F6P6 (Arm Cortex-M0+)
CPU FrequencyUp to 64 MHz
Flash Memory64 Kbytes
SRAM8 Kbytes
Supply Voltage2.0 V to 3.6 V
Operating CurrentDependent on mode (Supports Sleep, Stop, Standby)
Interfaces2x I2C, 2x SPI (1x I2S), 2x USART, 12-bit ADC, SWD
I/O PinsUp to 44 fast I/Os (5V-tolerant)
Operating Temperature-40°C to 85°C
DimensionsApprox. 7 cm x 6 cm (Board size)

Frequently Asked Questions

How do I program the WeAct Studio STM32G030F6P6 board?

You can program this board using the STM32CubeIDE or Arduino IDE with appropriate core support. Connect an ST-LINK/V2 programmer via the onboard SWD (Serial Wire Debug) connector's SWDIO and SWCLK pins. Configure your IDE to target the STM32G030F6P6 microcontroller, compile your code, and flash it through the debug interface. Ensure the board is powered within the 2.0V to 3.6V range during programming.

What is the power supply requirement for this STM32 demo board?

The STM32G030F6P6 microcontroller requires a supply voltage between 2.0V and 3.6V. You must provide regulated power within this range to the appropriate VDD pin on the board's headers. Exceeding 3.6V can damage the IC. For low-power applications, utilize the built-in Sleep, Stop, or Standby modes and connect a backup battery to the VBAT pin to maintain the Real-Time Clock (RTC) and backup registers.

Can I use this board with the Arduino development environment?

Yes, you can use this board with the Arduino IDE by installing the STM32duino core or a similar package. This involves adding the correct board manager URL, installing the 'STM32G0' series package, and selecting the 'Generic STM32G0 series' board with the specific variant. You may need to configure the upload method to 'ST-LINK' and set the correct CPU frequency and flash size parameters for successful compilation and uploading.

Package Includes

  • 1 x WeAct Studio STM32G030F6P6 Core Demo Board

Additional Information

Weight 0.01 kg
Dimensions 6 × 7 × 2 cm
