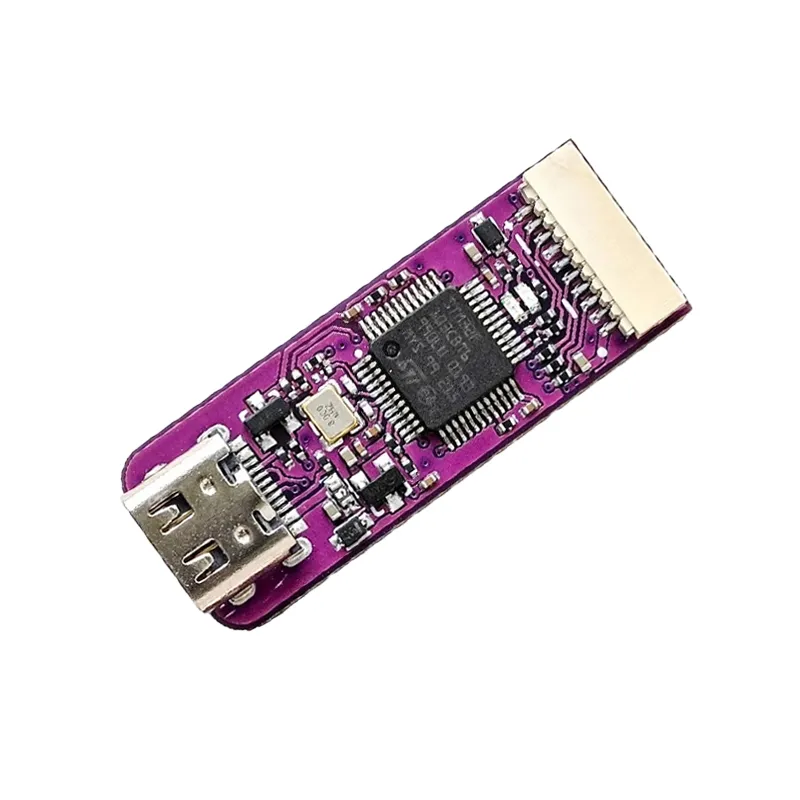

WeAct Studio Mini Debugger DAPLink STLink V2.1 SWD/UART

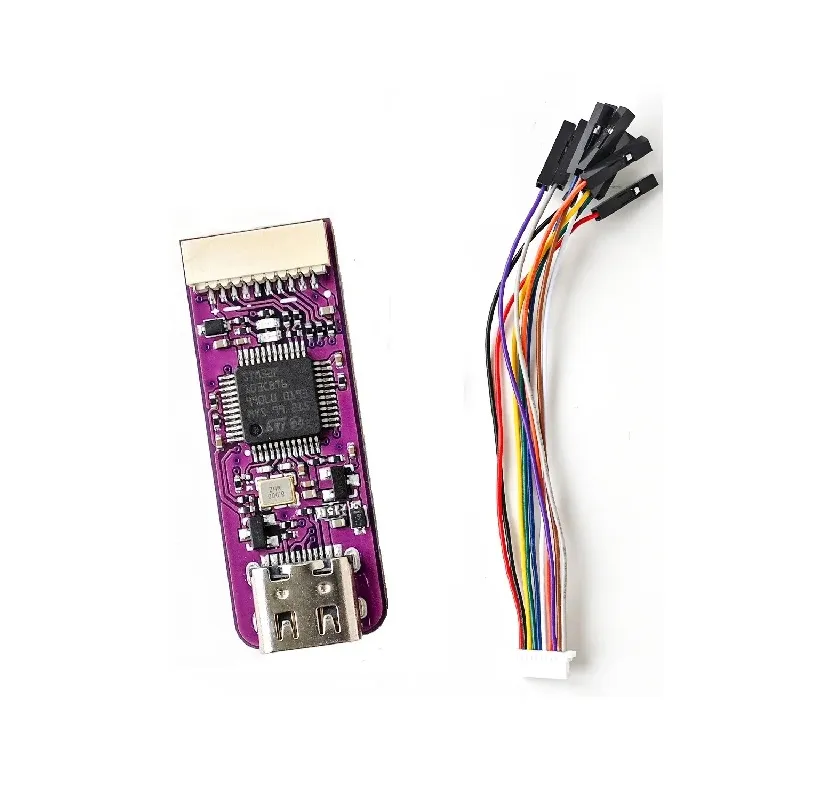

WeAct Studio Mini Debugger DAPLink STLink V2.1 SWD/UART - Image 2
SKU: SBCD-0782
📋 GST Invoice Available

WeAct Studio Mini Debugger DAPLink STLink V2.1 SWD/UART

₹419.00 (Inclusive of all taxes)
Out of Stock

The WeAct Studio Mini Debugger DAPLink STLink V2.1 is a compact debugging and programming tool for ARM Cortex-M microcontrollers, particularly STM32-compatible devices. It offers SWD/SWO debugging, drag-and-drop programming via DAPLink, and integrated USB-to-UART conversion for seamless serial communication.

Features

  • Based on APM32F103CBT6 microcontroller for reliable performance and enhanced compatibility.
  • Supports Serial Wire Debug (SWD) and SWO trace for real-time debugging and diagnostics.
  • Integrated DAPLink firmware enables drag-and-drop programming and CMSIS-DAP compatibility.
  • Built-in USB-to-UART interface for seamless serial communication without additional hardware.
  • Compatible with popular IDEs including Keil, IAR, and STM32CubeIDE.

Out of stock

Description

The WeAct Studio Mini Debugger DAPLink STLink V2.1 is a compact and efficient debugging and programming tool specifically engineered for ARM Cortex-M microcontrollers, with a strong focus on STM32-compatible devices. This version integrates the APM32F103CBT6 microcontroller, ensuring robust performance and broad compatibility for complex debugging and flashing operations across various development environments.

This versatile module fully supports the Serial Wire Debug (SWD) protocol, along with SWO trace functionality, providing developers with capabilities for real-time debugging and advanced diagnostics. Its integrated DAPLink firmware simplifies the programming workflow by enabling convenient drag-and-drop programming and ensuring CMSIS-DAP compatibility. Furthermore, the built-in USB-to-UART interface eliminates the need for external serial converters, facilitating seamless serial communication directly from the debugger.

Key Features

  • Based on APM32F103CBT6 microcontroller for enhanced debugging performance.
  • Supports Serial Wire Debug (SWD) for efficient microcontroller programming and debugging.
  • Enables Serial Wire Output (SWO) trace for real-time data logging and diagnostics.
  • Integrated DAPLink firmware for drag-and-drop flashing and CMSIS-DAP standard compliance.
  • Provides a built-in USB-to-UART bridge for direct serial communication.
  • Compatible with industry-standard IDEs such as Keil MDK, IAR Embedded Workbench, and STM32CubeIDE.
  • Facilitates firmware updates for maintaining tool chain currency and performance.

Technical Specifications

Model No. / NameSTLink-DAPLink
Debug InterfaceSWD, SWO
Serial InterfaceUSB to UART
ConnectivityUSB
Supported SoftwareKeil, IAR, STM32CubeIDE
Core MicrocontrollerAPM32F103CBT6

Frequently Asked Questions

What microcontrollers are supported by the WeAct Studio Mini Debugger?

This debugger primarily supports ARM Cortex-M microcontrollers, with excellent compatibility for STM32 series devices. It leverages an APM32F103CBT6 microcontroller internally to ensure reliable debugging and programming operations for a wide range of embedded applications.

Which development environments are compatible with this debugger?

The WeAct Studio Mini Debugger seamlessly integrates with several industry-standard development environments. These include Keil MDK (Microcontroller Development Kit), IAR Embedded Workbench, and STMicroelectronics' official STM32CubeIDE, providing flexibility for diverse project workflows.

Does this debugger support serial communication alongside debugging?

Yes, it does. The WeAct Studio Mini Debugger includes an integrated USB-to-UART bridge. This feature allows for direct serial communication with your target microcontroller, eliminating the need for a separate USB-to-serial converter during development and debugging sessions.

What is the primary function of DAPLink firmware on this device?

The DAPLink firmware provides a robust interface for debugging and programming. It enables drag-and-drop programming of firmware files directly onto the target microcontroller, simplifying the flash process. Additionally, it ensures CMSIS-DAP compatibility, offering a standardized debug interface.

What supply voltage does the WeAct Studio Mini Debugger require?

The debugger is powered directly via its USB connection to the host computer. It typically operates on the standard 5V USB supply. The target microcontroller's supply voltage is handled separately, usually provided by the target board itself.

Package Includes

  • 1 x WeAct Studio Mini Debugger DAPLink STLink V2.1 SWD SWO USB To Uart Module

Additional Information

Weight 0.015 kg
Dimensions 10 × 6 × 2 cm
