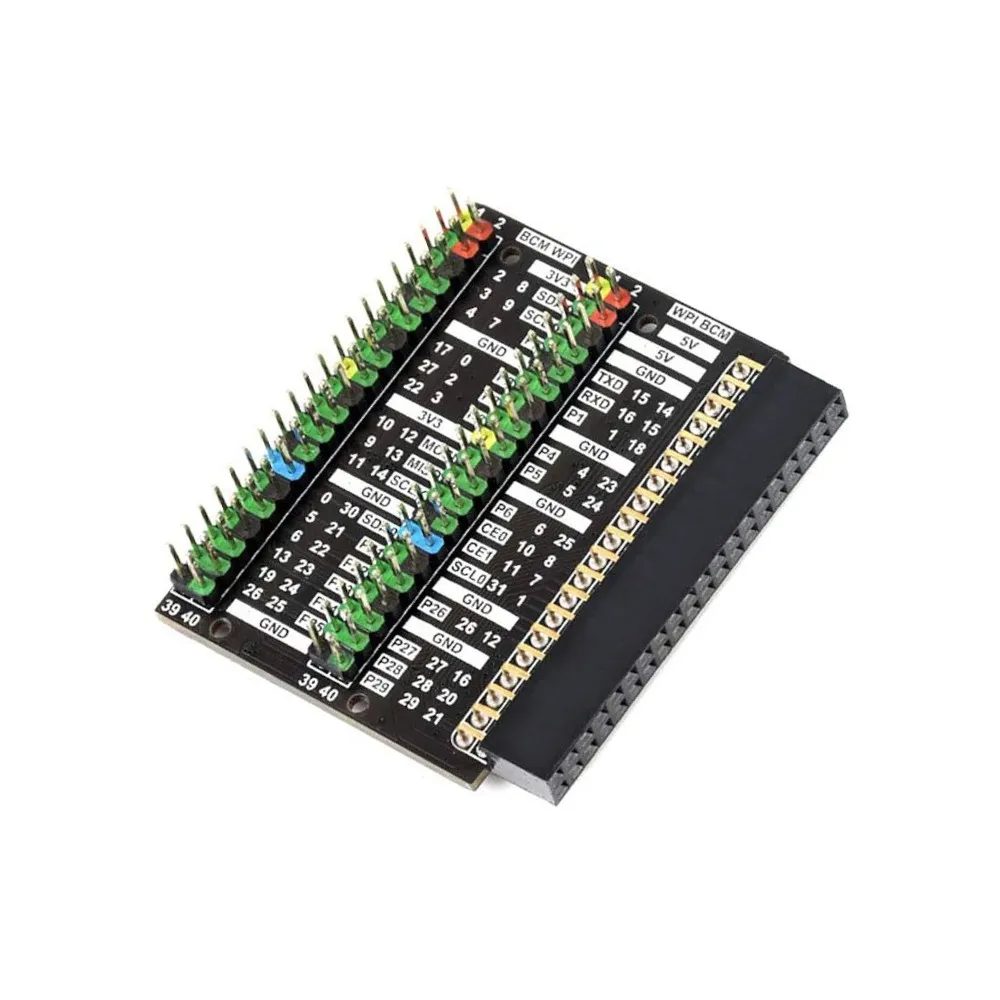

Waveshare Raspberry Pi 400 GPIO Header Adapter | Enhanced Prototyping | Breadboard Friendly Extension

The Engineering Behind Waveshare Raspberry Pi 400 GPIO Header Adapter

This GPIO Header Adapter is meticulously engineered to address the unique form factor of the Raspberry Pi 400, which integrates the computing power into a keyboard. It acts as a critical interface, exposing the full 40-pin GPIO header in a more accessible and standard vertical orientation, crucial for connecting external circuitry, sensors, and modules without physical obstruction. The adapter ensures electrical integrity, maintaining the 3.3V and 5V power rails, various ground pins, and data lines for I2C, SPI, UART, and PWM communication directly from the Pi’s BCM2711 SoC.

Constructed with high-quality PCB material and gold-plated headers, this adapter offers exceptional signal transmission stability and durability, even under frequent connections and disconnections typical in educational and prototyping environments. Its robust design is crucial for preventing wear and tear on the Raspberry Pi 400’s integrated header, extending the lifespan of the core SBC.

Seamless 40-Pin GPIO Extension

The primary technical feature is its ability to seamlessly extend all 40 GPIO pins from the Raspberry Pi 400 to a standard header format. This allows developers and students to easily connect jumper wires, breadboards, and a wide array of Raspberry Pi HATs and add-on boards, unlocking vast possibilities for custom hardware integration and rapid prototyping.

Optimized for Breadboard and HAT Compatibility

This adapter specifically resolves the operational pain point of the Raspberry Pi 400’s integrated GPIO header being difficult to access or integrate directly with standard prototyping tools. By converting it to a familiar vertical pin array, it ensures full compatibility with existing breadboards and a vast ecosystem of Raspberry Pi HATs, accelerating development cycles and reducing project setup complexities.

Optimized for Performance & Integration

• Compatibility: Specifically designed for Raspberry Pi 400
• Header Type: 40-pin standard male header extension
• Material: High-quality PCB with gold-plated pins
• Power Rails: Access to 3.3V and 5V power from RPi 400
• Communication Protocols: Supports I2C, SPI, UART, PWM, GPIO
• Usage: Ideal for prototyping, education, and custom HAT development

Features & Benefits

• Dedicated Raspberry Pi 400 Compatibility: Ensures perfect fit and electrical alignment, simplifying setup.
• Standard 40-Pin GPIO Breakout: Provides full access to all Raspberry Pi 400 GPIO pins for versatile projects.
• Enhanced Prototyping Access: Facilitates easy connection to breadboards, sensors, and external modules.
• Robust PCB Construction: Offers long-term durability and reliable electrical contact, even with frequent use.
• Gold-Plated Headers: Guarantees excellent signal integrity and corrosion resistance for stable connections.
• Plug-and-Play Design: Requires no complex configuration, allowing immediate integration into your projects.
