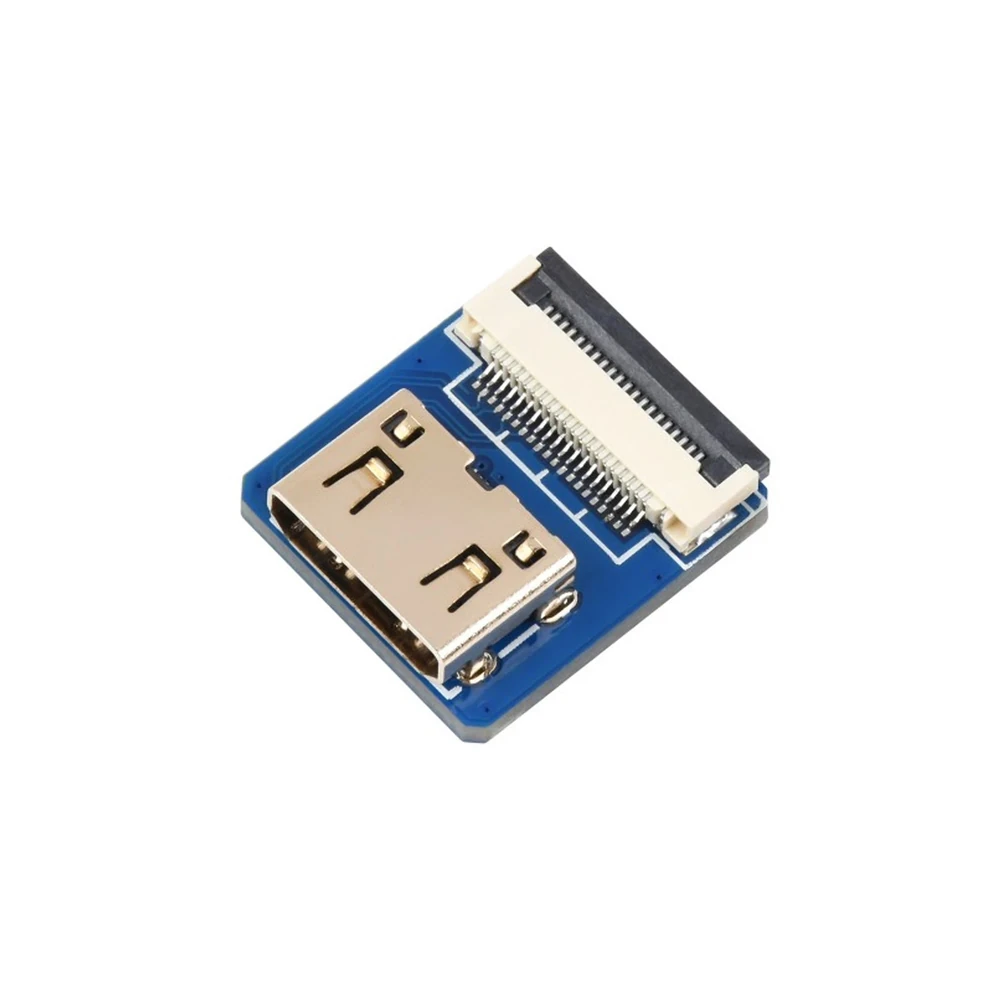

Waveshare Mini HDMI Adapter Horizontal (B)

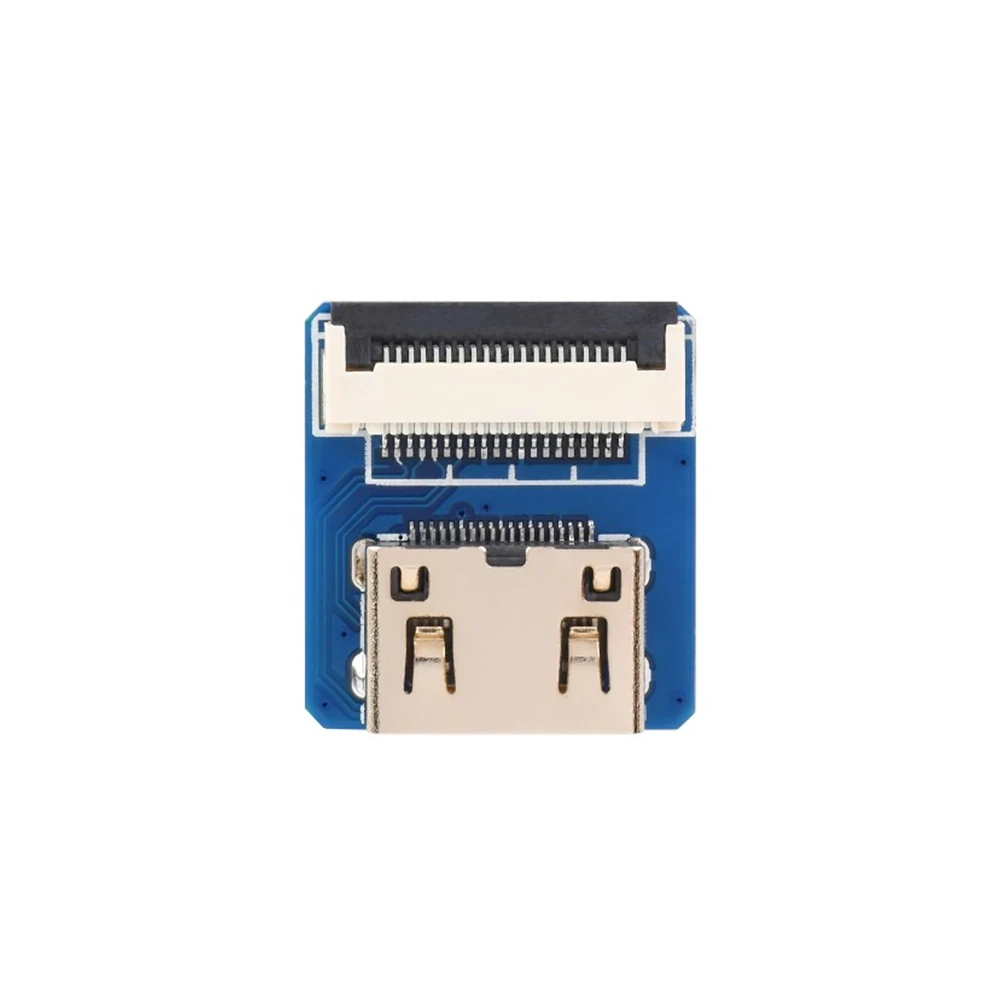

Waveshare Mini HDMI Adapter Horizontal (B) - Image 2

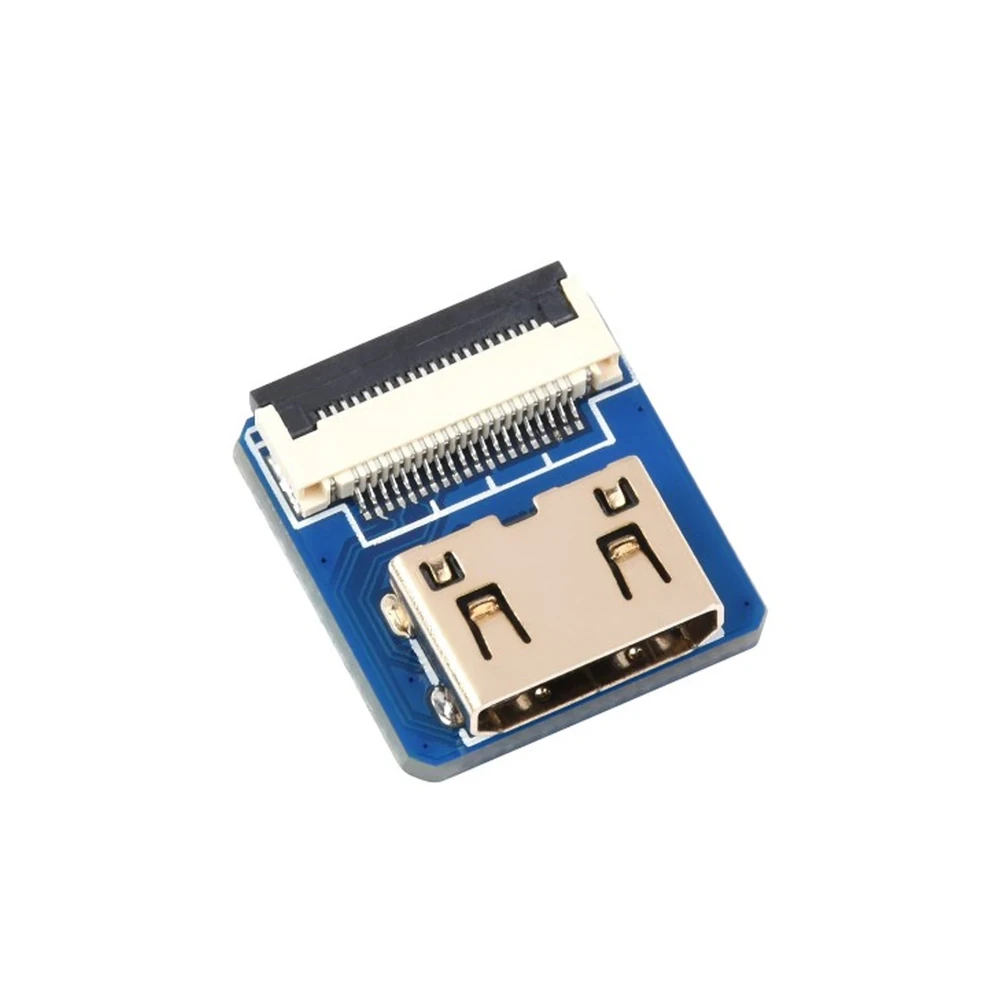

Waveshare Mini HDMI Adapter Horizontal (B) - Image 3

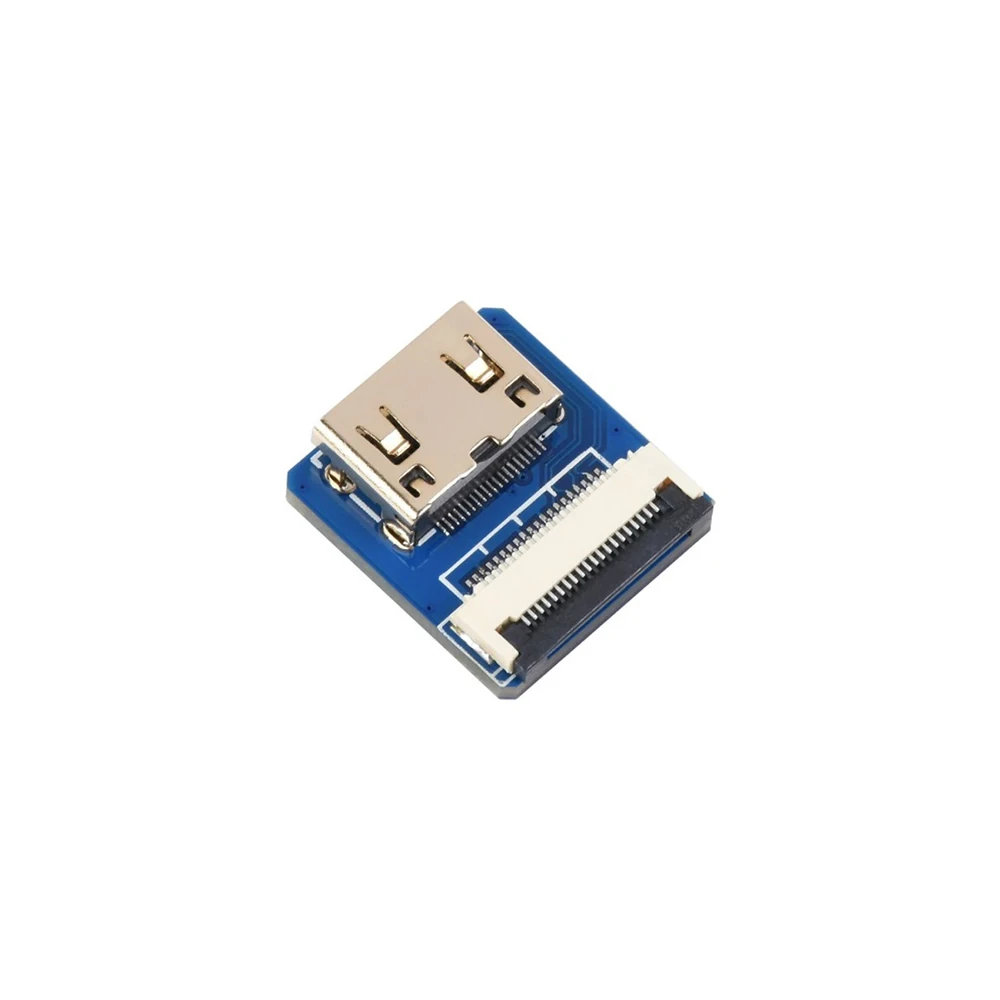

Waveshare Mini HDMI Adapter Horizontal (B) - Image 4

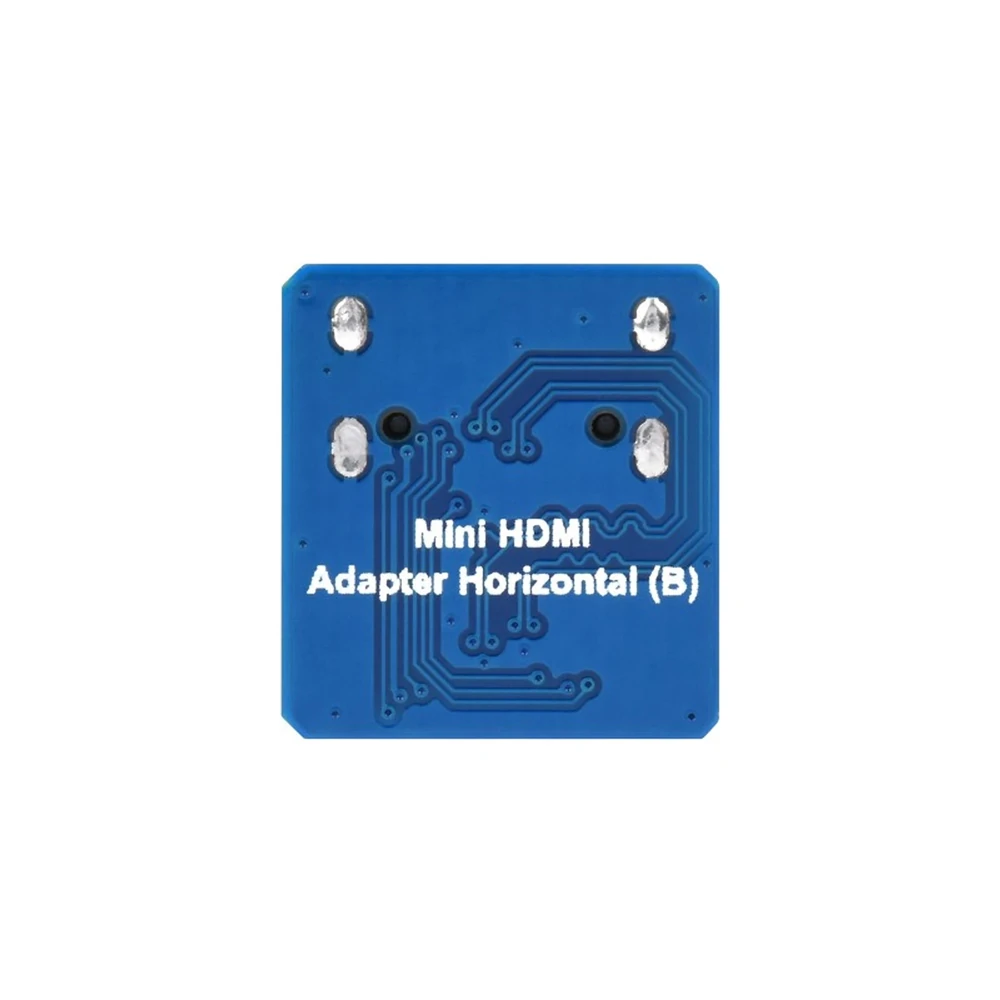

Waveshare Mini HDMI Adapter Horizontal (B) - Image 5
SKU: SBCD-1161
📋 GST Invoice Available

Waveshare Mini HDMI Adapter Horizontal (B)

₹249.00 (Inclusive of all taxes)
Out of Stock

This Waveshare Mini HDMI Adapter offers a horizontal (B) female-to-female configuration, ideal for compact DIY HDMI cable assemblies and extending Mini HDMI connections. Its small 17.5 × 16.0 mm footprint enables seamless integration into custom electronics and development projects with limited space.

Features

  • Mini HDMI Female to Female connection.
  • Horizontal (B) orientation for space-saving layouts.
  • Compact 17.5 × 16.0 mm design for easy integration.
  • Facilitates DIY HDMI cable construction and extension.

Out of stock

Description

The Waveshare Mini HDMI Adapter Horizontal (B) is a compact Mini HDMI female-to-female connector designed for DIY cable building and HDMI extension applications. Its horizontal design enables convenient cable management in projects with limited installation space, offering a practical solution for makers, hobbyists, and engineers.

Measuring just 17.5 × 16.0 mm, this adapter provides a small footprint for easy integration into custom electronics, multimedia devices, and development environments. It supports straightforward Mini HDMI interfacing, making it particularly useful for prototyping, repairs, and creating customized display connection solutions while maintaining compatibility with Mini HDMI standards. Its lightweight and practical design supports flexible HDMI cable configurations.

Key Features

  • Mini HDMI female-to-female connector for versatile use.
  • Horizontal (B) adapter orientation for specific spatial requirements.
  • Compact 17.5 × 16.0 mm size allows for integration in tight spaces.
  • Suitable for DIY HDMI cable projects, enabling custom cable lengths.
  • Enables Mini HDMI connection extension, useful for longer runs or repositioning.
  • Space-saving design minimizes overall hardware footprint.
  • Easy integration into custom electronics and embedded systems.
  • Ideal for prototyping and development applications requiring Mini HDMI connectivity.

Applications

  • DIY HDMI cable building for custom lengths and configurations.
  • HDMI extension applications in compact electronic projects.
  • Prototyping and development of multimedia devices.
  • Repairs and custom display connection solutions.
  • Integration into embedded systems with Mini HDMI output.

Technical Specifications

Connector ConfigurationMini HDMI Female to Female
Adapter TypeHorizontal (B)
ApplicationDIY HDMI Cable Assembly
Length17.5 mm
Width16.0 mm
Weight5 g

Frequently Asked Questions

What is the primary use case for the Waveshare Mini HDMI Adapter Horizontal (B)?

This adapter is designed for DIY HDMI cable assemblies, allowing users to create custom-length or specialty Mini HDMI cables. Its horizontal orientation is particularly useful for extending Mini HDMI connections in compact electronic projects where space is a critical consideration for cable routing and management.

What are the physical dimensions of this Mini HDMI adapter?

The adapter features a compact footprint, measuring 17.5 mm in length and 16.0 mm in width. This small size facilitates easy integration into custom enclosures, multimedia devices, and development boards, helping to minimize the overall physical volume required for your Mini HDMI connectivity solution.

Is this adapter compatible with standard HDMI cables?

No, this adapter specifically features Mini HDMI Female to Female connectors. It is designed to work with Mini HDMI cables and devices, not standard-sized HDMI cables or Micro HDMI connections. Ensure your source and display devices utilize Mini HDMI ports for proper compatibility and functionality.

Package Includes

  • 1 x Waveshare DIY HDMI Cable: Mini HDMI Adapter Horizontal (B)

Additional Information

Weight 0.005 kg
Dimensions 1.75 × 1.6 cm
