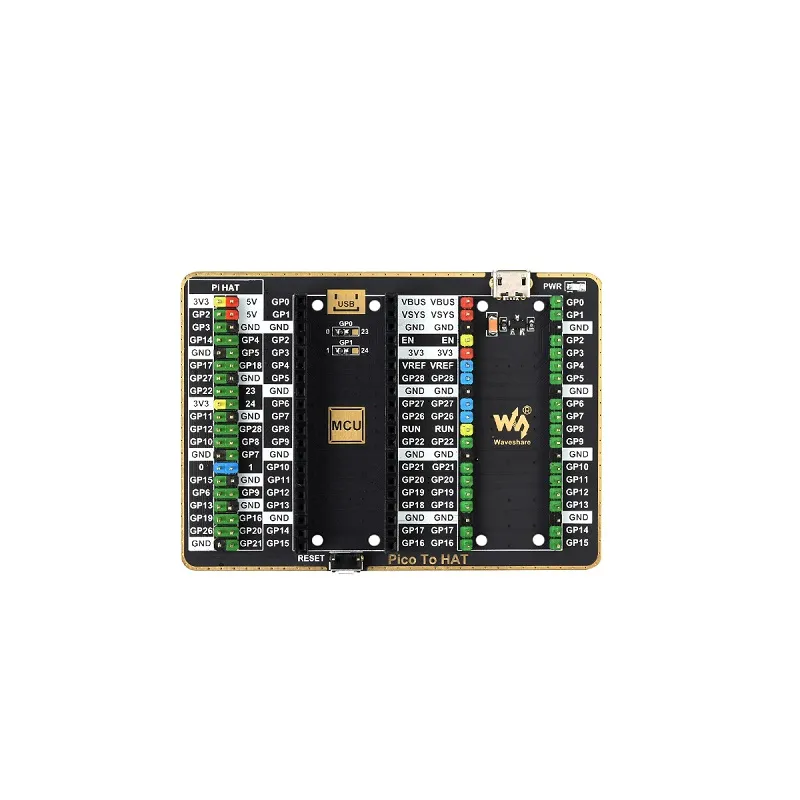

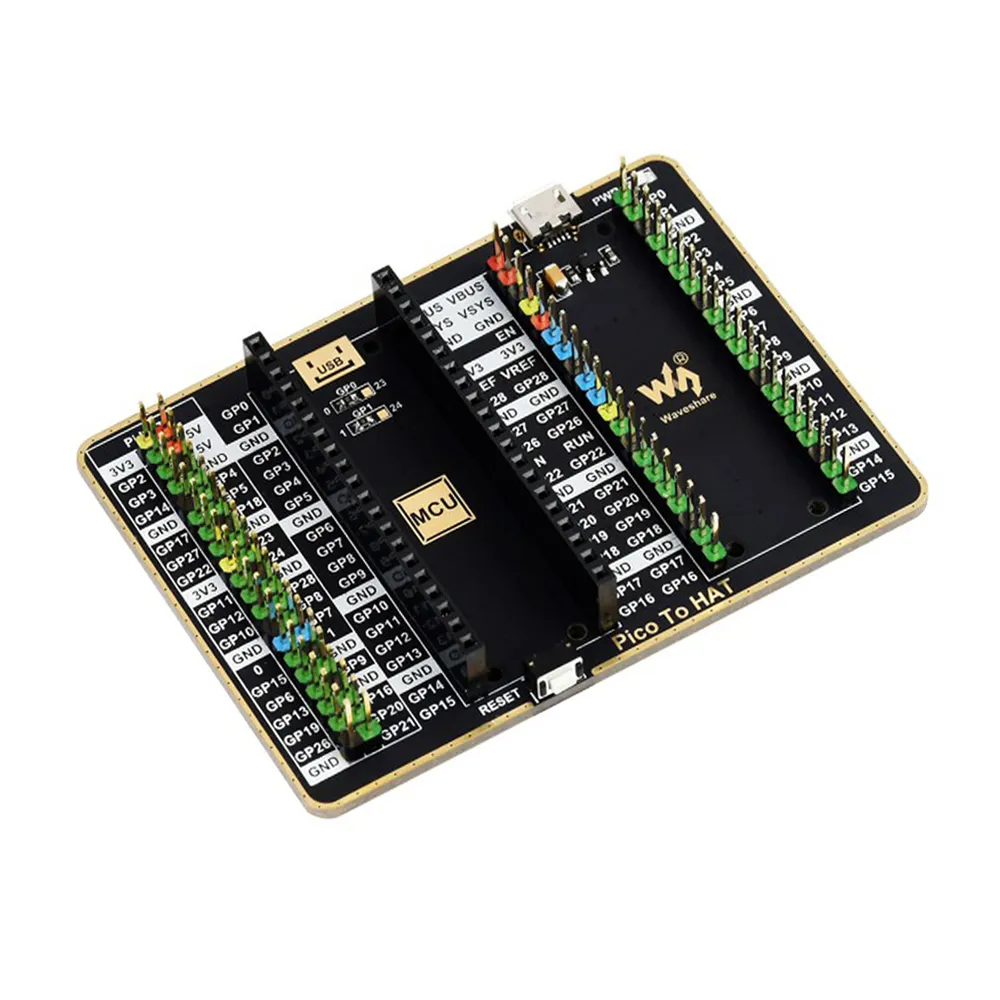

Waveshare GPIO Expander for Raspberry Pi Pico
The Waveshare GPIO Expander for Raspberry Pi Pico significantly extends your Pico’s I/O capabilities, featuring both a standard Raspberry Pi 40-pin header and an additional Pico 2×20-pin header for versatile module integration. It includes a USB input for external power, ensuring stable operation for connected peripherals.
Features
- Directly attaches to Raspberry Pi Pico via a dedicated female header.
- Provides a standard Raspberry Pi 40-pin GPIO header for extended peripheral compatibility.
- Offers an additional Pico 2×20-pin header for further expansion options.
- Integrated USB power input ensures stable power delivery to connected modules.
- Features clear pinout labels and an immersion gold process for enhanced usability and longevity.
Out of stock
The Waveshare GPIO Expander is engineered to significantly augment the input/output capabilities of your Raspberry Pi Pico projects. Designed for seamless integration, it features a central female pin header allowing direct attachment of a Raspberry Pi Pico (when soldered with male headers), or can be connected using jumper wires for flexible prototyping.
This expander diversifies your project options by exposing both a standard Raspberry Pi 40-pin header and an additional Pico 2×20-pin header, facilitating connections to a wide array of existing HATs, shields, and modules. A dedicated USB power input connector ensures a stable and ample power supply, crucial when driving multiple expansion modules or high-current peripherals, preventing brownouts and ensuring reliable operation for complex setups.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 8.5 × 6 cm |
