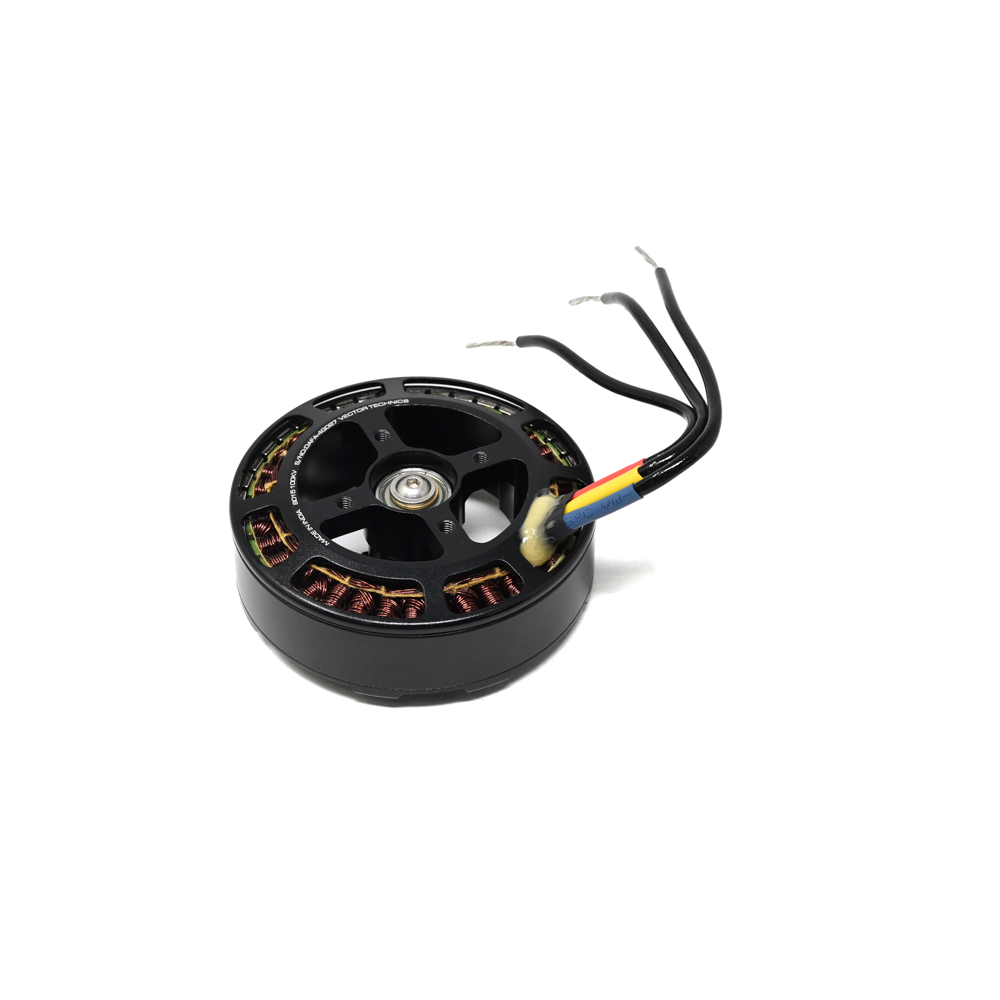

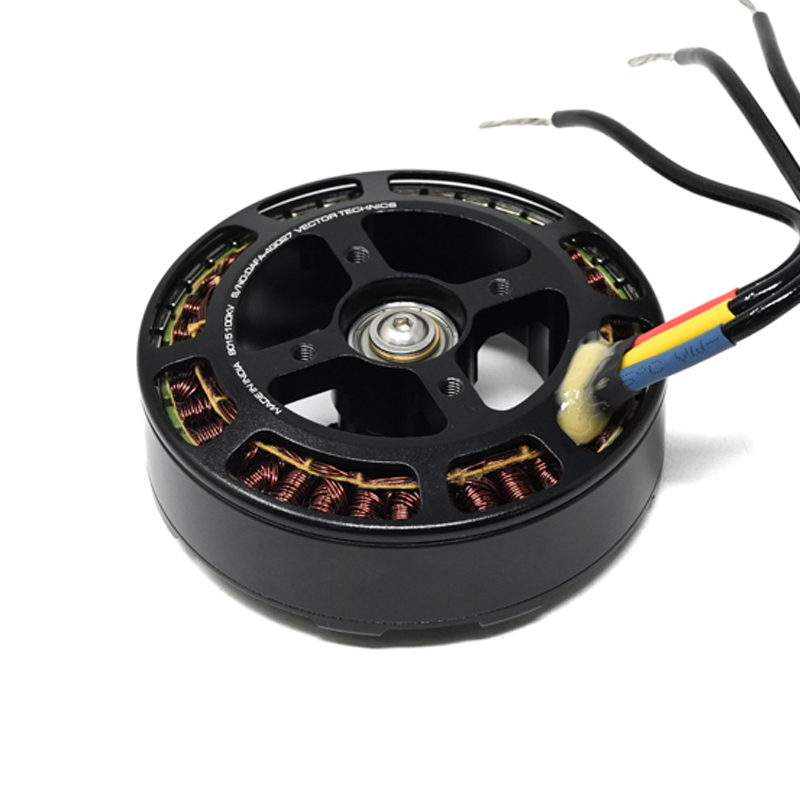

Vector Technics Technics Vector Technics 8015 SL- 100Kv Motor
The Vector Technics Technics 8015 SL is a 100KV brushless outrunner motor engineered for 12S LiHV (44-52V) heavy-lift and agricultural drone platforms, delivering up to 1495W continuous power and supporting propellers up to 32 inches in diameter.
Features
- 100KV rating optimized for high-torque, low-RPM applications on 12S LiHV (44-52V) systems.
- Delivers up to 1495W maximum continuous power for 180 seconds with a 40A continuous current rating.
- High power density design at 2.66 W/g (rated) and 3.895 W/g (maximum).
- Features a robust dual-bearing system (619/8-2Z) and an 8mm output shaft for heavy-duty propeller mounting.
- Mounting via 4x M4 screws on a 36mm bolt circle, compatible with large multirotor and industrial drone frames.
Out of stock
The Vector Technics 8015 SL motor is engineered for demanding UAV applications requiring sustained high torque and power efficiency. Its 100KV design prioritizes thrust generation at lower rotational speeds, making it ideal for large-diameter propellers up to 32 inches. The motor’s construction utilizes high-grade materials and a dual-bearing system to ensure reliability over its 1000-hour design life, even in challenging environments.
Operating within a 44V to 52V (12S LiHV) range, this motor provides a torque constant of 0.1245 Nm/A, enabling precise thrust control for payload-carrying drones. The IP45 rating offers a degree of protection against dust and water ingress, supporting its use in agricultural and surveying operations where environmental exposure is a factor.
Additional Information
| Weight | 0.568 kg |
|---|---|
| Dimensions | 14 × 14 × 12 cm |
