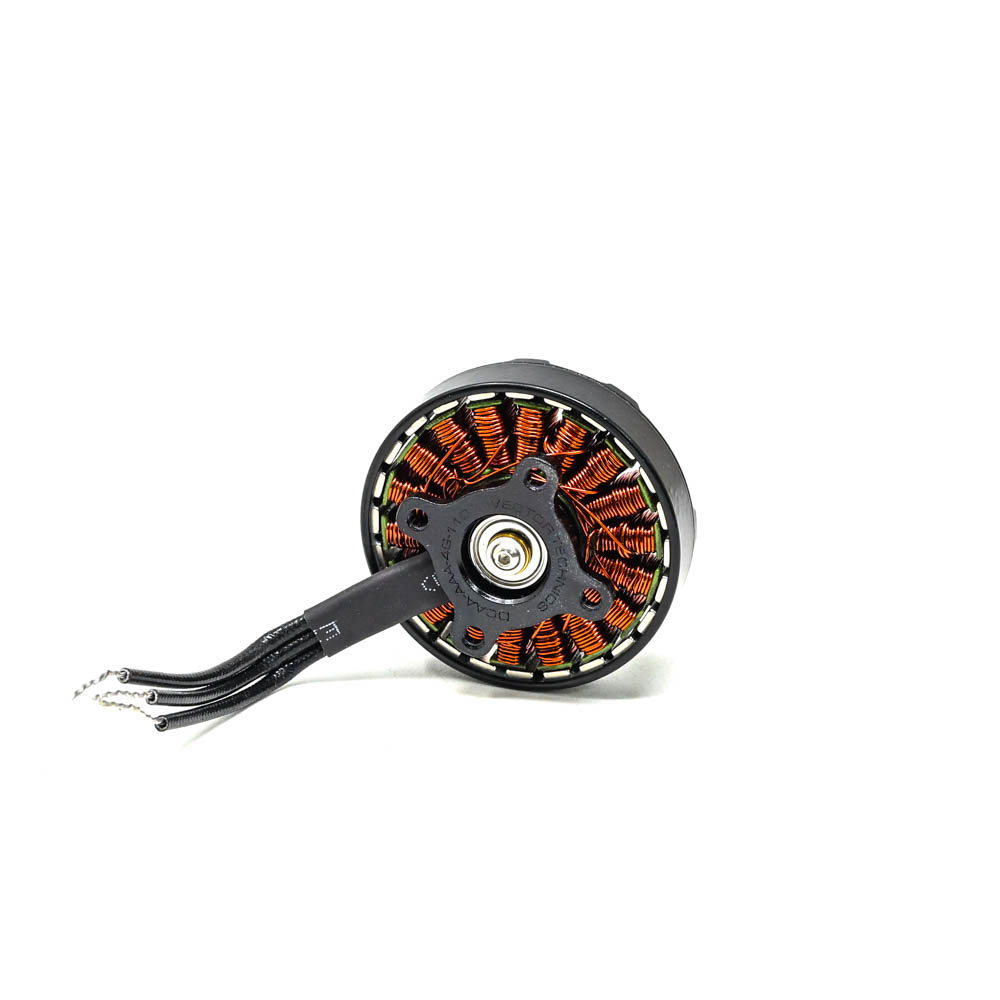

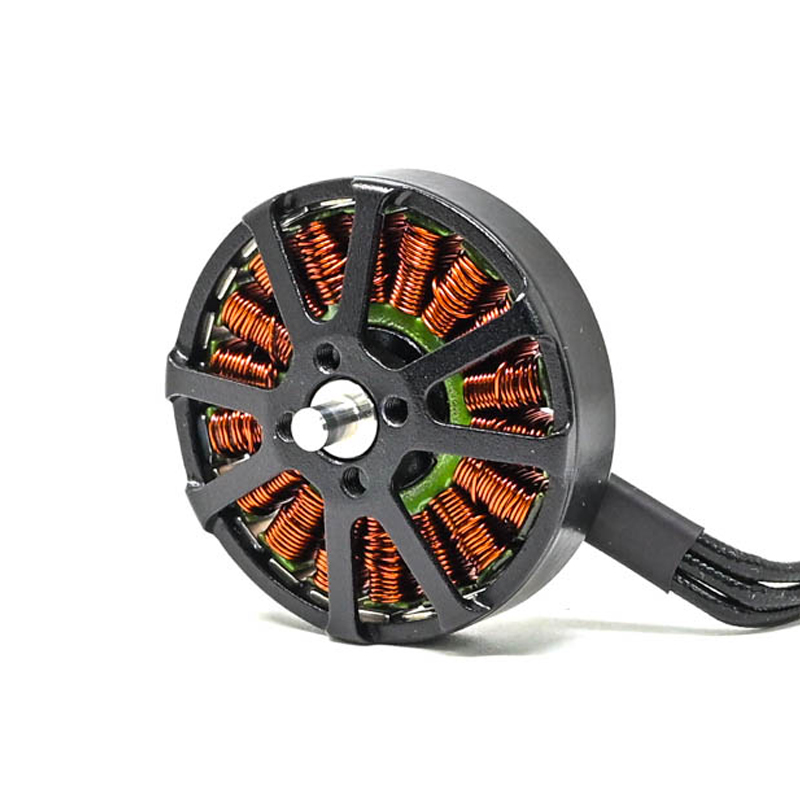

Vector Technics Technics Vector Technics 4006 -380Kv Motor
The Vector Technics Technics 4006 is a 380KV brushless motor engineered for high-efficiency, lightweight industrial and enterprise UAV applications. It operates on a 24V (6S LiHV) power system, delivering up to 233W of continuous power with a durable dual-bearing design.
Features
- 380KV rating optimized for 6S LiHV (24V) operation and high torque.
- Delivers up to 233W maximum continuous power (180 seconds).li>
- High power density design weighing only 67 grams.
- Features dual 619/4-2RS (SKF) bearings for extended durability.
- 18S24P stator configuration for smooth, efficient power delivery.
Out of stock
The Vector Technics 4006 -380Kv motor is engineered for demanding UAV platforms requiring a balance of power, efficiency, and low weight. Its 18S24P stator configuration and 380KV rating are optimized for 6S LiHV voltage, providing the high torque necessary for large propellers up to 16 inches in diameter while maintaining thermal headroom.
Constructed with a ø4mm output shaft and dual precision SKF bearings, the motor ensures reliable operation under continuous loads. The compact 44.6mm diameter and 20mm length contribute to its high power density, making it suitable for lightweight aerial mapping, surveillance, and other enterprise drone applications where endurance and payload capacity are critical.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
