Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD
Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD - Image 2
Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD - Image 3
Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD - Image 4
Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD - Image 5
Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD - Image 6
SKU: SBCD-1107
📋 GST Invoice Available

Uctronics U6260 Cluster Enclosure for 4x Raspberry Pi & 4x SSD

₹8,879.00 (Inclusive of all taxes)
Out of Stock

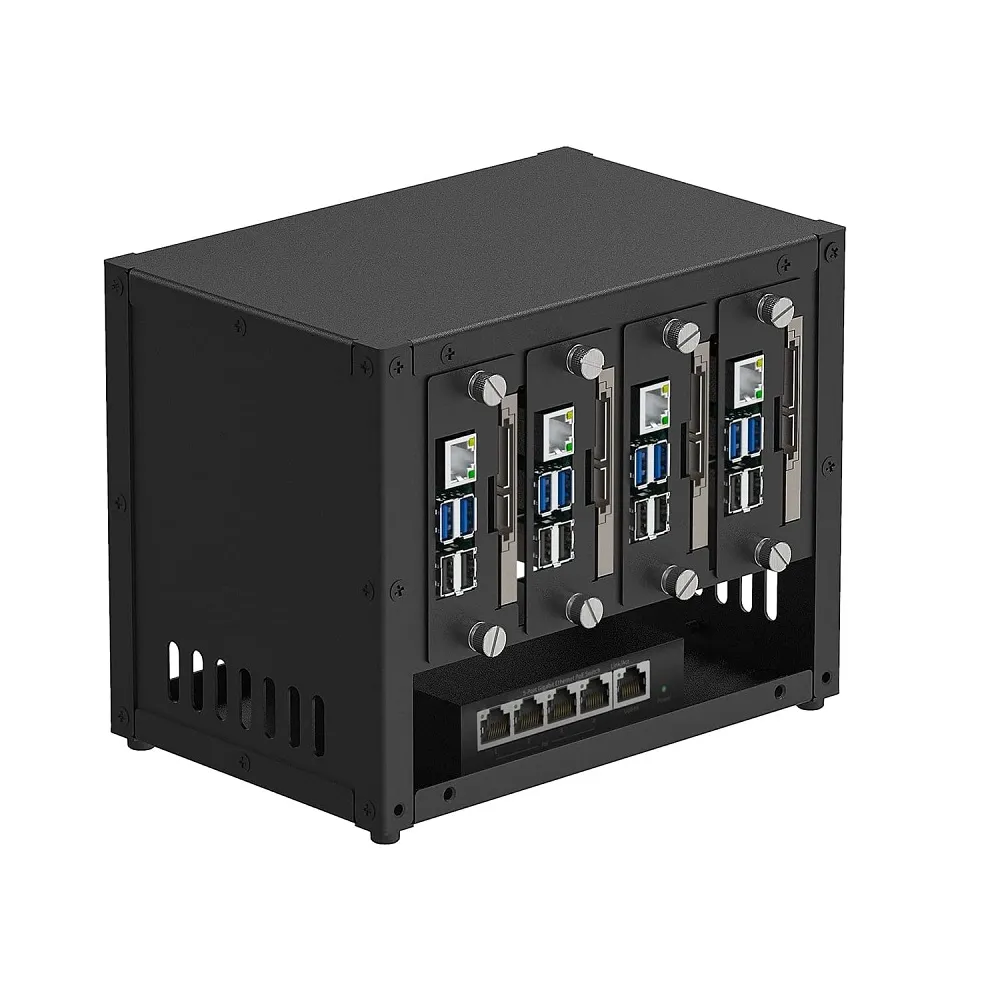

The Uctronics U6260 is a versatile cluster enclosure designed to house up to four Raspberry Pi 4B/3B+/3B boards and four 2.5″ SSDs, providing a robust desktop solution for Raspberry Pi arrays. It features support for PoE/PoE+ HATs, integrated cooling fans, and independent sliding baseplates for easy access.

Features

  • Houses up to 4x Raspberry Pi (4B/3B/3B+) and 4x 2.5″ SSDs for cluster computing or NAS.
  • Supports official Raspberry Pi PoE+ HATs and Uctronics mini PoE HATs.
  • Integrated dual 8cm cooling fans ensure effective thermal management for all nodes.
  • Features independent, slide-out baseplates with captive screws for convenient access and maintenance.
  • Expanded front and back panel openings enhance compatibility with various Ethernet switches.

Out of stock

Description

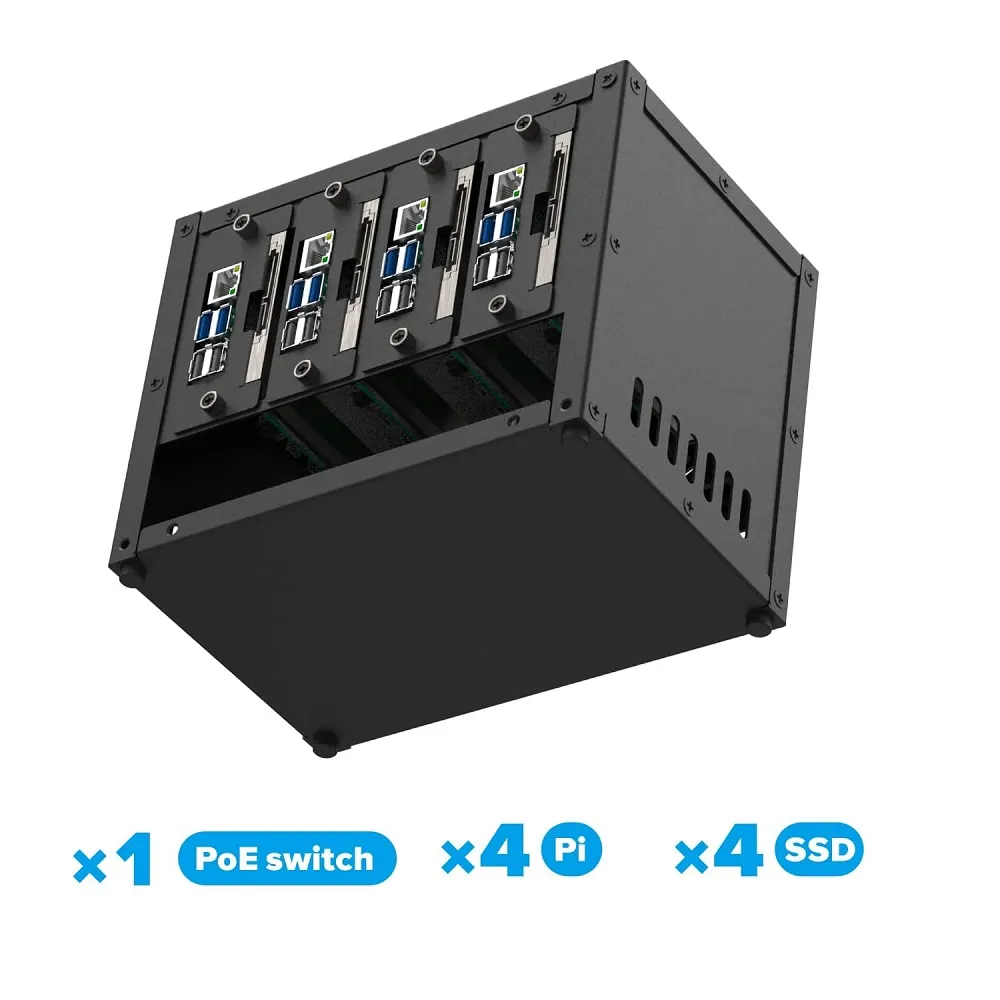

The Uctronics Raspberry Pi Cluster Complete Enclosure V3.0 represents a significant upgrade, offering a dedicated desktop hardware solution for Raspberry Pi arrays. Its compact yet spacious design is engineered to accommodate up to four Raspberry Pi boards, four 2.5” SSDs, an Ethernet switch, and two integrated cooling fans.

This V3.0 iteration introduces several enhancements, including the replacement of thumbscrews with captive loose-off screws on the mounting brackets for improved stability. Each Raspberry Pi mounting bracket operates independently, allowing for quick removal and installation. The front and back panel openings have also been expanded to ensure broader compatibility with various Ethernet switch models.

Ideal for a range of applications, this enclosure is perfect for building a home media server, a Raspberry Pi-based Network Attached Storage (NAS) device, or a media center. It also serves as an excellent platform for learning distributed computing, experimenting with deployment strategies, or setting up private game servers and LAN labs, providing an organized and accessible environment for multiple Raspberry Pi nodes.

Key Features

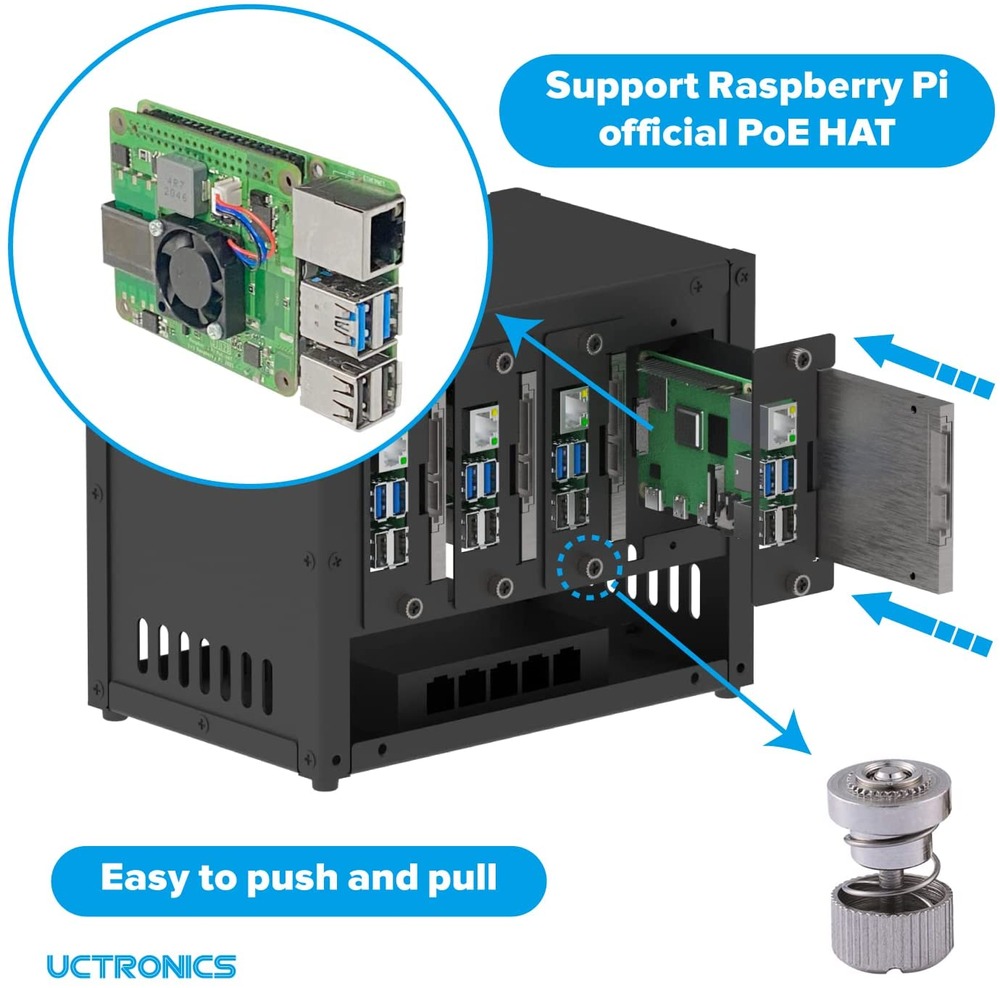

  • Upgraded design supports simultaneous fan power and PoE HAT usage, compatible with official Raspberry Pi PoE+ HAT and Uctronics mini PoE HAT.
  • Enhanced stability with captive loose-off screws on mounting brackets; widened front and back panels accommodate more Ethernet switch models.
  • Designed to securely house up to four Raspberry Pi 4B, 3B+, or 3B models alongside four 2.5” SSDs, ideal for complete desktop NAS solutions.
  • Includes reserved holes for an SD card extension adapter, enabling front-panel access to SD cards for convenience.
  • Features independent baseplates that slide in and out effortlessly, secured by captive loose-off screws, ensuring quick and convenient access to each Pi node for maintenance.
  • Optimized for building Raspberry Pi arrays, Network Attached Storage (NAS), LAN labs, or other projects requiring organized Pi management.

Applications

  • Building Raspberry Pi clusters for distributed computing and learning environments.
  • Creating robust home media servers or Network Attached Storage (NAS) solutions.
  • Setting up private game servers, educational LAN labs, or other multi-node services.
  • Consolidating and managing multiple Raspberry Pi boards in an organized desktop array.

Technical Specifications

Model No. / NameUctronics U6260 Cluster Enclosure

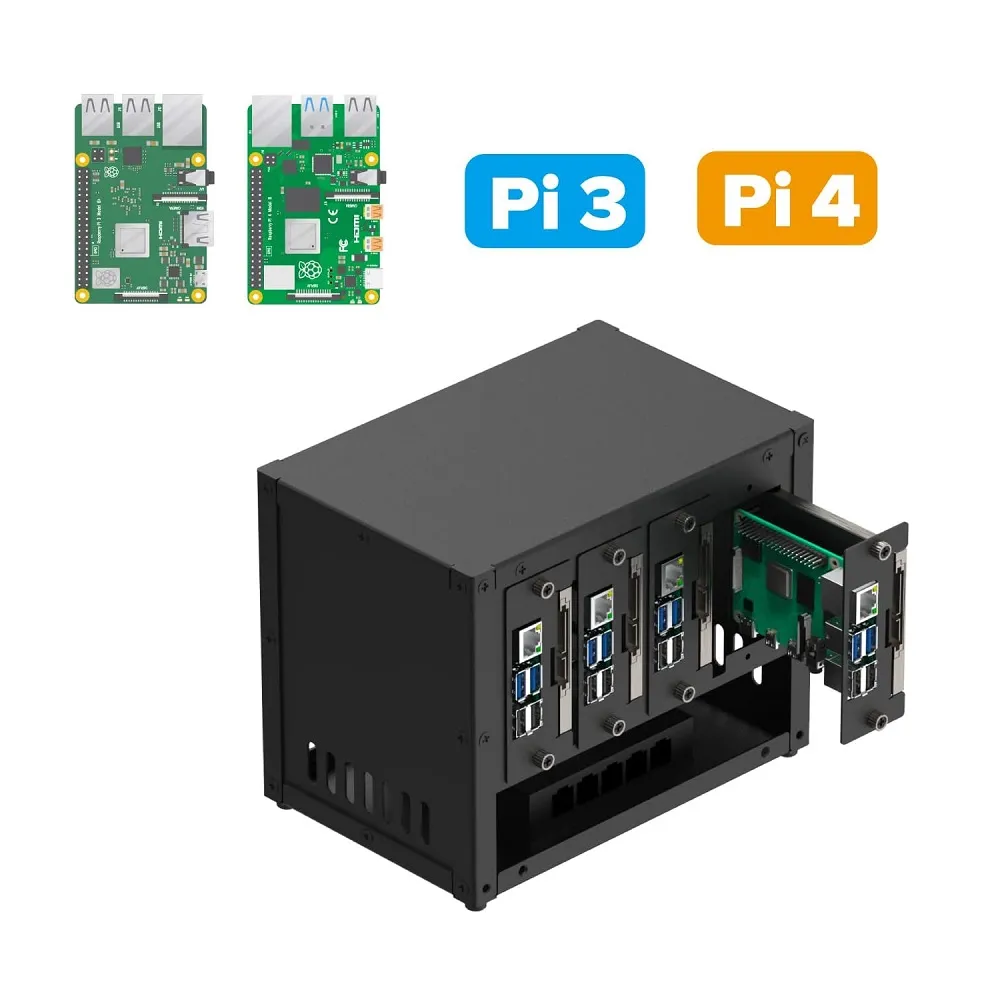

CompatibilityRaspberry Pi 4B, Raspberry Pi 3B+, Raspberry Pi 3B
ColorBlack
Supported Storage4x 2.5" SSDs

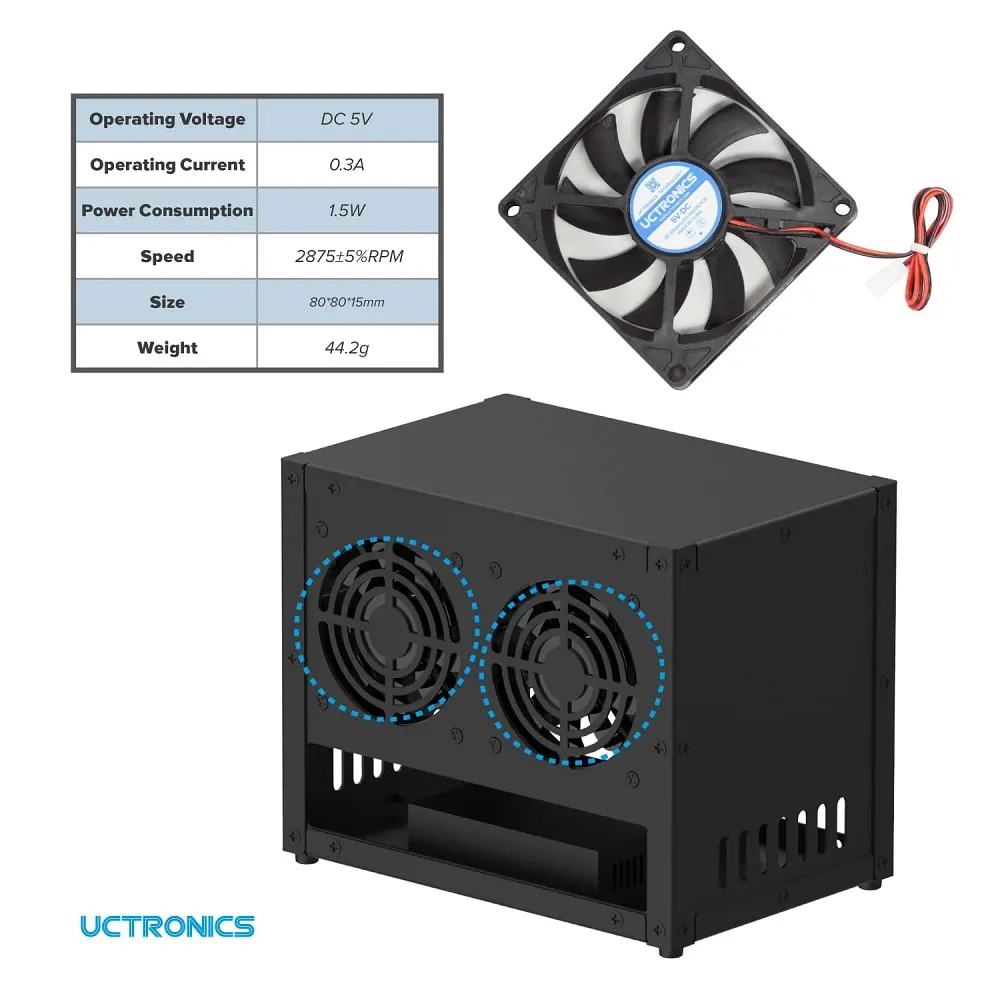

Cooling MethodAir (2x 8cm Cooling Fans)
MaterialMetal

Frequently Asked Questions

What Raspberry Pi models are compatible with the Uctronics U6260 enclosure?

The Uctronics U6260 enclosure is designed for compatibility with Raspberry Pi 4B, Raspberry Pi 3B+, and Raspberry Pi 3B models. It provides dedicated mounting points and sufficient space for up to four of these single board computers, making it versatile for various cluster setups.

Does this enclosure support Power over Ethernet (PoE) HATs?

Yes, the Uctronics U6260 enclosure is engineered to be compatible with both the official Raspberry Pi PoE+ HAT and Uctronics mini PoE HATs. This allows you to power your Raspberry Pi nodes and the integrated cooling fans simultaneously, simplifying cable management.

What storage options are supported by the U6260 cluster case?

This enclosure can house up to four 2.5-inch SSDs, transforming your Raspberry Pi cluster into a robust Network Attached Storage (NAS) or a highly capable home server for various data-intensive applications. Dedicated mounting screws are included for secure installation.

How does the enclosure manage heat dissipation for multiple Raspberry Pis?

The Uctronics U6260 includes two powerful 8cm cooling fans positioned to provide active airflow across all Raspberry Pi boards and SSDs within the enclosure. This proactive thermal management ensures optimal operating temperatures, enhancing stability and longevity for your cluster components.

Package Includes

  • 4 x Raspberry Pi Mounting Bracket
  • 16 x M2.5*5 Screws (for Raspberry Pi)
  • 16 x M3*5 Screws (for SSD)
  • 32 x M3*4 Screws (for Framework)
  • 4 x Foot Pads
  • 8 x M5*10 Screws (for Fan)
  • 2 x 8cm Cooling Fans
  • 1 x Fan Adapter
  • 4 x Framework Sections
  • 2 x Bottom/Top Panels
  • 2 x Side Panels
  • 1 x Front Panel
  • 1 x Back Panel

Additional Information

Weight 0.93 kg

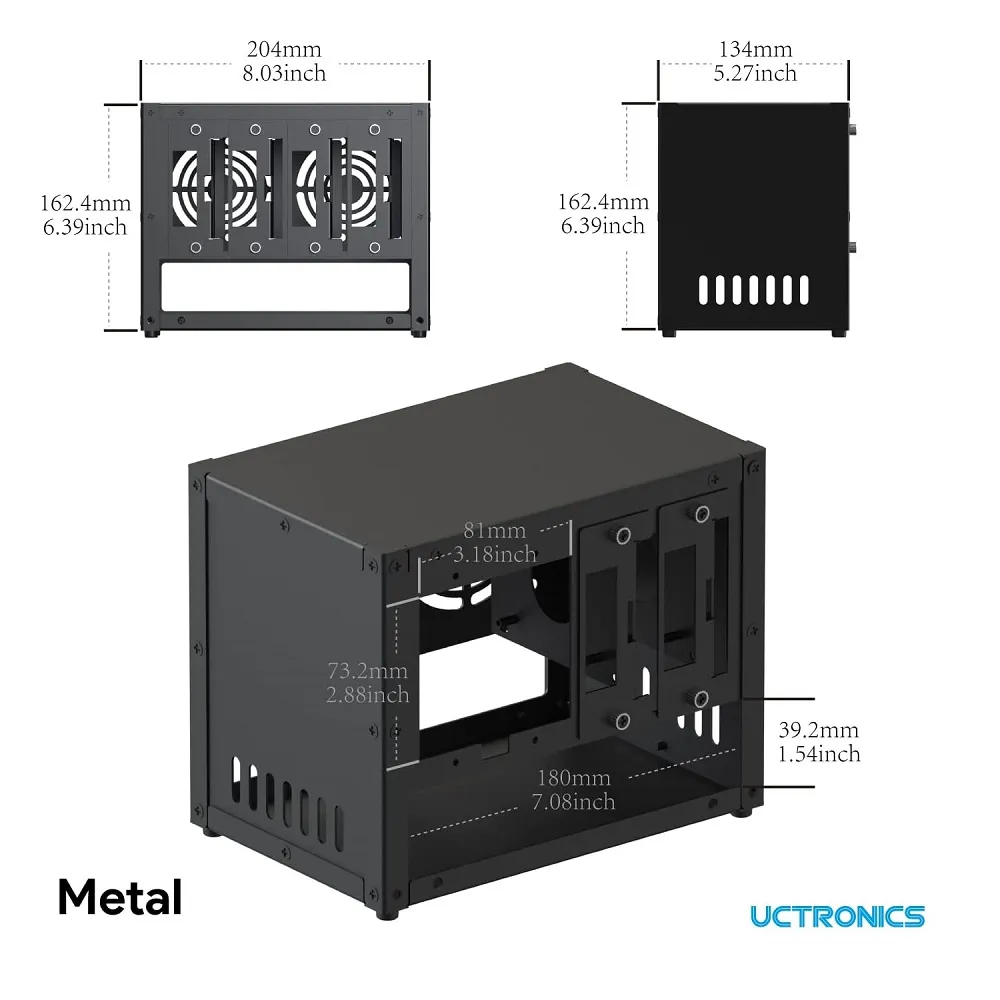

Dimensions 17 × 10 × 7 cm
