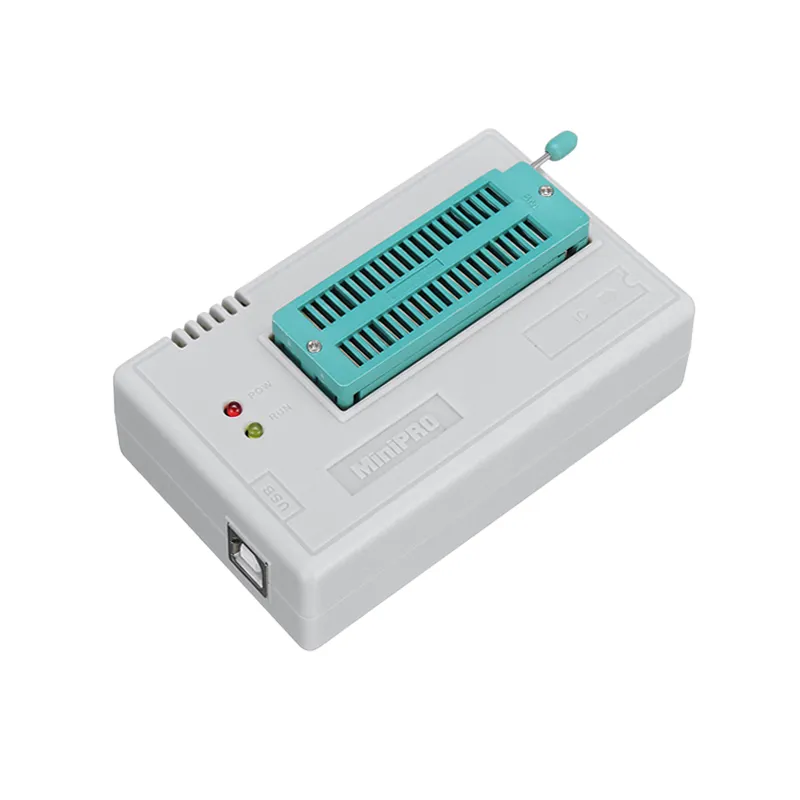

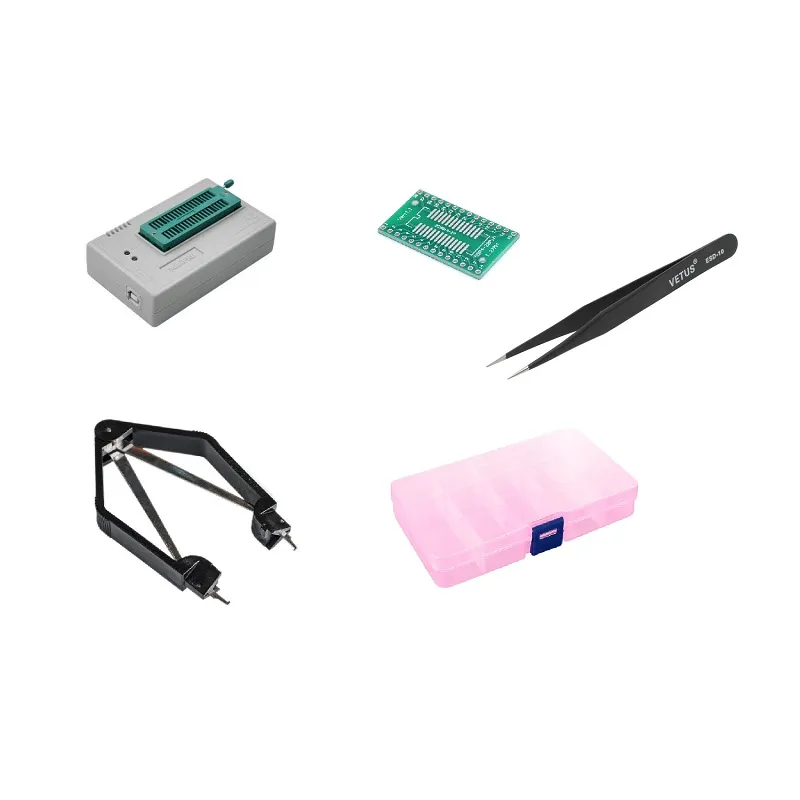

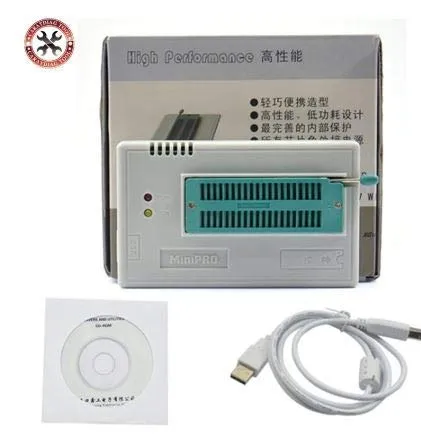

TL866A Universal Programmer Kit w/ 6 IC Adapters
The TL866A Universal Programmer is a comprehensive tool supporting over 13,000 devices, including EPROMs, EEPROMs, SPI FLASH, and various microcontrollers. It features fast SPI programming and connects directly to a PC via USB, eliminating the need for an external power supply.
Features
- Supports a vast range of devices including parallel ROM, EPROM, EEPROM, and serial FLASH chips up to 48-PIN/64Mbits.
- Fast SPI algorithm ensures quick and efficient programming of various memory types.
- USB-powered design provides convenience, requiring no external power adapter.
- Compatible with a broad spectrum of microcontrollers including 51 series, AVR, and Microchip Technology PIC families.
Out of stock
The MiniPRO TL866A is a versatile universal programmer engineered to support an extensive library of over 13,000 electronic devices. This includes a wide array of EPROMs, EEPROMs, SPI FLASH memories, DataFlash, and numerous microcontroller families. Its advanced Fast SPI algorithm mode significantly enhances programming speed, making it an efficient solution for high-volume or time-sensitive projects. The programmer’s capability to update its built-in hardware firmware ensures it remains current with the latest chip support and features.

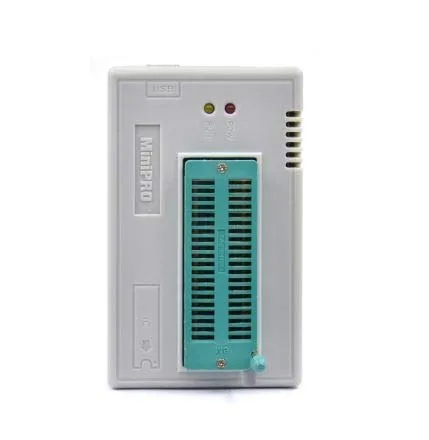

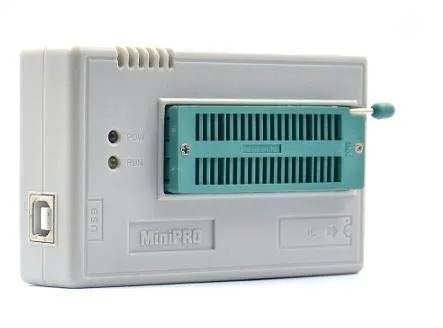

Connectivity is straightforward: simply plug the MiniPRO TL866A into any PC via a standard USB port. This USB connection also provides all necessary power, negating the requirement for an external power supply and simplifying your workbench setup. Components can be programmed either by directly inserting them into the ZIF40 socket or by utilizing the provided ICSP cable via the HE10 connector, offering flexibility for both in-circuit and out-of-circuit programming.
Beyond memory chips, the TL866A offers comprehensive support for various microcontroller architectures, including the popular 51 series, AVR series (ATMEGA, ATtiny, AT90XXX), and Microchip Technology PIC microcontrollers (PIC10, PIC12, PIC16, PIC18). It also features support for GAL programmable logic devices, SRAM testing, and logic ICs from the 54/74 and CMOS4000 series. Its robust design includes current and overvoltage protection, safeguarding both the programmer and the devices being processed.
Additional Information
| Weight | 0.095 kg |
|---|---|
| Dimensions | 10 × 6 × 2.5 cm |
