TE Connectivity GAG22K7MCD419 NTC Thermistor, 22 kΩ @25°C, B-value 3499 K, Free Hanging Probe, Wire Leaded
The TE Connectivity GAG22K7MCD419 is a high-precision, fast-response NTC thermistor probe designed for accurate temperature measurement in medical, industrial, and scientific applications. Featuring a miniature glass-encapsulated bead and nickel wire leads, it offers a rapid 30 ms time constant in liquids and operates over a -40°C to 125°C range.
Features
- High-precision NTC thermistor with 22 kΩ resistance at 25°C and B-value of 3499 K
- Ultra-fast response time with a 30 ms time constant in liquids
- Miniature glass-encapsulated bead design with a maximum diameter of 0.38 mm
- Durable construction with solid nickel leads and polyester insulation
- Hermetically sealed and epoxy-potted for stability in demanding environments
Out of stock
The TE Connectivity GAG22K7MCD419 is a Negative Temperature Coefficient (NTC) thermistor engineered for applications requiring high accuracy and rapid thermal response. Its core sensing element is a miniature glass-encapsulated bead, which provides excellent stability and protection against environmental factors. The thermistor is hermetically sealed and potted in epoxy resin, with a polyimide tube offering additional insulation and durability for long-term reliability.

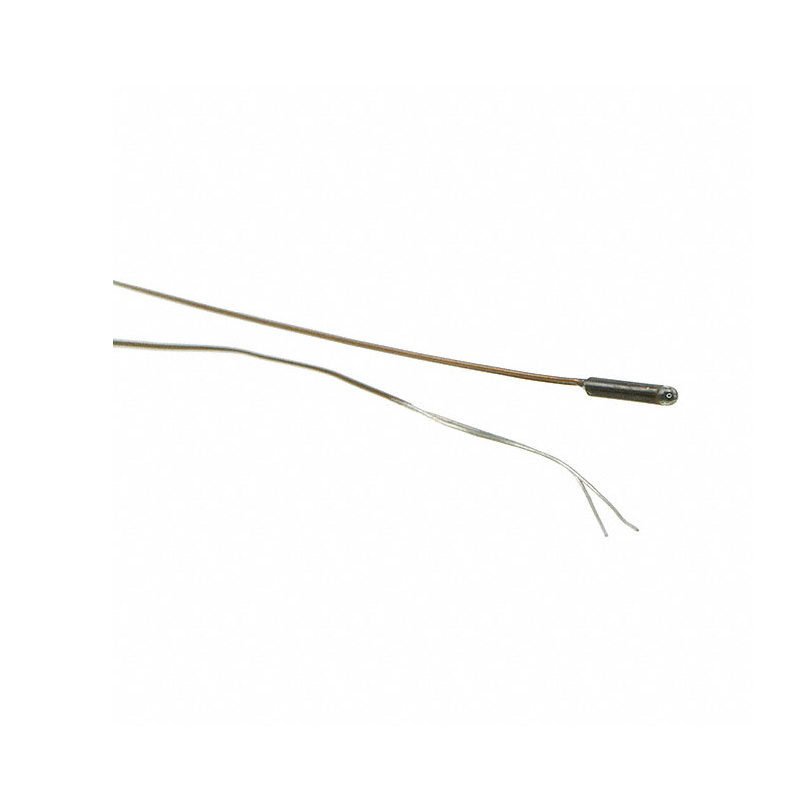

Welded to solid nickel leads, this free-hanging probe delivers a very fast time constant of 30 milliseconds when immersed in liquids, making it suitable for dynamic temperature monitoring. The specified resistance of 22 kΩ at 25°C with a Beta (B) value of 3499 K defines its precise resistance-temperature curve, enabling accurate measurements from -40°C to 125°C for the component, with a recommended operating range of 0°C to 70°C for the assembled unit.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 6 × 6 × 2 cm |
