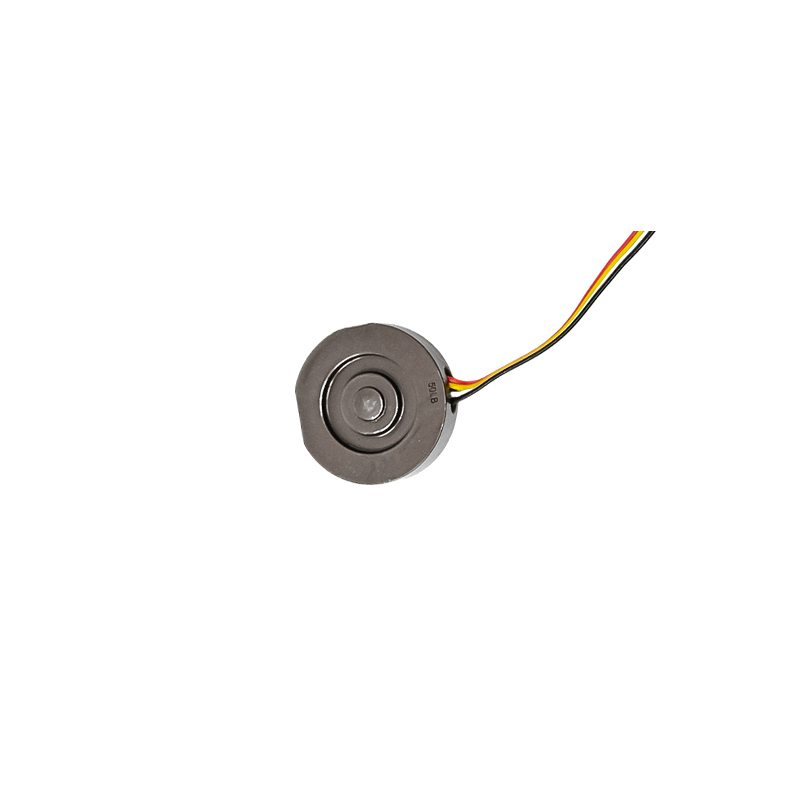

TE Connectivity FX29K0-100A-0050-L Load Cell, Compact Compression, 50 lb, 5.5 V, 0 °C to 50 °C, FX29 Series
The TE Connectivity FX29K0-100A-0050-L is a compact compression load cell rated for 50 lb (22.68 kg) force measurement, featuring a rugged stainless steel housing and analog mV output. It is designed for integration into medical devices, industrial equipment, and portable systems operating from a 5.5V DC supply.
Features
- 50 lb (22.68 kg) compression load rating with high over-range capability
- Stainless steel housing ensures durability and dimensional stability
- Microfused sensing technology for excellent span and zero-point stability
- Standard analog mV output, with optional amplified or I²C digital versions
- Compact 20mm x 20mm footprint and ultra-low 3mA operating current
Out of stock
The FX29K0-100A-0050-L load cell from TE Connectivity employs advanced Microfused technology, where strain gauges are directly bonded to a stainless steel sensing element. This process creates a monolithic structure that delivers superior mechanical stability, high resolution, and a long operational cycle life, making it ideal for precision force measurement in demanding environments.
Designed for compression applications within a 0°C to 50°C operating range, this sensor provides a ratiometric analog millivolt output proportional to the applied load. Its compact, rugged construction and low power consumption make it suitable for embedded applications in portable medical devices, fitness equipment, and industrial automation systems where space and reliability are critical.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2 × 2 cm |
