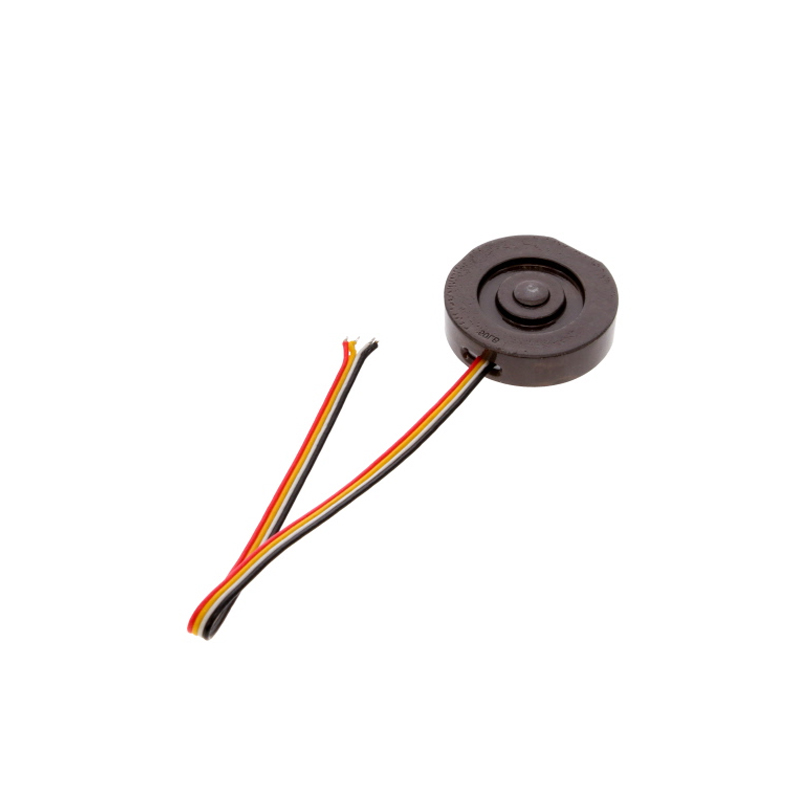

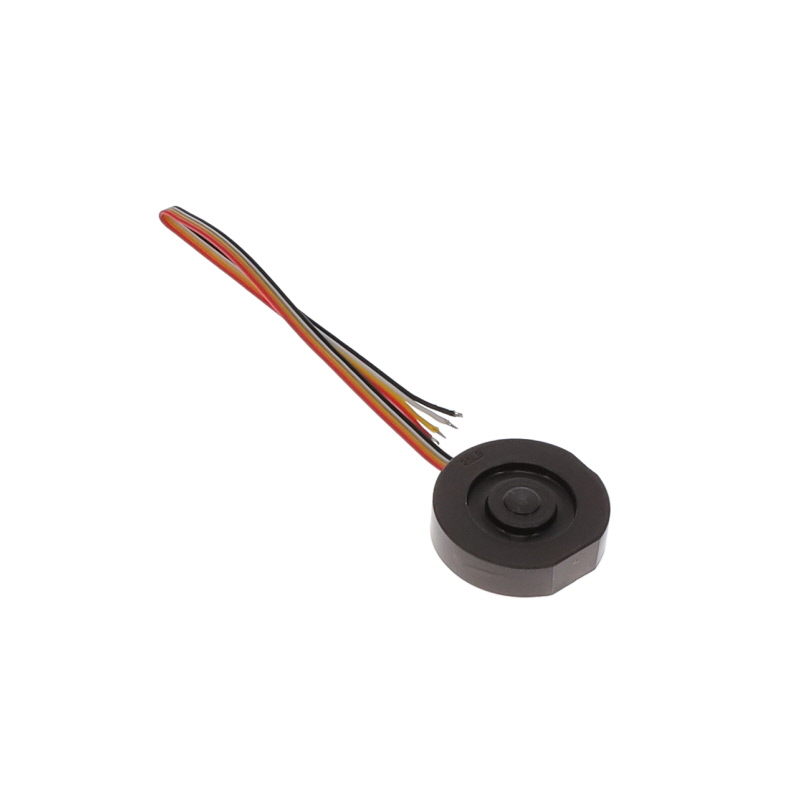

TE Connectivity FX293X-100A-0025-L Load Cell, Compact Compression, 25 lbf, mV/Analog/I2C Output

Name: TE Connectivity FX293X-100A-0025-L Load Cell, Compact Compression, 25 lbf, mV/Analog/I2C Output
Brand: TE Connectivity
SKU: SENS-1558
Price: 4529.00 INR
Availability: OutOfStock

₹4,529.00 (Inclusive of all taxes)

Out of Stock

The TE Connectivity FX293X-100A-0025-L is a compact compression load cell designed for precision force measurement in embedded OEM systems, robotics, and medical devices. It offers flexible mV, analog (0.5–4.5V), or digital I2C output, compatible with 3.3V/5V microcontrollers and industrial DAQ systems.

Features

25 lbf (≈11.34 kg) compression force capacity with 2.5× overload protection.
Microfused MEMS strain gauge technology ensures high repeatability and long-term stability.
Flexible output options: raw mV, amplified analog (0.5–4.5V), or digital I2C interface.
Rugged stainless steel enclosure for durability in compact, space-constrained designs.
Low power operation (3 mA typical) suitable for battery-powered portable devices.

Out of stock

Get Notified When Available

Description

The FX293X-100A-0025-L load cell from TE Connectivity’s FX29 Series utilizes advanced Microfused MEMS strain gauge technology, bonding the sensing element directly to the stainless steel structure. This process delivers exceptional measurement repeatability, minimal hysteresis, and stable zero-point output over extended operational cycles, making it ideal for high-precision applications.

Designed for embedded integration, its compact 20 x 20 mm footprint and lightweight 6-gram construction allow for installation in tight spaces within robotics joints, medical infusion pumps, or portable digital scales. The sensor operates from a 1.0V to 6.0V DC supply and is rated for environments from 0°C to 50°C, ensuring reliable performance in controlled indoor settings.

Key Features

High-precision compression sensing with a rated capacity of 25 lbf (11.34 kg).
Robust Microfused MEMS technology provides excellent long-term stability and cycle life.
Configurable output: raw millivolt signal, conditioned 0.5–4.5V analog, or digital I2C.
Rugged, compact stainless steel housing ensures mechanical durability.
High overrange capability withstands loads up to 2.5 times the rated capacity.
Low current consumption (3 mA typical) for energy-efficient, portable designs.
OEM-friendly form factor and mounting options for easy system integration.
Stable thermal performance across the 0°C to +50°C operating range.

Applications

Precision force feedback in robotic grippers and collaborative robot joints.
Patient weight monitoring and drug delivery force sensing in medical infusion pumps.
Compact digital bench scales and portable weighing systems.
Force measurement in fitness equipment like smart dumbbells or resistance trainers.
Embedded OEM systems requiring reliable, low-profile compression sensing.

Technical Specifications

Manufacturer Part Number	FX293X-100A-0025-L
Series	FX29
Item Type	Load Cell
Force Capacity	25 lbf (≈11.34 kg)
Output Options	mV, Analog (0.5–4.5V), Digital I2C
Supply Voltage	1.0 VDC to 6.0 VDC
Operating Temperature	0°C to +50°C
Dimensions (L x W)	20 mm x 20 mm
Weight	6 g
Overload Protection	Up to 2.5× rated load
Typical Current Consumption	3 mA
Housing Material	Stainless Steel

Frequently Asked Questions

What are the available output signal options for this FX293X load cell?

This load cell offers three configurable output modes. It provides a raw millivolt (mV) signal proportional to the applied force. Alternatively, it can be configured for a conditioned analog output of 0.5V to 4.5V for direct ADC connection. The third option is a digital I2C interface, providing calibrated digital readings for easy integration with microcontrollers like Arduino or Raspberry Pi.

What is the recommended supply voltage and power consumption?

The FX293X-100A-0025-L operates from a wide DC supply range of 1.0V to 6.0V, making it compatible with both 3.3V and 5V logic systems. Under typical conditions, the sensor draws approximately 3 mA of current, which is suitable for battery-powered and portable applications where low energy consumption is critical.

How durable is this load cell, and what is its overload capacity?

Built with a rugged stainless steel enclosure and TE's Microfused MEMS technology, the load cell is designed for long-term reliability and high cycle counts. It features a high overrange capability, allowing it to withstand compressive loads up to 2.5 times its rated 25 lbf capacity without permanent damage or calibration shift, providing a safety margin in dynamic applications.

What are the physical dimensions and mounting considerations?

The sensor has a compact footprint of 20 mm by 20 mm and weighs only 6 grams, making it ideal for space-constrained designs. For accurate measurement, it must be mounted such that the compressive force is applied evenly to the central sensing area. Refer to the official TE Connectivity datasheet for detailed mechanical drawings and recommended mounting hardware specifications.
