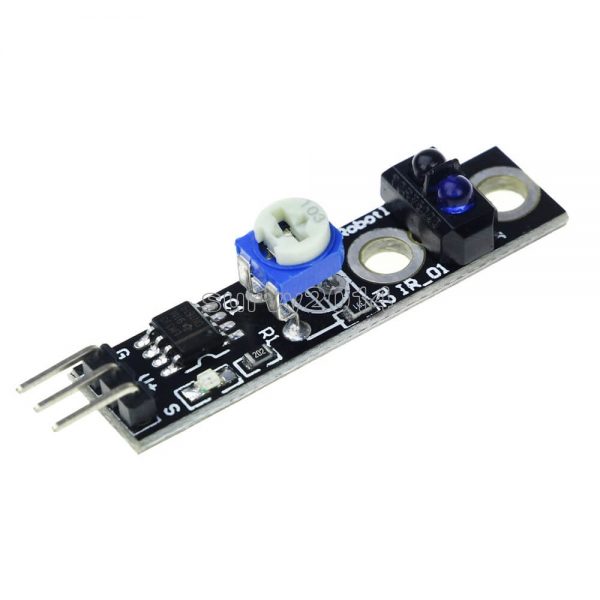

TCRT5000 Single Channel Line Tracking Sensor Module

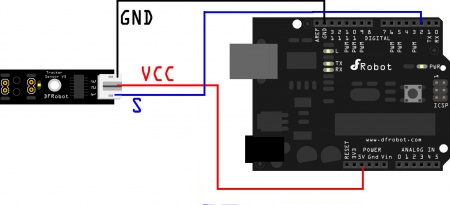

The TCRT5000 Single Channel Line Tracking Sensor Module is a compact infrared reflectance sensor designed for line-following robots and surface detection applications. It provides both analog and digital outputs compatible with 3.3V and 5V microcontrollers like Arduino, Raspberry Pi, and ESP32.
Features
- Infrared (IR) reflectance sensor for detecting lines and surfaces.
- Provides both analog and digital voltage outputs for flexible interfacing.
- Optimal sensing distance of 3mm with a detection range of 1-8mm.
- Low power consumption with a supply current ≥20mA at 3-5.5V DC.
- Compact PCB with mounting holes and status LED indicator for easy integration.
Out of stock
The TCRT5000 module integrates an infrared emitter and a phototransistor in a single package, utilizing the principle of differential light absorption. When IR light strikes a reflective (white) surface, it is reflected back to the phototransistor, generating a high signal. On a non-reflective (black) surface, the light is absorbed, resulting in a low signal. This binary contrast enables precise line tracking.
The module includes onboard signal conditioning circuitry that provides a clean digital output via a comparator, as well as a raw analog output for threshold adjustment. Its compact form factor and pre-drilled mounting holes facilitate quick installation in robotic platforms, educational kits, and automated guidance systems.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 4.2 × 1 cm |
