TBS Triumph FPV Antenna With Male RP-SMA Connector
TBS Triumph FPV Antenna With Male RP-SMA Connector - Image 2
TBS Triumph FPV Antenna With Male RP-SMA Connector - Image 3
TBS Triumph FPV Antenna With Male RP-SMA Connector - Image 4
TBS Triumph FPV Antenna With Male RP-SMA Connector - Image 5
TBS Triumph FPV Antenna With Male RP-SMA Connector - Image 6
SKU: DRFC-2212
📋 GST Invoice Available

TBS Triumph FPV Antenna With Male RP-SMA Connector

₹439.00 (Inclusive of all taxes)
Out of Stock

The TBS Triumph FPV Antenna clone is a 5.8GHz RHCP antenna designed for robust FPV video transmission, featuring a male RP-SMA connector for direct compatibility with VTXs and goggles.

Features

  • 5.8GHz RHCP antenna optimized for FPV video transmission (5500-6000 MHz).
  • Male RP-SMA connector for direct attachment to VTXs and video receivers.

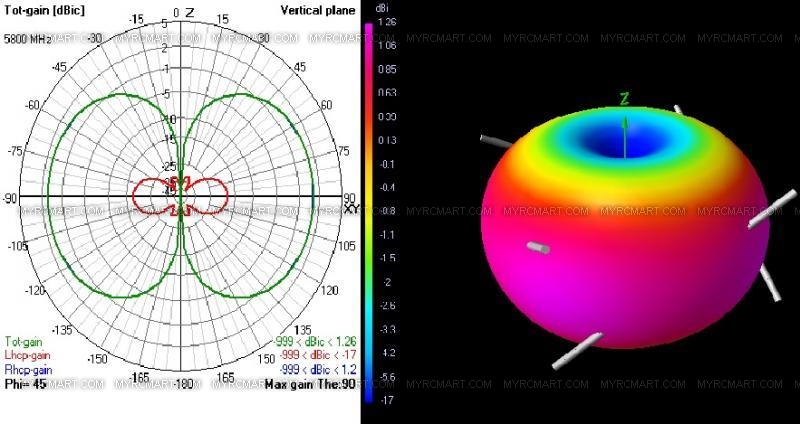

  • 1.26 dBic gain and 0.74 axial ratio for stable, clear signal reception.
  • Durable double-jacket semi-rigid cable and impact-resistant foam-infused cover.
  • Compact 82mm length and lightweight design for minimal airframe interference.

Out of stock

Description

This high-quality clone of the TBS Triumph antenna delivers reliable 5.8GHz circular polarized performance for FPV pilots. Its design prioritizes durability with a double-jacket semi-rigid cable and tin-plated connectors to withstand crashes and repeated use.

The ultrasonic-welded, foam-infused cover provides superior impact protection while maintaining a low-profile form factor. Engineered for a broad frequency range, it ensures consistent video link quality across common FPV channels.

Key Features

  • RHCP (Right-Hand Circular Polarization) for reduced multi-path interference and improved signal clarity.
  • Male RP-SMA connector ensures secure, direct mating with female RP-SMA ports on VTXs and goggles.
  • Heavy-duty double-jacket semi-rigid coaxial cable enhances durability against bending and impact.
  • Foam-infused, ultrasonically welded outer cover offers superior crash protection and weather resistance.
  • Optimized 1.26 dBic gain and 0.74 axial ratio provide a balanced blend of range and signal integrity.
  • Compact 82mm length and minimal weight reduce drag and balance issues on lightweight FPV builds.

Applications

  • Replacement antenna for 5.8GHz FPV video transmitters (VTX) on racing and freestyle drones.
  • Upgrade antenna for FPV goggles or ground station receivers to improve video reception.
  • Lightweight antenna solution for micro and whoop-class drones requiring a durable, low-profile RHCP antenna.
  • General-purpose 5.8GHz video link antenna for long-range and cinematic FPV drone builds.

Technical Specifications

Item TypeAntenna
Connector TypeRP-SMA
Connector GenderMale
Frequency Range5.5 - 6 GHz (5500 - 6000 MHz)
PolarizationRHCP
Gain1.26 dBic
Axial Ratio0.74
Length82 mm

Frequently Asked Questions

What is the connector type and gender on this antenna?

This antenna features a male RP-SMA connector. It is designed to screw directly into the female RP-SMA port commonly found on FPV video transmitters (VTXs) and many video receivers or goggles.

What is the frequency range and polarization of this antenna?

The antenna operates across the 5.8GHz FPV band (5500-6000 MHz) and uses Right-Hand Circular Polarization (RHCP). RHCP helps reject multipath interference and is the standard for most FPV video systems to maintain a cleaner signal.

How durable is this TBS Triumph antenna clone?

It is built for durability with a double-jacket semi-rigid coaxial cable and an ultrasonically welded, foam-infused outer cover. This construction provides excellent resistance to impacts, crashes, and general wear encountered in FPV flying.

Package Includes

  • 1 x TBS Triumph RHCP FPV Antenna with Male RP-SMA Connector

Additional Information

Weight 0.04 kg
Dimensions 10 × 3 × 3 cm
